Antenna Feeder No. 2 Inspection

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Sunroof seaming welt (with sunroof system) (See SUNROOF UNIT REMOVAL/INSTALLATION .)
    2. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
    3. Sunvisor (See SUNVISOR REMOVAL/INSTALLATION .)
    4. Front map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION .)
    5. Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION .)
    6. Selector lever knob (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    7. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    8. Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
    9. Front console (See FRONT CONSOLE REMOVAL/INSTALLATION .)
    10. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    11. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
    12. Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    13. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    14. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    15. Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    16. Hood release lever (See HOOD RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION .)
    17. Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION .)
    18. Driver-side lower panel (See DRIVER-SIDE LOWER PANEL REMOVAL/INSTALLATION .)
    19. Passenger-side lower panel (See PASSENGER-SIDE LOWER PANEL REMOVAL/INSTALLATION .)
    20. B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION .)
    21. Adjust anchor cover on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
    22. Upper anchor installation bolt on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
    23. B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION .)
    24. Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION .)
    25. Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION .)
    26. Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION .)
    27. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
    28. Third-row seat cushion (See THIRD-ROW SEAT CUSHION REMOVAL/INSTALLATION .)
    29. Third-row seat back component (See THIRD-ROW SEAT BACK COMPONENT REMOVAL/INSTALLATION .)
    30. Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
    31. D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION .)
    32. Adjust anchor cover on the second-row seat belt (See SECOND-ROW SEAT BELT REMOVAL/INSTALLATION .)
    33. Upper anchor installation bolt on the second-row seat belt (See SECOND-ROW SEAT BELT REMOVAL/INSTALLATION .)
    34. C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
    35. Headliner (See HEADLINER REMOVAL/INSTALLATION .)
  3. Disconnect antenna feeder No. 1.
    Fig 1: Disconnecting Antenna Feeder No. 2
    G11430956Courtesy of MAZDA MOTORS CORP.
  4. Disconnect center roof antenna side connector.

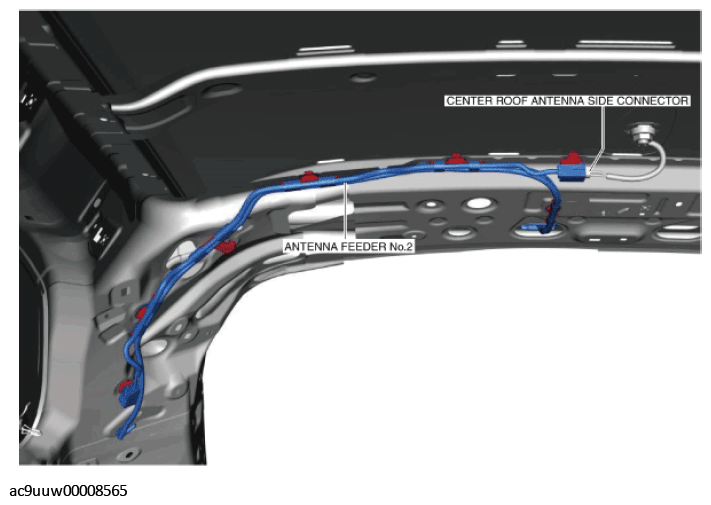

    Fig 2: Center Roof Antenna Side Connector And Antenna Feeder No. 2
    G11430964Courtesy of MAZDA MOTORS CORP.
  5. Verify that the continuity between antenna feeder No. 2 terminals is as indicated in the table.
    Fig 3: Checking Continuity Between Antenna Feeder No. 2 Terminals
    G11430965Courtesy of MAZDA MOTORS CORP.
    Fig 4: Antenna Feeder No. 2 Terminals Continuity Chart
    G11430966Courtesy of MAZDA MOTORS CORP.
