SUNVISOR Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the screw.

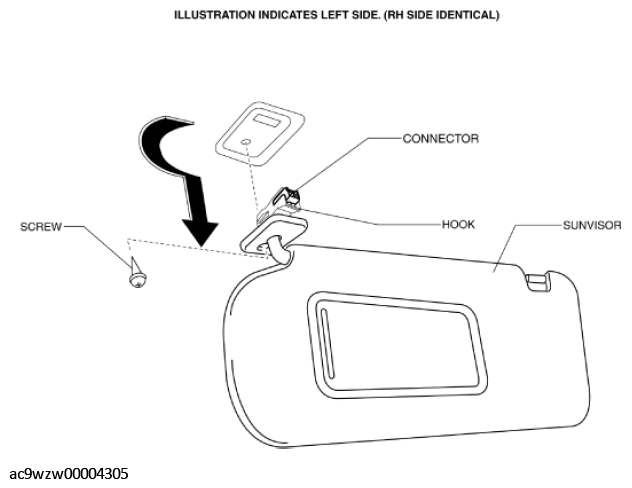

    Fig 1: Removing Sunvisor
    G11435028Courtesy of MAZDA MOTORS CORP.
  3. Remove the sunvisor in the direction of the arrow shown in the figure while detaching hook.
  4. Disconnect the vanity mirror illumination connector (with vanity mirror illumination).
  5. Press the center adaptor tabs in the direction of the arrow (1) shown in the figure using two remover tool.

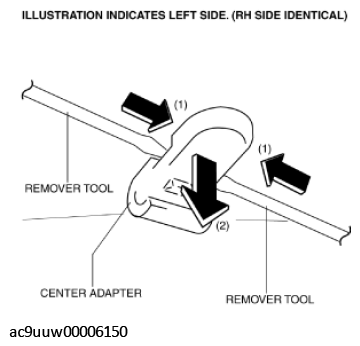

    Fig 2: Pressing Center Adaptor Tabs
    G11435029Courtesy of MAZDA MOTORS CORP.
  6. Remove the center adaptor in the direction of the arrow (2) shown in the figure.
  7. Install in the reverse order of removal.
