Antenna Feeder No. 2 Removal/Installation

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the following parts:
1. Sunroof seaming welt (with sunroof system) (See SUNROOF UNIT REMOVAL/INSTALLATION .)
2. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
3. Sunvisor (See SUNVISOR REMOVAL/INSTALLATION .)
4. Front map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION .)
5. Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION .)
6. Selector lever knob (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
7. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
8. Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
9. Front console (See FRONT CONSOLE REMOVAL/INSTALLATION .)
10. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
11. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
12. Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
13. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
14. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
15. Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
16. Hood release lever (See HOOD RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION .)
17. Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION .)
18. Driver-side lower panel (See DRIVER-SIDE LOWER PANEL REMOVAL/INSTALLATION .)
19. Passenger-side lower panel (See PASSENGER-SIDE LOWER PANEL REMOVAL/INSTALLATION .)
20. B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION .)
21. Adjust anchor cover on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
22. Upper anchor installation bolt on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
23. B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION .)
24. Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION .)
25. Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION .)
26. Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION .)
27. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
28. Third-row seat cushion (See THIRD-ROW SEAT CUSHION REMOVAL/INSTALLATION .)
29. Third-row seat back component (See THIRD-ROW SEAT BACK COMPONENT REMOVAL/INSTALLATION .)
30. Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
31. D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION .)
32. Adjust anchor cover on the second-row seat belt (See SECOND-ROW SEAT BELT REMOVAL/INSTALLATION .)
33. Upper anchor installation bolt on the second-row seat belt (See SECOND-ROW SEAT BELT REMOVAL/INSTALLATION .)
34. C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
35. Headliner (See HEADLINER REMOVAL/INSTALLATION .)
Disconnect the connector.

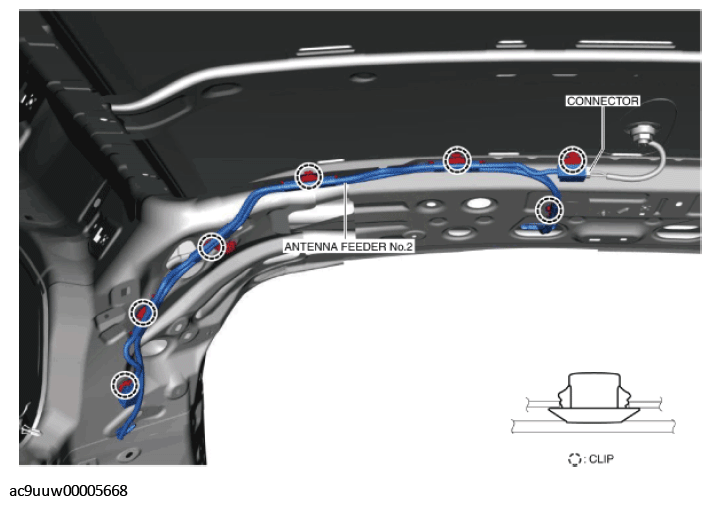

Fig 1: Antenna Feeder No. 2 And Connector With Clips
Courtesy of MAZDA MOTORS CORP.
Remove the clips in the positions shown in the figure.
Partially peel the liftgate grommet in the direction of the arrows shown in the figure, and remove the liftgate grommet from the inner liftgate grommet.

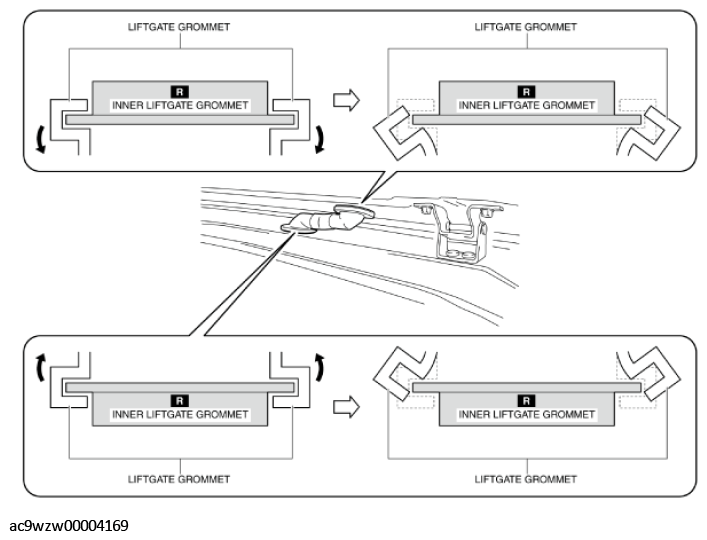

Fig 2: Peeling Liftgate Grommet
Courtesy of MAZDA MOTORS CORP.
While pressing the inner liftgate grommet tab in the direction of arrow (1) using a remover tool, move the inner liftgate grommet in the direction of arrow (2) and remove it from the liftgate.

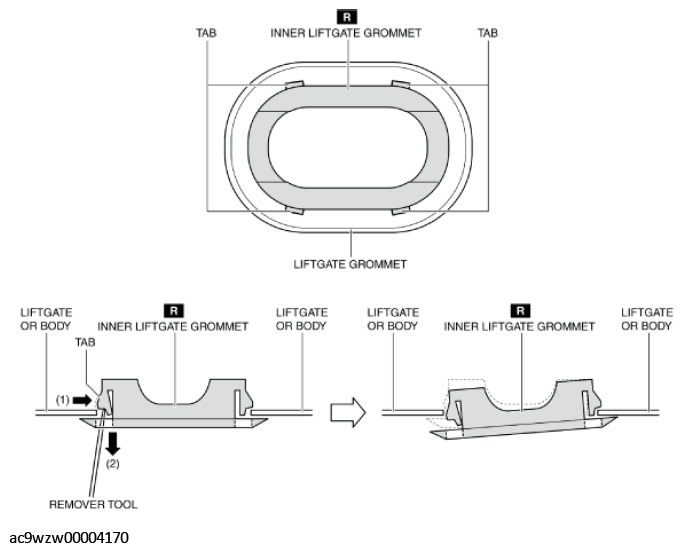

Fig 3: Pressing Inner Liftgate Grommet Tab
Courtesy of MAZDA MOTORS CORP.
Move antenna feeder No. 2 in the direction of the arrow shown in the figure and remove it in the direction towards the inside of the vehicle.

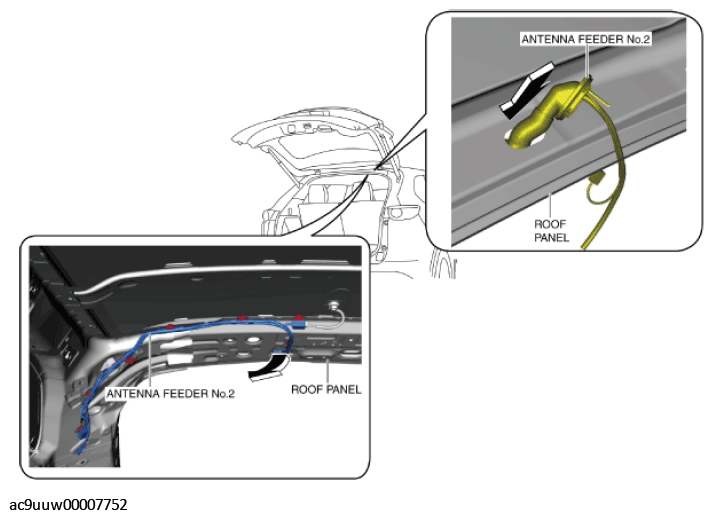

Fig 4: Moving Antenna Feeder No. 2
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
