C-Pillar Trim Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION .)
    2. Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION .)
    3. Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION .)
    4. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
    5. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    6. Third-row seat cushion (See THIRD-ROW SEAT CUSHION REMOVAL/INSTALLATION .)
    7. Third-row seat back component (See THIRD-ROW SEAT BACK COMPONENT REMOVAL/INSTALLATION .)
    8. Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
    9. D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION .)
    10. Adjust anchor cover on the second-row seat belt (See SECOND-ROW SEAT BELT REMOVAL/INSTALLATION .)
    11. Upper anchor installation bolt on the second-row seat belt (See SECOND-ROW SEAT BELT REMOVAL/INSTALLATION .)

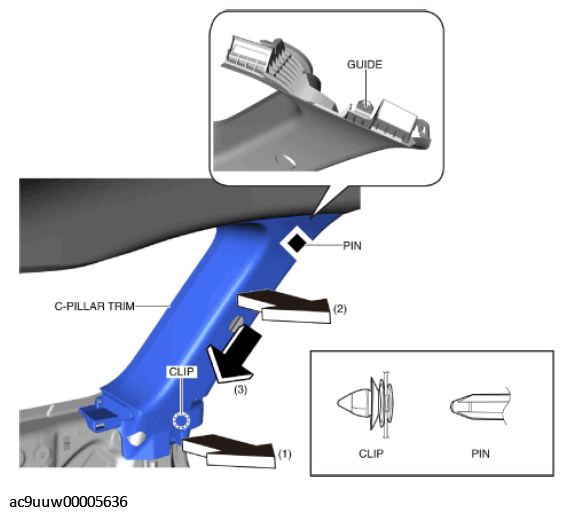

  3. Pull the C-pillar trim in the order of arrows (1) and (2) shown in the figure while detaching clip and pin.
    Fig 1: Pulling C-Pillar Trim
    G11434859Courtesy of MAZDA MOTORS CORP.
  4. Remove the C-pillar trim in the direction of the arrow (3) shown in the figure while detaching the guide.
  5. Install in the reverse order of removal.
