Trunk Covering Removal/Installation

  1. Remove the trunk covering in the direction of arrow shown in the figure.

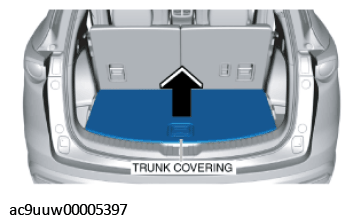

    Fig 1: Removing Trunk Covering
    G11435032Courtesy of MAZDA MOTORS CORP.
  2. Install in the reverse order of removal.
