Trunk Side Pocket Removal/Installation

  1. Remove the trunk covering. (See TRUNK COVERING REMOVAL/INSTALLATION .)
  2. Remove the trunk board. (See TRUNK BOARD REMOVAL/INSTALLATION .)
  3. Using the remover tool, remove the trunk side pocket (LH) in the direction of arrow shown in the figure while detaching the clips.

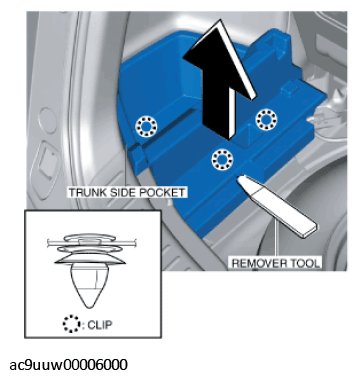

    Fig 1: Removing Trunk Side Pocket (LH) Using Remover Tool
    G11435035Courtesy of MAZDA MOTORS CORP.
  4. Remove the trunk side pocket (RH) in the direction of arrow shown in the figure.

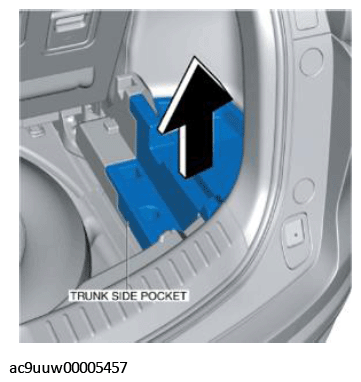

    Fig 2: Removing Trunk Side Pocket (RH)
    G11435036Courtesy of MAZDA MOTORS CORP.
  5. Using the remover tool, remove the trunk side bracket in the direction of arrow shown in the figure while detaching the clips.

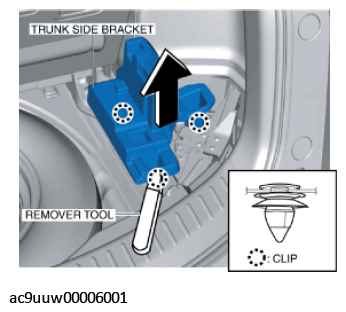

    Fig 3: Removing Trunk Side Bracket Using Remover Tool
    G11435037Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
