Passenger-Side Lower Panel Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Selector lever knob (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    2. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    3. Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
    4. Front console (See FRONT CONSOLE REMOVAL/INSTALLATION .)
    5. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    6. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
    7. Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    8. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    9. Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    10. Bonnet release lever (See HOOD RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION .)
    11. Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION .)
    12. Driver-side lower panel (See DRIVER-SIDE LOWER PANEL REMOVAL/INSTALLATION .)
  3. Partially peel back the seaming welt.

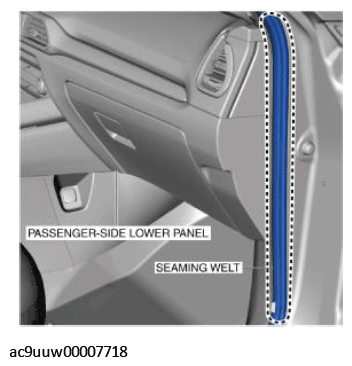

    Fig 1: Peeling Back Seaming Welt
    G11434984Courtesy of MAZDA MOTORS CORP.
  4. Remove the bolts.

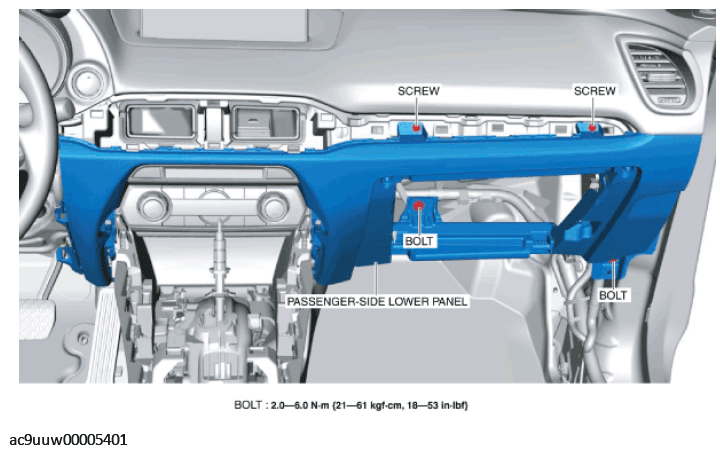

    Fig 2: Passenger-Side Lower Panel And Bolts With Torque Specification
    G11434985Courtesy of MAZDA MOTORS CORP.
  5. Remove the screws.
  6. Move the passenger-side lower panel in the order of arrows (1), (2), (3), (4), (5), (6) and (7) shown in the figure, and detach the clips A and clips B, hook, guides A and guides B from the dashboard.

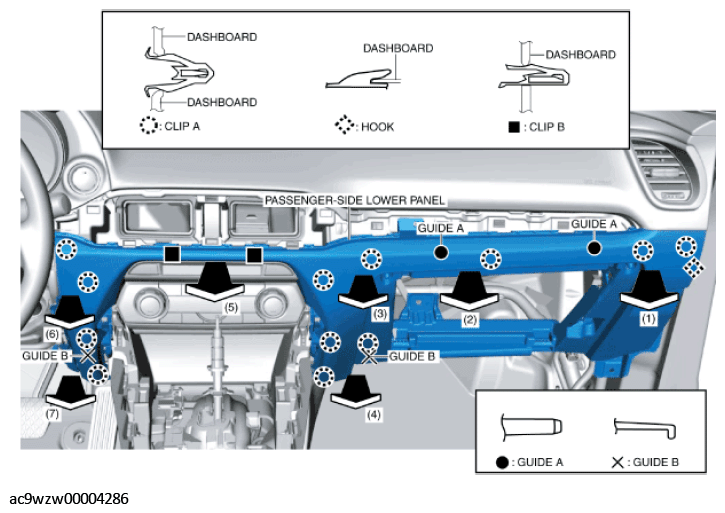

    Fig 3: Moving Passenger-Side Lower Panel
    G11434986Courtesy of MAZDA MOTORS CORP.
  7. Install in the reverse order of removal.
