Front Side Trim Removal/Installation

  1. Remove the front scuff plate. (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
  2. Partially peel back the seaming welt.

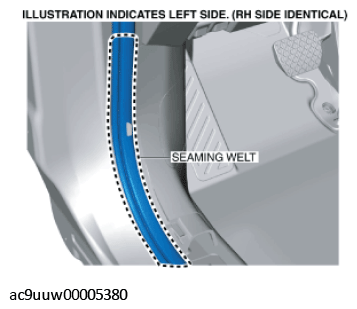

    Fig 1: Peeling Back Seaming Welt
    G11434943Courtesy of MAZDA MOTORS CORP.
  3. Remove the cap nut.

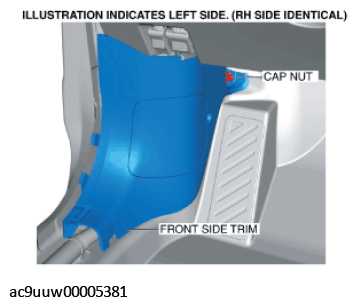

    Fig 2: Front Side Trim And Cap Nut
    G11434944Courtesy of MAZDA MOTORS CORP.
  4. Pull the front side trim out of the stud bolt.

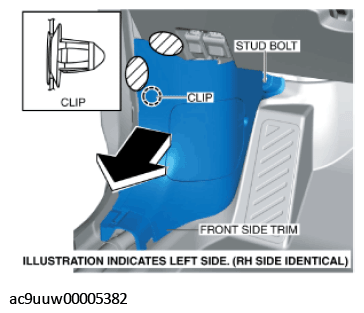

    Fig 3: Pulling Front Side Trim Out Of Stud Bolt
    G11434945Courtesy of MAZDA MOTORS CORP.
  5. Hold the shaded area shown in the figure, move the front side trim in the direction of the arrow, and detach the clip.
  6. Remove the front side trim.
  7. Install in the reverse order of removal.
