Trunk Side Trim Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION .)
    2. Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION .)
    3. Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION .)
    4. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
    5. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    6. Third-row seat cushion (See THIRD-ROW SEAT CUSHION REMOVAL/INSTALLATION .)
    7. Third-row seat back component (See THIRD-ROW SEAT BACK COMPONENT REMOVAL/INSTALLATION .)
  3. Partially peel back the seaming welt.

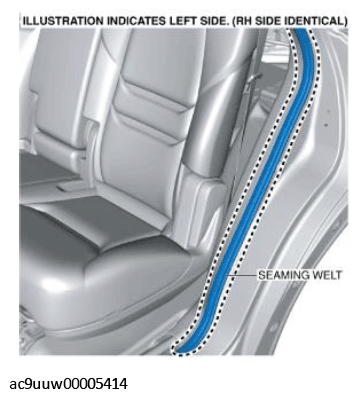

    Fig 1: Peeling Back Seaming Welt
    G11435038Courtesy of MAZDA MOTORS CORP.
  4. Slide the second-row seat forward.
  5. Partially peel back the weather strip.

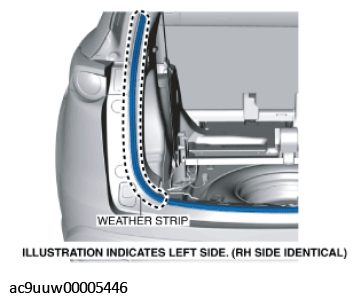

    Fig 2: Peeling Back Weather Strip
    G11435039Courtesy of MAZDA MOTORS CORP.
  6. Remove the fastener.

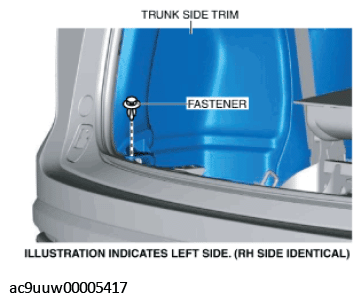

    Fig 3: Trunk Side Trim And Fastener
    G11435040Courtesy of MAZDA MOTORS CORP.
  7. Remove the service hole covers.

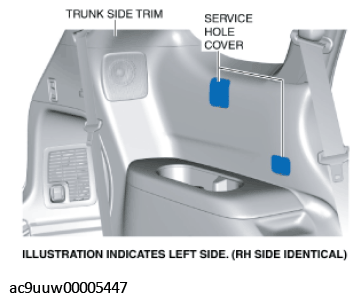

    Fig 4: Trunk Side Trim And Service Hole Covers
    G11435041Courtesy of MAZDA MOTORS CORP.
  8. Remove the screws.

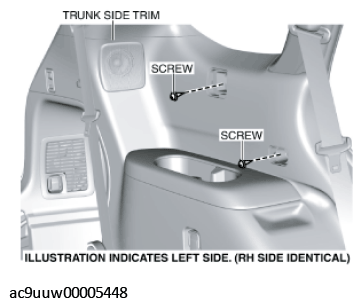

    Fig 5: Trunk Side Trim And Screws
    G11435042Courtesy of MAZDA MOTORS CORP.
  9. Affix protective tape to the position shown in the figure.

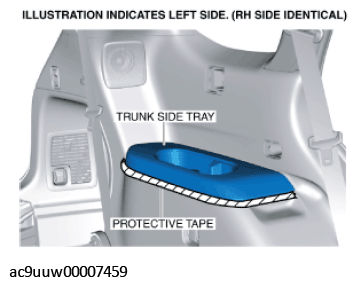

    Fig 6: Affixing Protective Tape To Trunk Side Tray
    G11435043Courtesy of MAZDA MOTORS CORP.
  10. Using the remover tool, remove the trunk side tray in the direction of arrow shown in the figure while detaching the clip A, clips B.

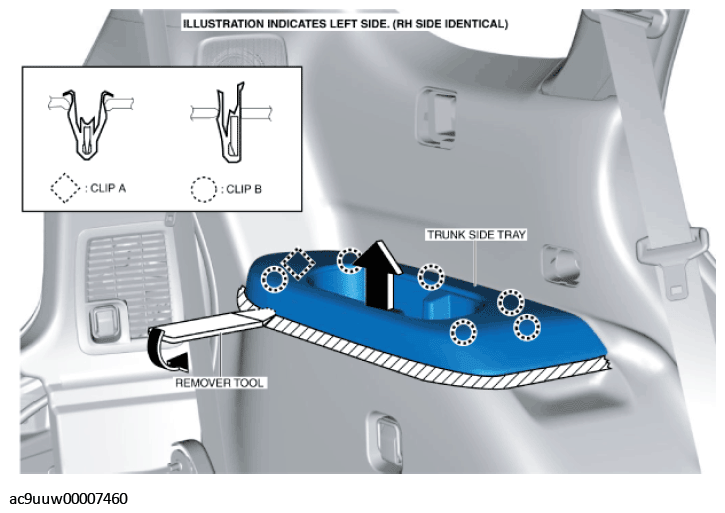

    Fig 7: Removing Trunk Side Tray In Using Remover Tool
    G11435044Courtesy of MAZDA MOTORS CORP.
  11. Pull the cover in the direction the of arrow shown in the figure.

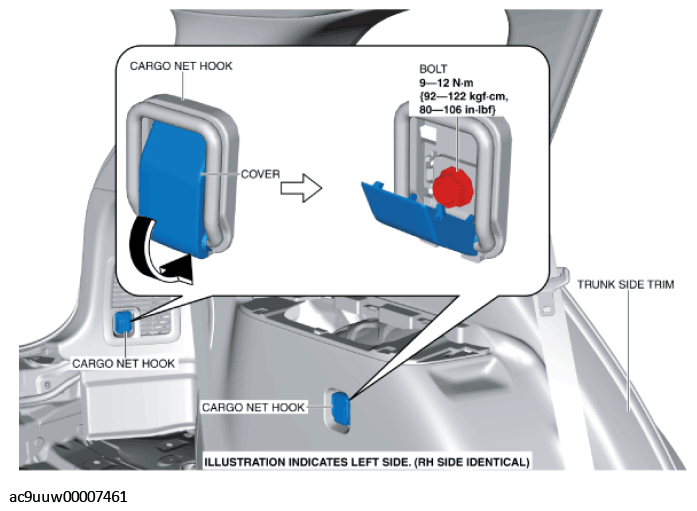

    Fig 8: Pulling Cover
    G11435045Courtesy of MAZDA MOTORS CORP.
  12. Remove the bolts, then remove the cargo net hooks.
  13. Remove the bolt, then remove the cargo net hook.

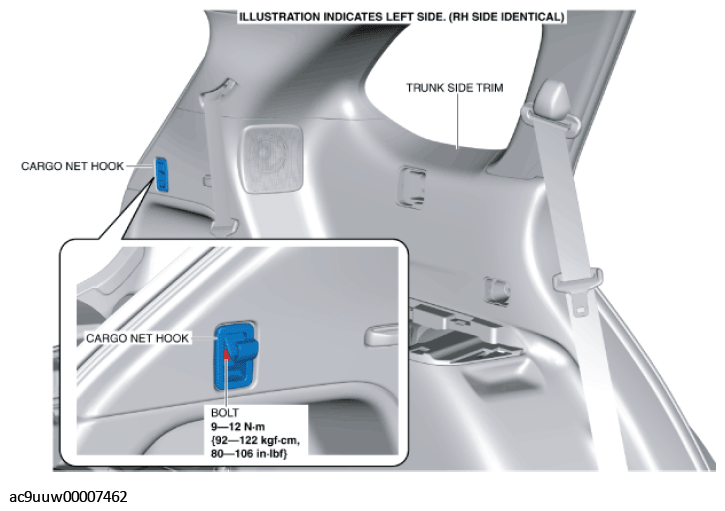

    Fig 9: Trunk Side Trim, Cargo Net Hook And Bolt With Torque Specification
    G11435046Courtesy of MAZDA MOTORS CORP.
  14. Pull the trunk side trim in the direction of the arrow in the order of (1), (2), (3), (4), (5) and remove it while detaching clips, hooks.

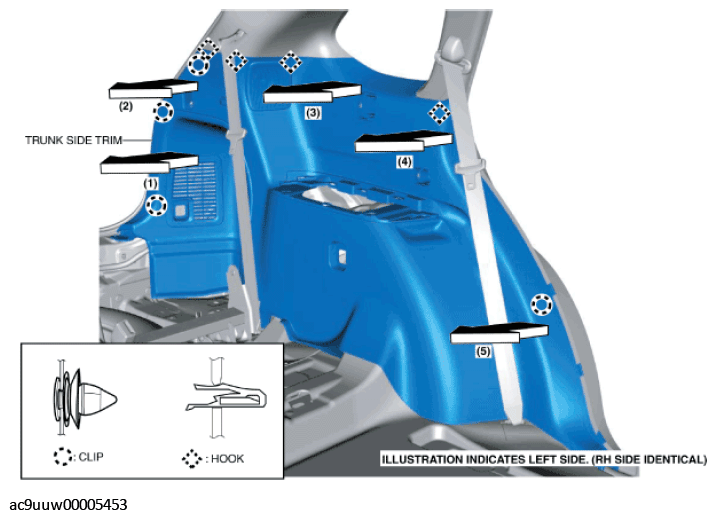

    Fig 10: Pulling Trunk Side Trim
    G11435047Courtesy of MAZDA MOTORS CORP.
  15. Disconnect the accessory socket connector. (RH only)
  16. Disconnect the rear side speaker connector. (with rear side speaker)
  17. Remove the trunk side trim.
  18. Install in the reverse order of removal.
