Trunk Board Removal/Installation

  1. Remove the trunk covering. (See TRUNK COVERING REMOVAL/INSTALLATION .)
  2. Remove the trunk board No. 1 in the direction of arrow shown in the figure.

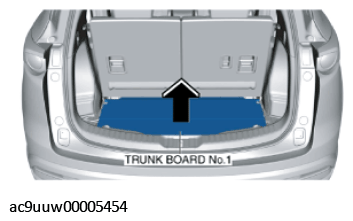

    Fig 1: Removing Trunk Board No. 1
    G11435030Courtesy of MAZDA MOTORS CORP.
  3. Remove the trunk board No. 2 in the direction of arrow shown in the figure.

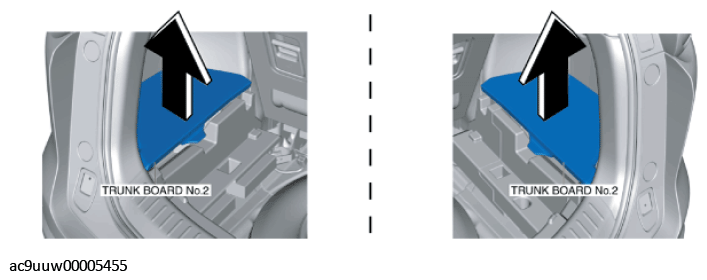

    Fig 2: Removing Trunk Board No. 2
    G11435031Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
