With Electric Parking Brake

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

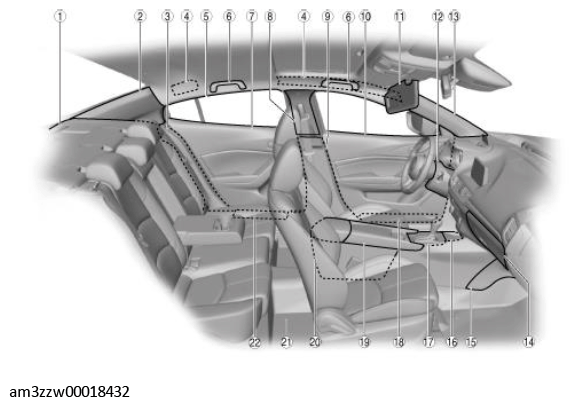

Fig 1: Interior Trim Parts Location - With Electric Parking Brake (1 Of 2)
G11449290Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 Rear package trim (Sedan (4SD))
(See REAR PACKAGE TRIM REMOVAL/INSTALLATION .)
2 C-piliar trim
(See C-PILLAR TRIM REMOVAL/INSTALLATION .)
3 Tire house trim
(See TIRE HOUSE TRIM REMOVAL/INSTALLATION .)
4 Shock absorbing pad
(See SHOCK ABSORBING PAD REMOVAL/INSTALLATION .)
5 Headliner
(See HEADLINER REMOVAL/INSTALLATION .)
6 Assist handle
(See ASSIST HANDLE REMOVAL/INSTALLATION .)
7 Rear door trim
(See REAR DOOR TRIM REMOVAL/INSTALLATION .)
(See REAR DOOR TRIM DISASSEMBLY/ASSEMBLY .)
8 B-pillar upper trim
(See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION .)
9 B-pillar lower trim
(See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION .)
10 Front door trim
(See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
(See FRONT DOOR TRIM DISASSEMBLY/ASSEMBLY .)
11 Sunvisor
(See SUNVISOR REMOVAL/INSTALLATION .)
12 Column cover
(See COLUMN COVER REMOVAL/INSTALLATION .)
13 A-pillar trim
(See A-PILLAR TRIM REMOVAL/INSTALLATION .)
14 Glove compartment
(See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
15 Side wall
(See SIDE WALL REMOVAL/INSTALLATION .)
16 Front console box
(See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
17 Shift panel
(See SHIFT PANEL REMOVAL/INSTALLATION .)
18 Front scuff plate
(See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
19 Upper panel
(See UPPER PANEL REMOVAL .)
(See UPPER PANEL INSTALLATION .)
(See UPPER PANEL DISASSEMBLY/ASSEMBLY .)
20 Rear console
(See REAR CONSOLE REMOVAL/INSTALLATION .)
(See REAR CONSOLE DISASSEMBLY/ASSEMBLY .)
(See CONSOLE LID REMOVAL/INSTALLATION .)
21 Floor covering
(See FLOOR COVERING REMOVAL/INSTALLATION .)
22 Rear scuff plate
(See REAR SCUFF PLATE REMOVAL/INSTALLATION .)

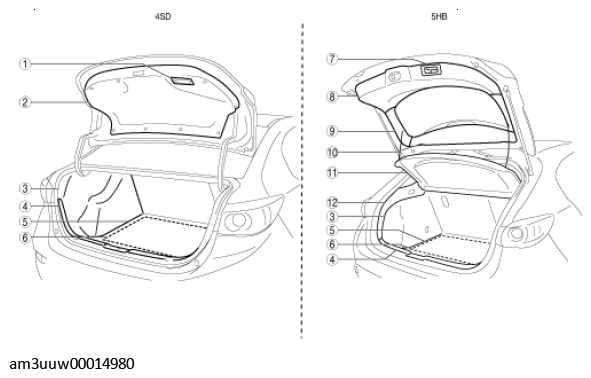

Fig 2: Interior Trim Parts Location - With Electric Parking Brake (2 Of 2)
G11449292Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 Trunk lid recess
(See TRUNK LID RECESS REMOVAL/INSTALLATION .)
2 Trunk lid trim
(See TRUNK LID TRIM REMOVAL/INSTALLATION .)
3 Trunk side trim
(See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
4 Trunk end trim
(See TRUNK END TRIM REMOVAL/INSTALLATION .)
5 Trunk covering
(See TRUNK COVERING REMOVAL/INSTALLATION .)
6 Trunk board
(See TRUNK BOARD REMOVAL/INSTALLATION .)
7 Liftgate recess
(See LIFTGATE RECESS REMOVAL/INSTALLATION .)
8 Liftgate lower trim
(See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION .)
9 Liftgate side trim
(See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION .)
10 Liftgate upper trim
(See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
11 Rear package tray
(See REAR PACKAGE TRAY REMOVAL/INSTALLATION .)
12 Trunk side upper trim
(See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION .)
