Rear Scuff Plate Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Hold area A shown in the figure, open the rear scuff plate in the direction of the arrow (1), move it in the direction of the arrow (2), and detach the tab A of the rear scuff plate from the inner panel.

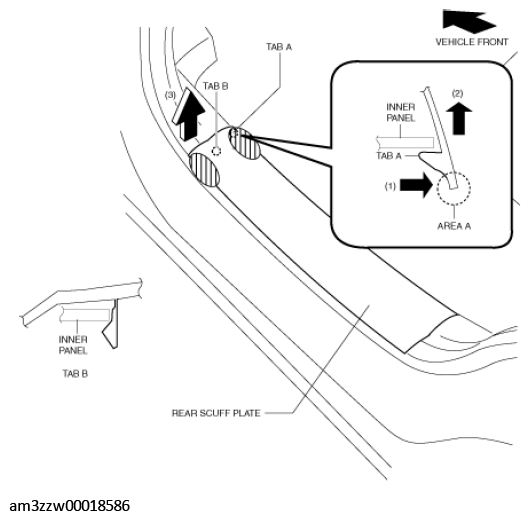

    Fig 1: Removing/Installing Rear Scuff Plate Parts
    G11449351Courtesy of MAZDA MOTORS CORP.
  2. Hold the shaded area shown in the figure, move the rear scuff plate in the direction of arrow (3), and detach the tab B of the rear scuff plate from the inner panel.
  3. Hold the shaded area shown in the figure, move the rear scuff plate in the direction of the arrow (1), detach the clips from the inner plate, and pull out the pins.

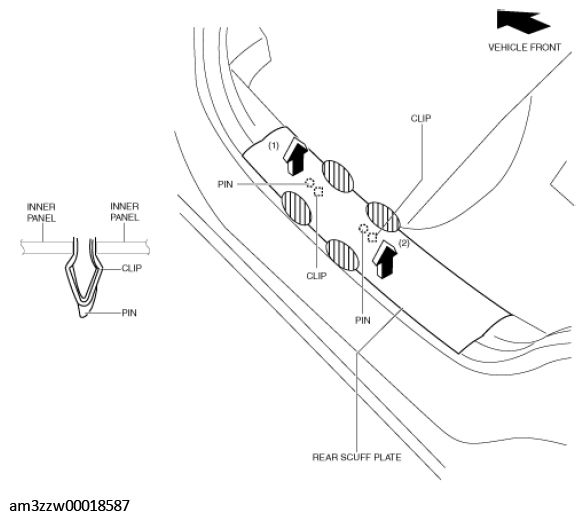

    Fig 2: Detaching Tab B Of Rear Scuff Plate From Inner Panel
    G11449352Courtesy of MAZDA MOTORS CORP.
  4. Hold the shaded area shown in the figure, move the rear scuff plate in the direction of the arrow (2), detach the clips from the inner panel, and pull out the pins.
  5. Hold the shaded area shown in the figure, move the rear scuff plate in the direction of arrow the (1) and detach the tab B of the rear scuff plate from the inner panel.

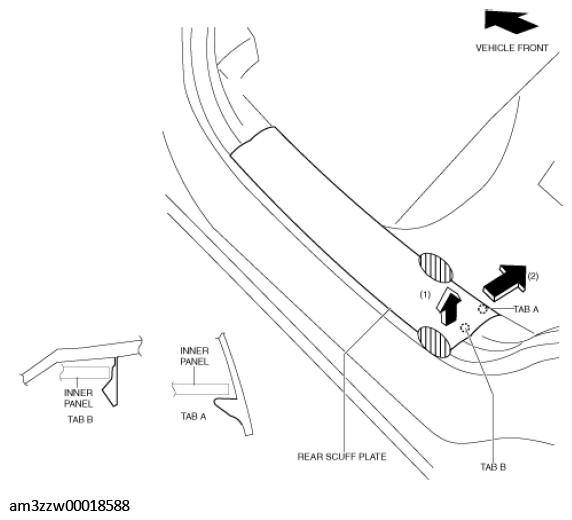

    Fig 3: Detaching Rear Scuff Plate Tab B From Inner Panel
    G11449353Courtesy of MAZDA MOTORS CORP.
  6. Press the rear scuff plate in the direction of the arrow (2) shown in the figure and detach the tab A of the rear scuff plate from the inner panel.
  7. Remove the rear scuff plate.
  8. Install in the reverse order of removal.
