Liftgate Upper Trim Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Take the shaded area shown in the figure, detach the tab while pulling the liftgate upper trim in the direction of the arrow (1) shown in the figure, then detach the clip A and clip B while pulling in the direction of the arrow (2).

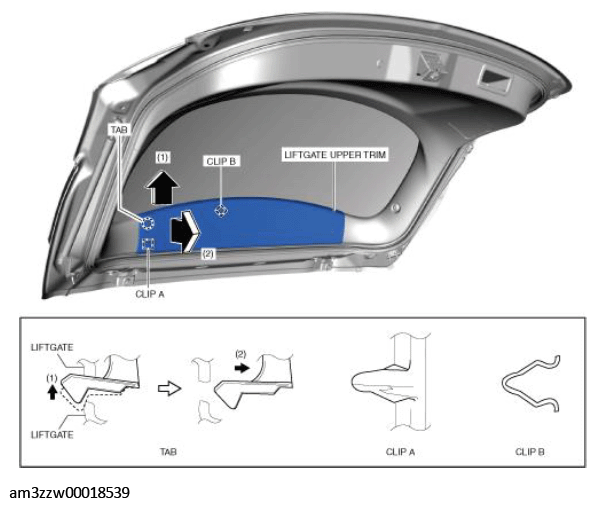

    Fig 1: Detaching Clip A And Clip B
    G11449309Courtesy of MAZDA MOTORS CORP.
  2. Take the shaded area shown in the figure, detach the tab while pulling the liftgate upper trim in the direction of the arrow (1) shown in the figure, then detach the clip A, clip B and pin while pulling in the direction of the arrow (2).

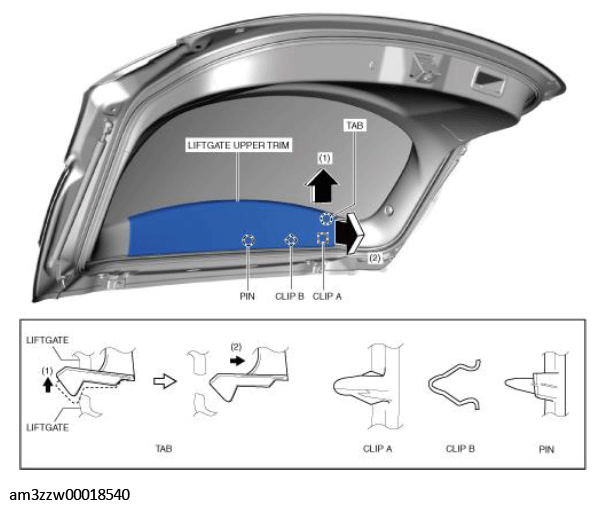

    Fig 2: Detaching Tab
    G11449310Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
