Front Scuff Plate Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Hold area A shown in the figure, open the front scuff plate in the direction of the arrow (1), move it in the direction of the arrow (2), and detach the tab A of the front scuff plate from the inner panel.

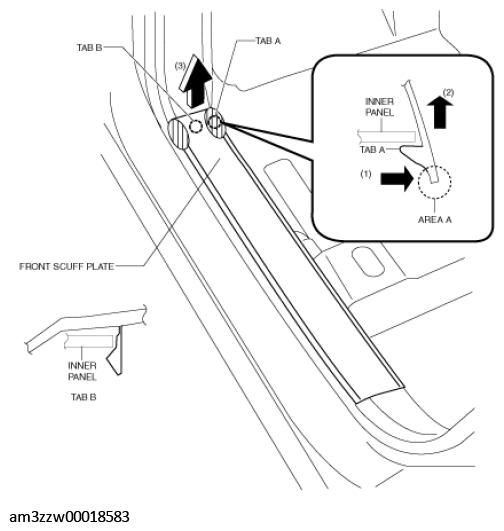

    Fig 1: Detaching Tab A Of Front Scuff Plate From Inner Panel
    G11449273Courtesy of MAZDA MOTORS CORP.
  2. Hold the shaded area shown in the figure, move the front scuff plate in the direction of the arrow (3), and detach the tab B of the front scuff plate from the inner panel.
  3. Hold area A shown in the figure, open the front scuff plate in the direction of the arrow (1), move it in the direction of the arrow (2), and detach the tab A of the front scuff plate from the inner panel.

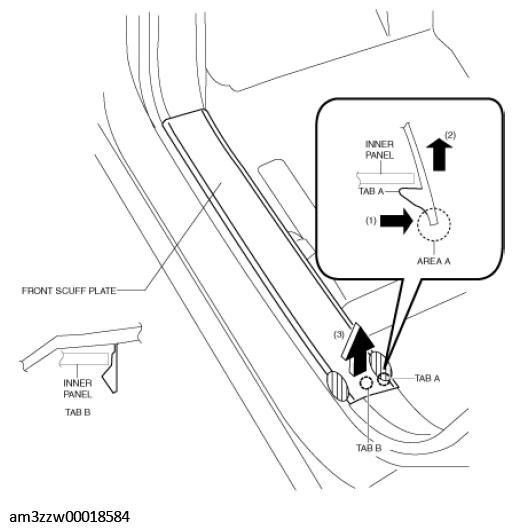

    Fig 2: Moving Front Scuff Plate
    G11449274Courtesy of MAZDA MOTORS CORP.
  4. Hold the shaded area shown in the figure, move the front scuff plate in the direction of the arrow (3), and detach the tab B of the front scuff plate from the inner panel.
  5. Hold the shaded area shown in the figure, move the front scuff plate in the direction of the arrow (1), and detach the clips from the inner panel.

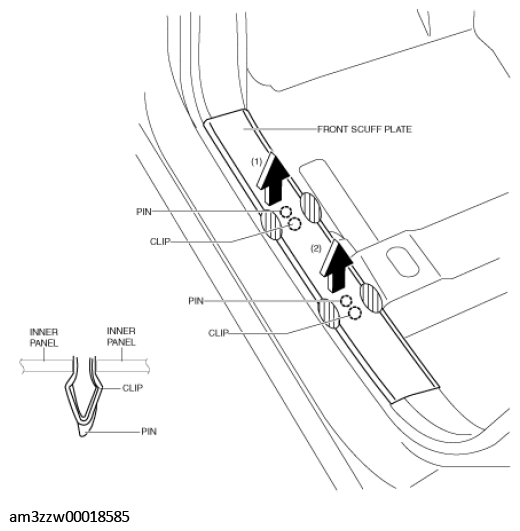

    Fig 3: Detaching Clips From Inner Panel
    G11449275Courtesy of MAZDA MOTORS CORP.
  6. Hold the shaded area shown in the figure, move the front scuff plate in the direction of the arrow (2), and detach the clips from the inner panel.
  7. Pull out the pins and remove the front scuff plate.
  8. Install in the reverse order of removal.
