Rear Package Tray Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Move the hooks in the direction of the arrows shown in the figure to disengage them from the strap hangers.

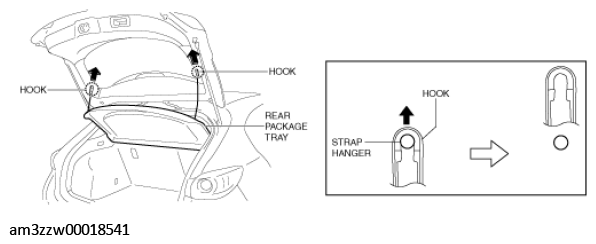

    Fig 1: Moving Rear Package Tray Hooks
    G11449346Courtesy of MAZDA MOTORS CORP.
  2. Hold the shaded area shown in the figure, pull out the rear package tray in the order of arrows (1) and (2), and remove the pins from the rear package tray.

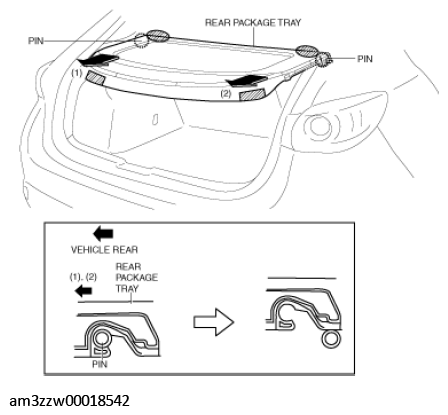

    Fig 2: Removing Pins From Rear Package Tray
    G11449347Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
