Trunk Lid Recess Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. While pressing the trunk lid recess in the direction of the arrows (1) shown in the figure, move the trunk lid recess in the direction of the arrow (2), and detach the trunk lid recess tabs from the trunk lid.

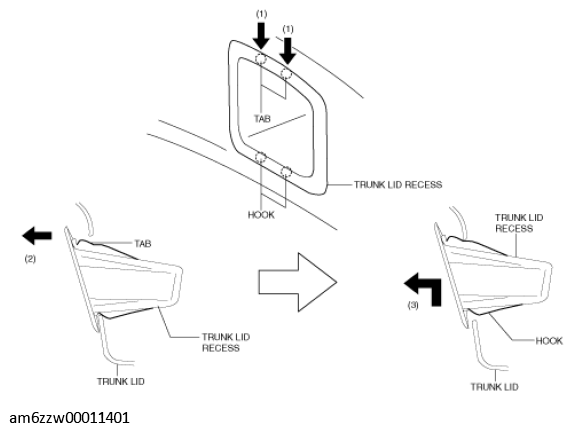

    Fig 1: Pressing Trunk Lid Recess
    G11449408Courtesy of MAZDA MOTORS CORP.
  2. Remove the trunk lid recess in the direction of the arrow (3) shown in the figure avoiding the hooks.
  3. Install in the reverse order of removal.
