B-Pillar Lower Trim Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front scuff plate. (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
Remove the rear scuff plate. (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
Partially peel back the seaming welt.
Grasp the shaded areas shown in the figure, and pull the B-pillar lower trim in the direction of the arrow in the order of (1), (2) while detaching the hooks and pins A.

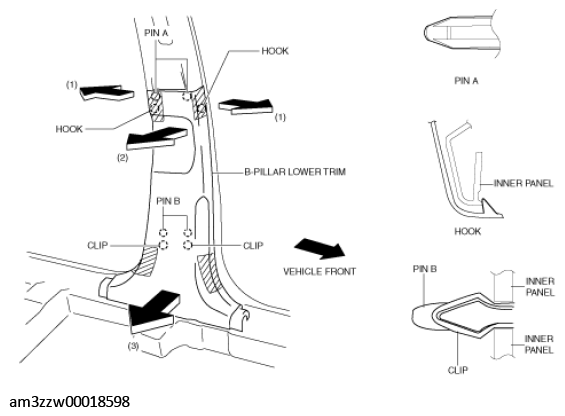

Fig 1: Detaching Hooks And Pins A
Courtesy of MAZDA MOTORS CORP.
Grasp the shaded area shown in the figure, and pull the B-pillar lower trim in the direction of the arrow (3) while detaching the clips and pins B.
Install in the reverse order of removal.
