Front Door Trim Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the inner handle cover while detaching the tabs and pin.

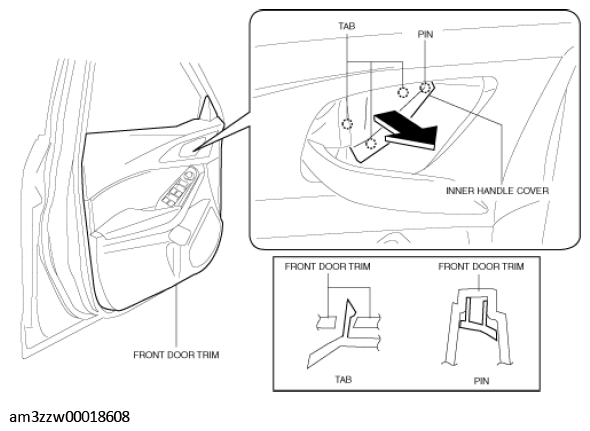

    Fig 1: Detaching Tabs And Pin
    G11449268Courtesy of MAZDA MOTORS CORP.
  3. Remove the screw.
    Fig 2: Removing Screw
    G11449269Courtesy of MAZDA MOTORS CORP.
  4. Remove the cover, then remove the screw.

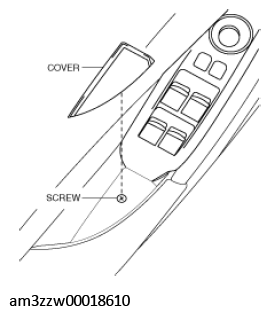

    Fig 3: Removing Cover
    G11449270Courtesy of MAZDA MOTORS CORP.
  5. Grasp the shaded area shown in the figure, and pull the front door trim in the direction of the arrow in the order of (1), (2), (3) and (4) while detaching the clips, hook and pin.
    CAUTION:
    • If the front door trim is removed in the same way as past vehicles by pulling it upward, it could damage the clips and pin. When removing the front door trim, always pull it in the direction of the arrow shown in the figure.

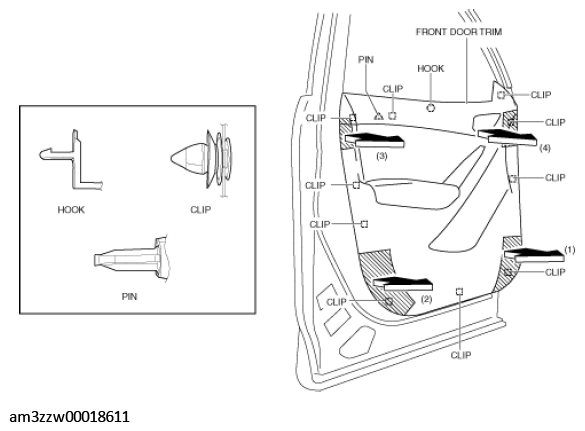

    Fig 4: Pulling Front Door Trim
    G11449271Courtesy of MAZDA MOTORS CORP.
  6. Remove the tab A in the direction of the arrow (1) shown in the figure.

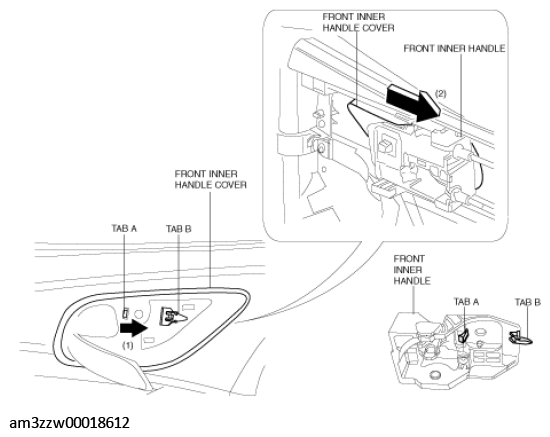

    Fig 5: Removing Tab A
    G11449272Courtesy of MAZDA MOTORS CORP.
  7. Remove the front inner handle in the direction of the arrow (2) shown in the figure while detaching the tab B.
  8. Disconnect the power window main switch connector (driver-side) or power window subswitch connector (passenger-side).
  9. Install in the reverse order of removal.
