Rear Package Trim Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
    3. Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION .)
    4. Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION .)
    5. C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
    6. High-mount brake light (See HIGH-MOUNT BRAKE LIGHT REMOVAL/INSTALLATION .)
  3. Remove the fasteners.

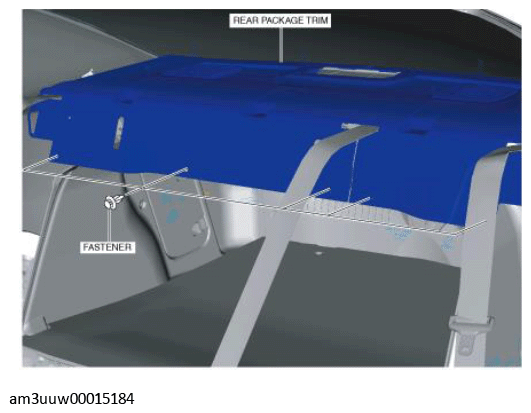

    Fig 1: Removing/Installing Rear Package Trim With Fasteners
    G11449348Courtesy of MAZDA MOTORS CORP.
  4. Remove the clips and pin.

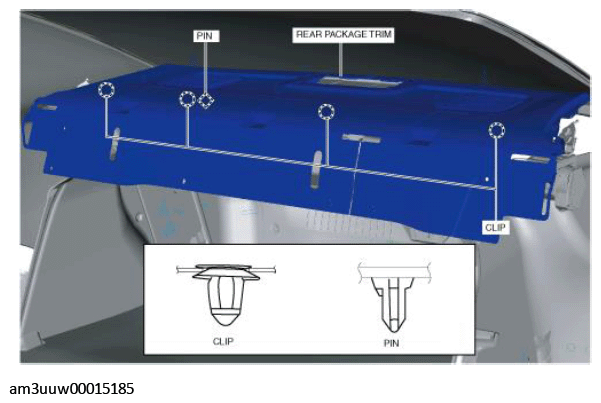

    Fig 2: Rear Package Trim Clips And Pin Location
    G11449349Courtesy of MAZDA MOTORS CORP.
  5. Pull up the rear package trim in the direction of the arrow (1) shown in the figure while remove the hooks, pull the rear package trim in the direction of the arrow (2), and remove it.

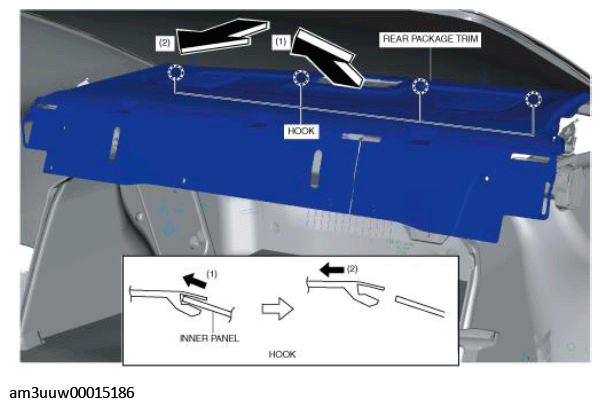

    Fig 3: Pulling Up Rear Package Trim
    G11449350Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
