A-Pillar Trim Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Partially peel back the seaming welt.
Grasp the shaded areas shown in the figure, and pull the A-pillar trim in the direction of the arrow while detaching the clips A and clip B.

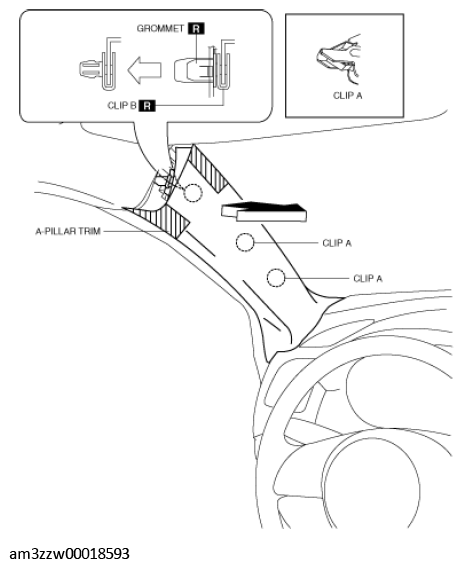

Fig 1: Pulling A-Pillar Trim
Courtesy of MAZDA MOTORS CORP.
Cut the lead wire connecting the clip B and the grommet using a nipper.

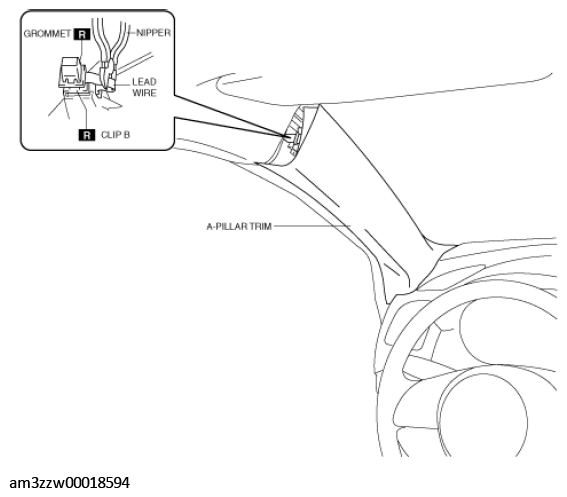

Fig 2: Cutting Lead Wire Connecting Clip B And Grommet
Courtesy of MAZDA MOTORS CORP.
Pull the A-pillar trim in the direction of the arrow and remove the A-pillar trim while detaching the guides.

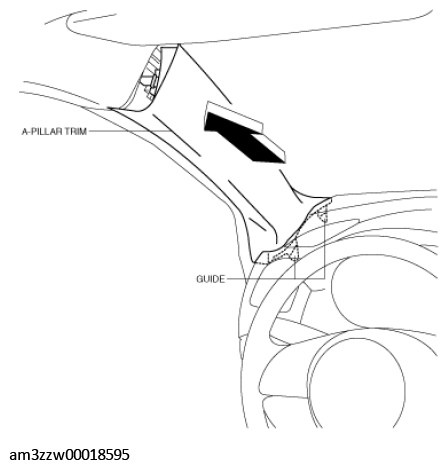

Fig 3: Removing A-Pillar Trim
Courtesy of MAZDA MOTORS CORP.
Move the hook in the direction of the arrow shown in the figure using a tape-wrapped flathead screwdriver and detach it from the front pillar inner panel.

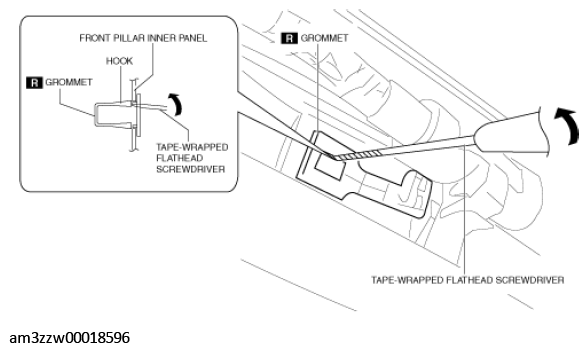

Fig 4: Moving Hook Using Tape-Wrapped Flathead Screwdriver
Courtesy of MAZDA MOTORS CORP.
Move the hook in the direction of the arrow (1) shown in the figure using a tape-wrapped flathead screwdriver and detach it from the front pillar inner panel.

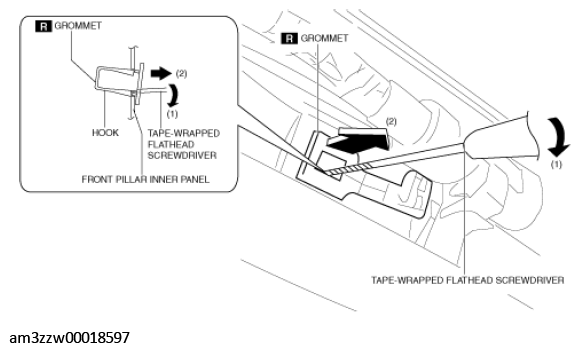

Fig 5: Moving A-Pillar Trim Hook
Courtesy of MAZDA MOTORS CORP.
Remove the grommet in the direction of the arrow (2) shown in the figure.
When installing the A-pillar trim, install new clip B and grommet to the A-pillar trim in advance.
Install in the reverse order of removal.
