Rear Door Trim Disassembly/Assembly

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disassemble in the order shown in the figure.

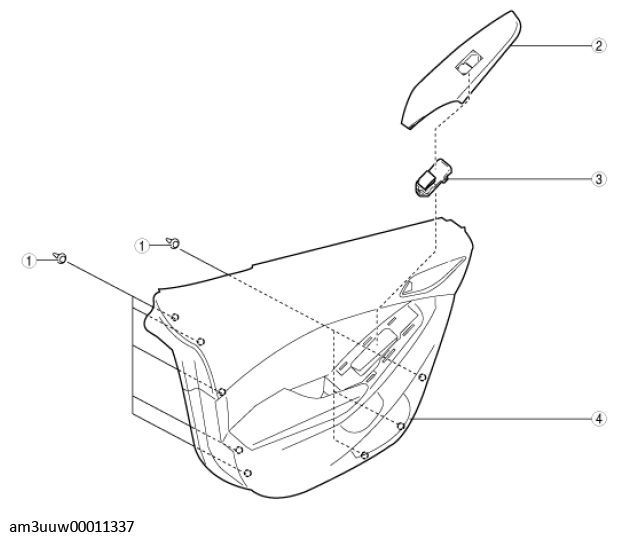

    Fig 1: Disassembling/Assembling Rear Door Trim Parts
    G11449340Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Fastener
    2 Switch panel cover
    (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION .)
    3 Power window subswitch
    (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION .)
    4 Rear door trim
  2. Assemble in the reverse order of disassembly.
