Trunk Side Upper Trim Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION .)
    2. Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION .)
    3. Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION .)
    4. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
  3. Move the tire house trim in the direction of the arrow shown in the figure and peel it back partially until the hooks and clip are detached.

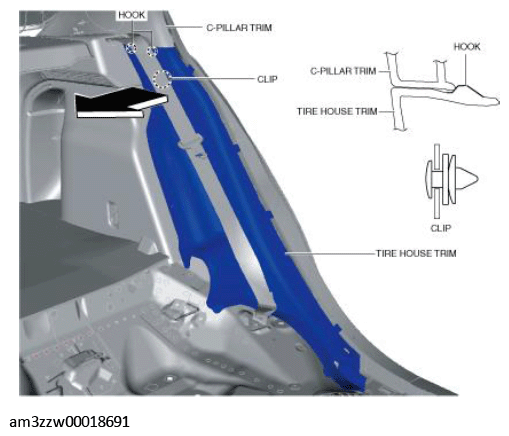

    Fig 1: Moving Tire House Trim
    G11449416Courtesy of MAZDA MOTORS CORP.
  4. Remove the fastener.

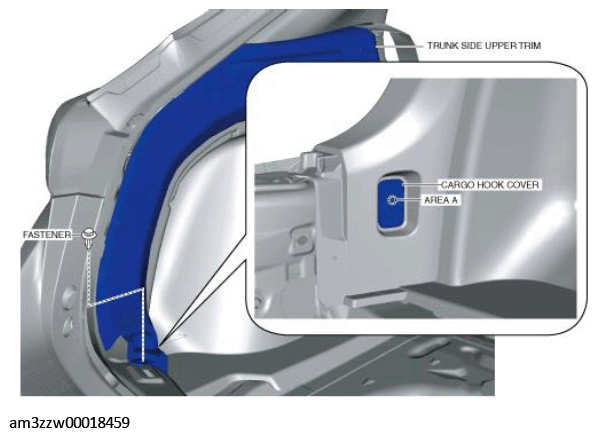

    Fig 2: Removing Fastener
    G11449417Courtesy of MAZDA MOTORS CORP.
  5. Pull out the area A of the cargo hook cover and remove the cargo hook cover.
  6. Partially peel back the seaming welt.
  7. Pull the trunk side upper trim in the direction of the arrow in the order of (1), (2), (3) and (4) and remove it while detaching the clips A, clips B and hooks.

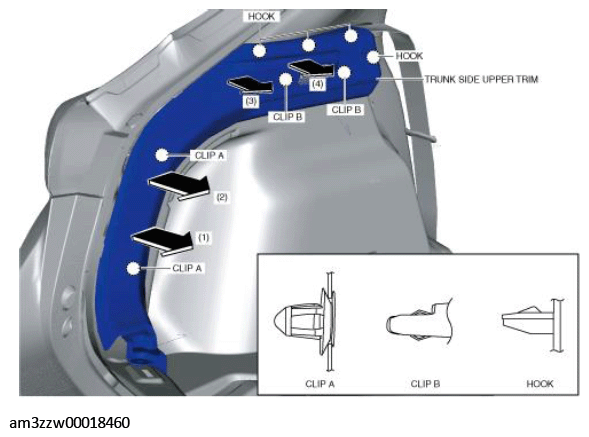

    Fig 3: Detaching Clips A, Clips B And Hooks
    G11449418Courtesy of MAZDA MOTORS CORP.
  8. Disconnect the cargo room light connector. (LH only)
  9. Install in the reverse order of removal.
