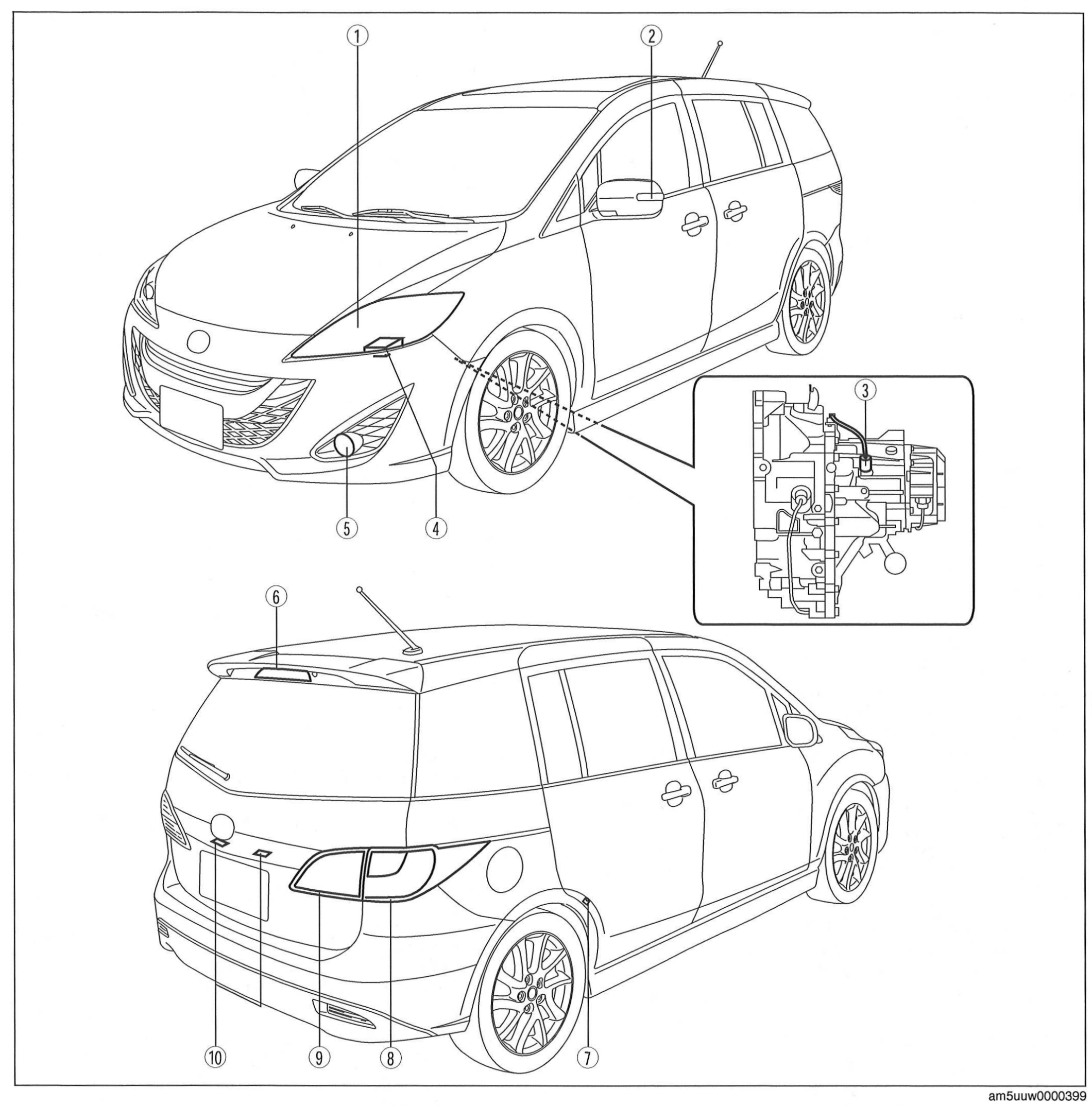

| 1 |
Front combination light
(See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION .)
(See DISCHARGE HEADLIGHT SERVICE WARNINGS .)
(See HEADLIGHT BULB REMOVAL/INSTALLATION .)
(See HEADLIGHT AIMING .)
(See PARKING/FRONT SIDE MARKER/FRONT TURN LIGHT BULB REMOVAL/INSTALLATION .) |
| 2 |
Side turn light
(See SIDE TURN LIGHT REMOVAL/INSTALLATION .)
(See SIDE TURN LIGHT INSPECTION .) |
| 3 |
Back-up light switch
(See BACK-UP LIGHT SWITCH INSPECTION .) |
| 4 |
Discharge headlight control module (with discharge headlight system)
(See DISCHARGE HEADLIGHT SERVICE WARNINGS .)
(See DISCHARGE HEADLIGHT CONTROL MODULE REMOVAL/INSTALLATION .)
(See DISCHARGE HEADLIGHT SYSTEM INSPECTION .) |
| 5 |
Front fog light
(See FRONT FOG LIGHT REMOVAL/INSTALLATION .)
(See FRONT FOG LIGHT BULB REMOVAL/INSTALLATION .)
(See FRONT FOG LIGHT AIMING .) |
| 6 |
High-mount brake light
(See HIGH-MOUNT BRAKE LIGHT REMOVAL/INSTALLATION .) |
| 7 |
Sliding door switch
(See SLIDING DOOR SWITCH REMOVAL/INSTALLATION .)
(See SLIDING DOOR SWITCH INSPECTION .) |
| 8 |
Rear combination light
(See REAR COMBINATION LIGHT REMOVAL/INSTALLATION .)
(See REAR TURN LIGHT BULB REMOVAL/INSTALLATION .)
(See BRAKE/TAILLIGHT BULB REMOVAL/INSTALLATION .) |
| 9 |
Liftgate light
(See LIFTGATE LIGHT REMOVAL/INSTALLATION .)
(See BACK-UP LIGHT BULB REMOVAL/INSTALLATION .) |
| 10 |
License plate light
(See LICENSE PLATE LIGHT REMOVAL/INSTALLATION .)
(See LICENSE PLATE LIGHT BULB REMOVAL/INSTALLATION .) |
