Sliding Door Switch Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the screw.

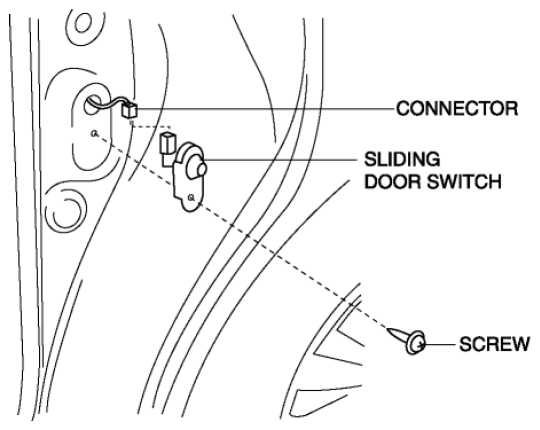

    Fig 1: Identifying Sliding Door Switch, Connector And Screw
    G08153377
  3. Remove the sliding door switch.
  4. Disconnect the connector.
  5. Install in the reverse order of removal.
