Parking/Front Side Marker/Front Turn Light Bulb Removal/Installation

  1. Disconnect the negative battery cable.
  2. Disconnect the connector.

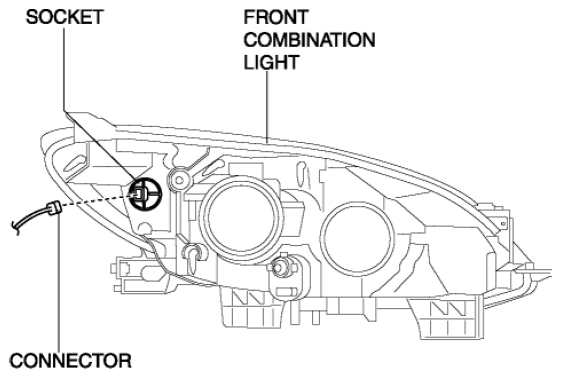

    Fig 1: Identifying Front Combination Light, Socket And Connector
    G08153313
  3. Rotate the socket in the direction of the arrow shown in the figure to remove it.

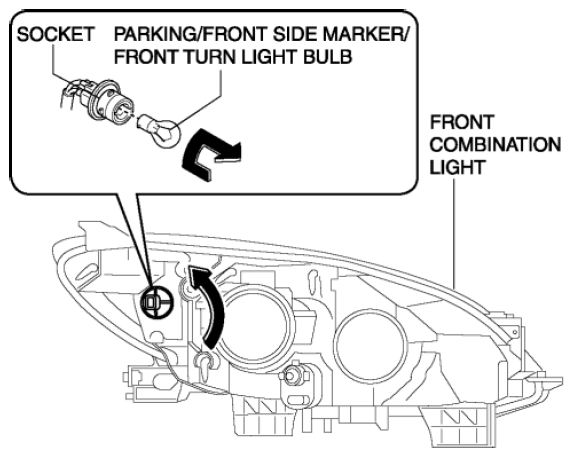

    Fig 2: Identifying Parking/Front Side Marker/Front Turn Light Bulb Rotating Direction
    G08153314
  4. Rotate the parking/front side marker/front turn light bulb in the direction of the arrow shown in the figure to remove it from the socket.
  5. Install in the reverse order of removal.
