License Plate Light Bulb Removal/Installation

  1. Disconnect the negative battery cable.
  2. Insert a tape-wrapped flathead screwdriver in the position shown in the figure and detach the tab by prying it in the direction of the arrow.

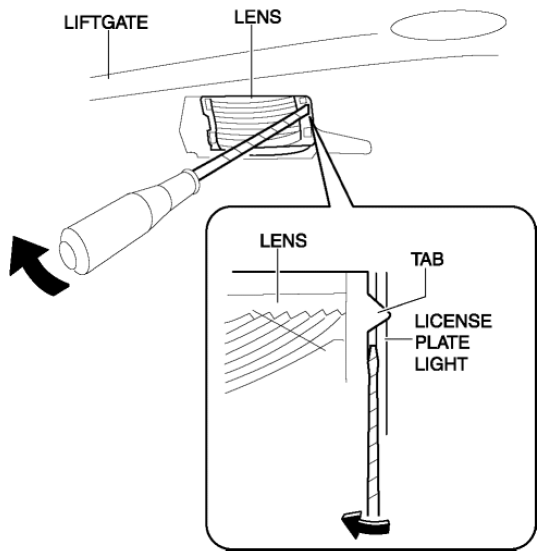

    Fig 1: Inserting Tape-Wrapped Flathead Screwdriver In Position
    G08153343
  3. Remove the lens.

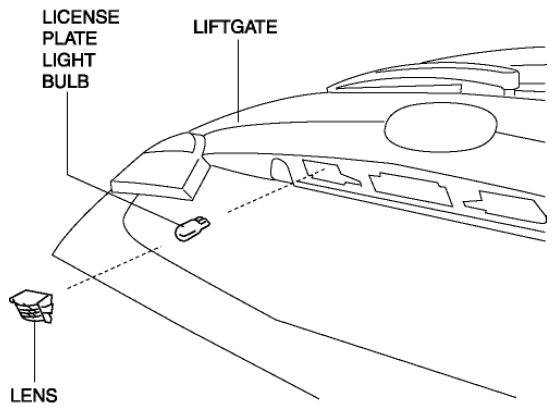

    Fig 2: Identifying Liftgate, Lens And License Plate Light Bulb
    G08153344
  4. Remove the license plate light bulb.
  5. Install in the reverse order of removal.
