Rear Turn Light Bulb Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the rear combination light. (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION .)
  3. Remove the rear turn light bulb from the socket.

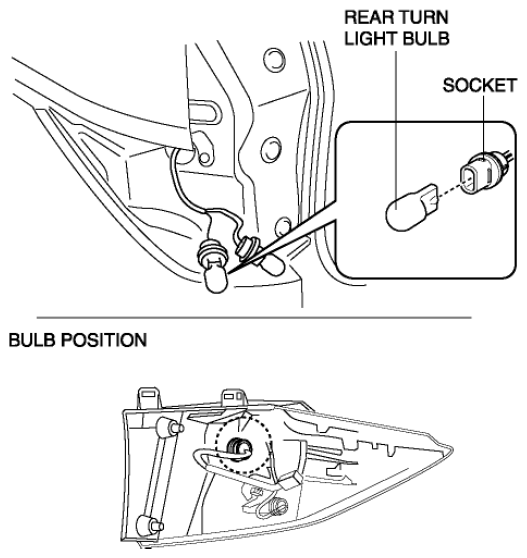

    Fig 1: Identifying Rear Turn Light Bulb And Socket
    G08153332
  4. Install in the reverse order of removal.
