Side Turn Light Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the outer mirror glass. (See OUTER MIRROR GLASS REMOVAL .)
  3. Remove the outer mirror garnish. (See OUTER MIRROR GARNISH REMOVAL/INSTALLATION .)
  4. Remove the screws.

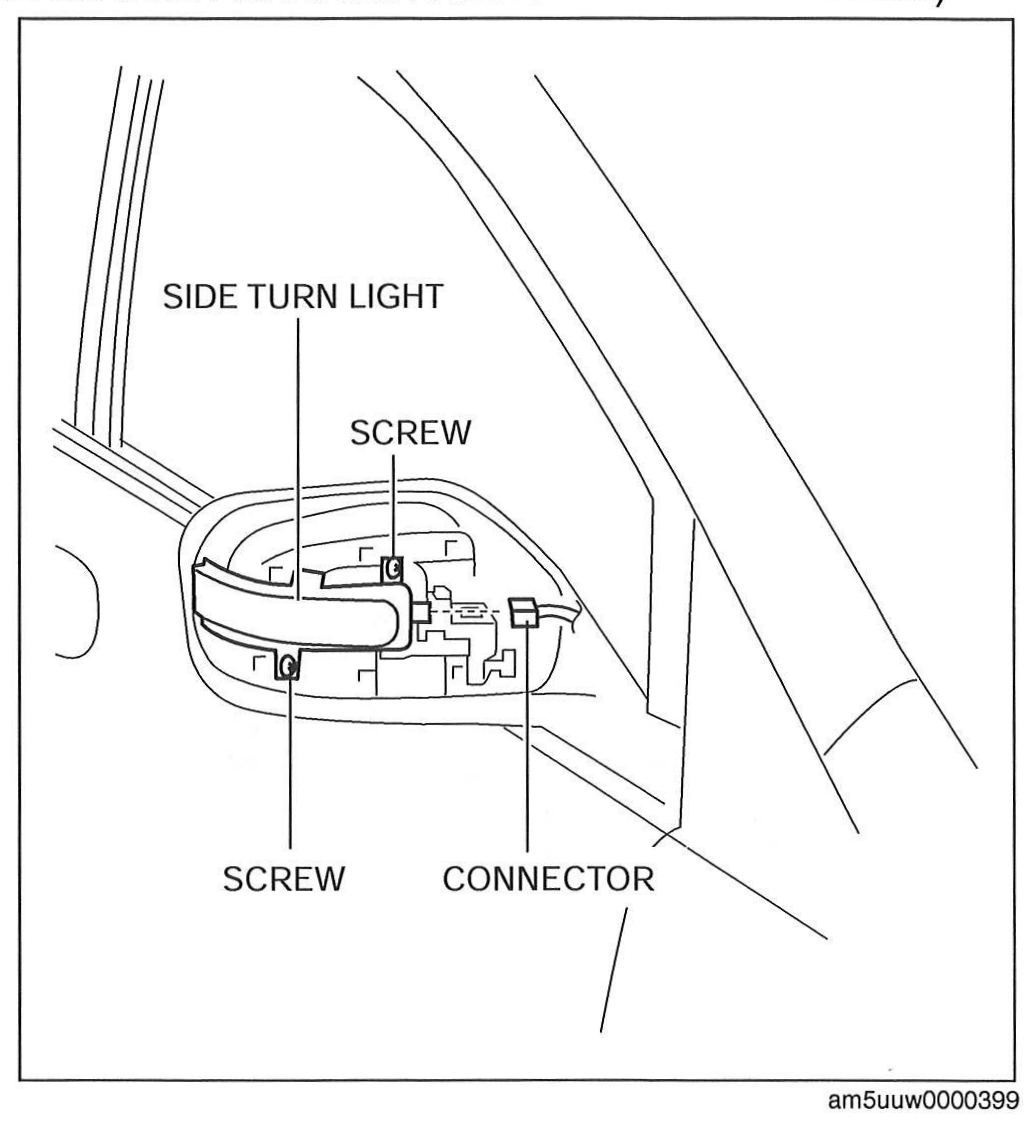

    Fig 1: Identifying Side Turn Light Connector And Screws
    G00535427Courtesy of MAZDA MOTORS CORP.
  5. Disconnect the connector.
  6. Remove the side turn light.
  7. Install in the reverse order of removal.
