Back-Up Light Bulb Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the service hole cover.

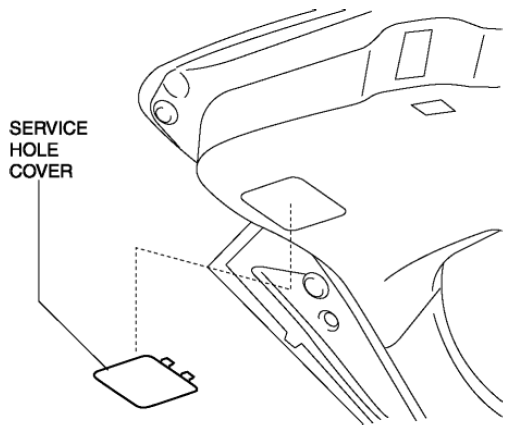

    Fig 1: Identifying Service Hole Cover
    G08153334
  3. Disconnect the connector.

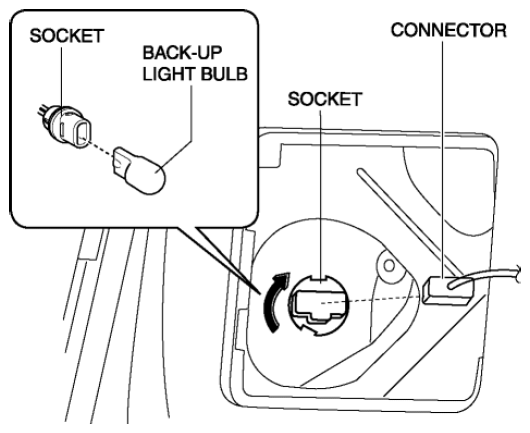

    Fig 2: Identifying Socket Rotating Direction, Back-Up Light Bulb And Socket
    G08153335
  4. Rotate the socket in the direction of the arrow shown in the figure to remove it.
  5. Remove the back-up light bulb from the socket.
  6. Install in the reverse order of removal.
