High-Mount Brake Light Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
  3. Pull the high-mount brake light in the direction of the arrow (2) shown in the figure and remove it while detaching tabs A and tabs B in the direction of the arrow (1).

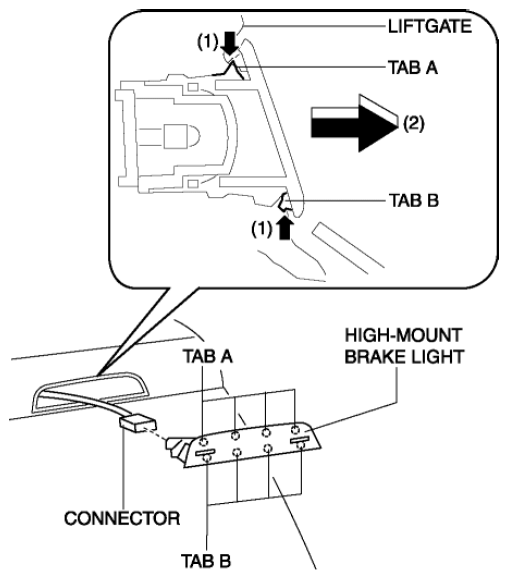

    Fig 1: Identifying Tabs A And Tabs B Detaching Direction
    G08153340
  4. Disconnect the connector.
  5. Install in the reverse order of removal.
