License Plate Light Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the following parts:
    1. Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
    2. Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION .)
    3. Liftgate recess (See LIFTGATE RECESS REMOVAL/INSTALLATION .)
    4. Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION .)
  3. Disconnect the connector.

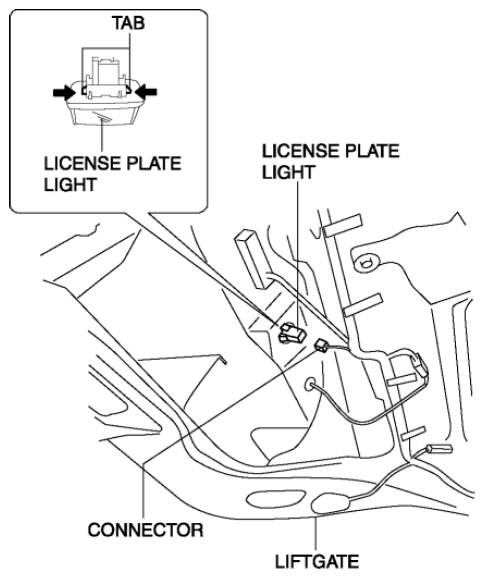

    Fig 1: Identifying License Plate Light Connector Tabs Releasing Direction
    G08153341
  4. Release the tabs in the direction of arrow shown in the figure.
  5. Remove the license plate light.

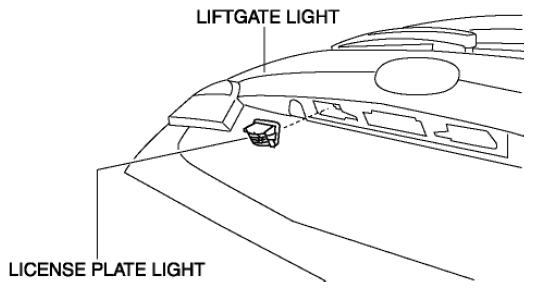

    Fig 2: Identifying License Plate Light
    G08153342
  6. Install in the reverse order of removal.
