Front Fog Light Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION .)
  3. Disconnect the connector.

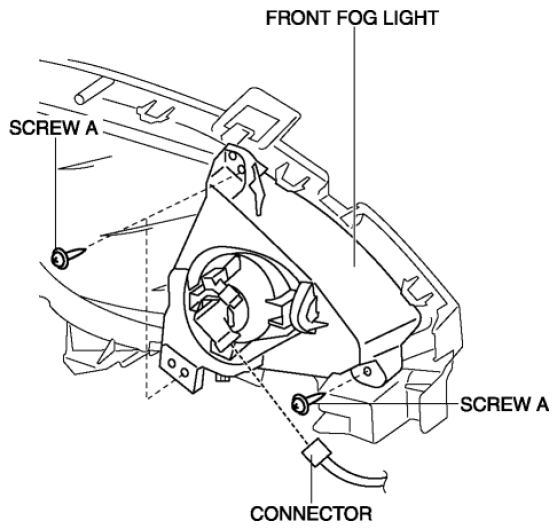

    Fig 1: Identifying Front Fog Light, Connector And Screw A
    G08153315
  4. Remove screw A.
  5. Remove screw B.

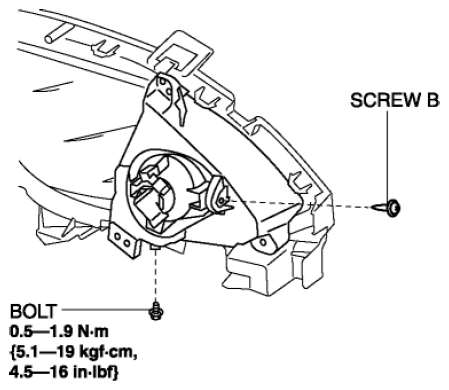

    Fig 2: Front Fog Light Screw B And Bolt With Torque Specifications
    G08153316
  6. Remove the bolt.
  7. Pull the front fog light in the direction of the arrow shown in the figure and remove it from the bracket.

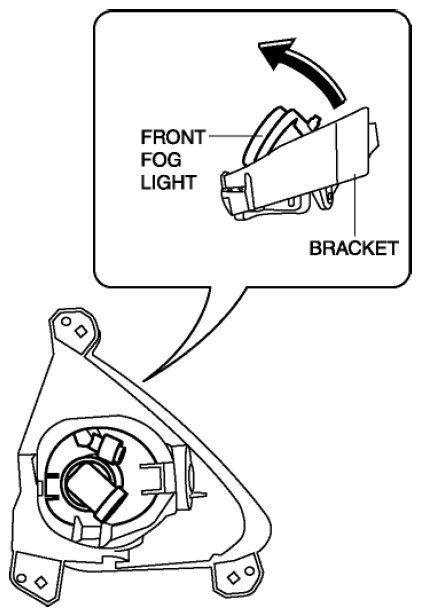

    Fig 3: Identifying Front Fog Light Pulling Direction
    G08153317
  8. Remove the front fog light.
  9. Install in the reverse order of removal.
  10. Adjust the front fog light aiming. (See FRONT FOG LIGHT AIMING .)
