Installation [09/2015 - ]: Procedure

  1. INSTALL IGNITION COIL ASSEMBLY

    Refer to PROCEDURE - Step 2

  2. INSTALL ENGINE COOLANT TEMPERATURE SENSOR

    Refer to PROCEDURE - Step 1

  3. INSTALL ENGINE OIL LEVEL SENSOR

    Refer to PROCEDURE - Step 1

  4. INSTALL WATER INLET HOUSING
    1. Install a new gasket and water inlet housing with the 3 bolts.

      Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

    2. Using needle-nose pliers, grip the claws of the clips and slide the clips to connect the water by-pass hoses and water inlet hose.
  5. INSTALL WATER PUMP PULLEY

    Refer to PROCEDURE - Step 2

  6. INSTALL NO. 1 IDLER PULLEY SUBASSEMBLY
    1. Install the No. 1 idler pulley SUBASSEMBLY with the bolt.

      Torque: 43 N*m (438 kgf*cm, 32 ft.*lbf)

      HINT:

      Install the No. 1 idler pulley SUBASSEMBLY in the direction shown in the illustration.

      GTY685922Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL NO. 2 IDLER PULLEY SUBASSEMBLY
    1. Install the No. 2 idler pulley SUBASSEMBLY with the bolt.

      Torque: 43 N*m (438 kgf*cm, 32 ft.*lbf)

  8. INSTALL KNOCK SENSOR

    Refer to PROCEDURE - Step 1

  9. INSTALL NO. 4 ENGINE COVER SUBASSEMBLY
    1. Install the No. 4 engine cover SUBASSEMBLY.
  10. INSTALL ENGINE WIRE

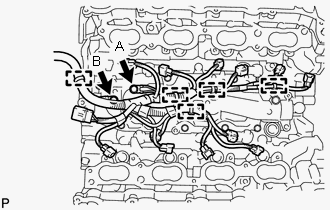

    1. GTY657953Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Install the engine wire with the 2 bolts.

      for bolt A

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

      for bolt B

      Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

    2. Connect the 4 knock sensor connectors and attach the 5 clamps.
  11. INSTALL SEPARATOR CASE

    Refer to PROCEDURE - Step 2

  12. INSTALL FUEL INJECTOR SEAL (for Direct Injection)

    Refer to PROCEDURE - Step 3

  13. INSTALL FUEL INJECTOR ASSEMBLY (for Direct Injection)

    Refer to PROCEDURE - Step 4

  14. INSTALL NO. 2 FUEL DELIVERY PIPE (for Direct Injection)

    Refer to PROCEDURE - Step 5

  15. INSTALL FUEL DELIVERY PIPE (for Direct Injection)

    Refer to PROCEDURE - Step 6

  16. INSTALL NO. 4 FUEL PIPE SUBASSEMBLY

    Refer to PROCEDURE - Step 8

  17. INSTALL NO. 2 ENGINE COVER SUBASSEMBLY LH
  18. INSTALL NO. 2 ENGINE COVER SUBASSEMBLY
  19. INSTALL NO. 1 ENGINE COVER SUBASSEMBLY
  20. INSTALL FUEL INJECTOR ASSEMBLY (for Port Injection)

    Refer to PROCEDURE - Step 1

  21. INSTALL FUEL DELIVERY PIPE (for Port Injection)

    Refer to PROCEDURE - Step 2

  22. INSTALL FUEL PUMP ASSEMBLY (for Bank 1)

    Refer to PROCEDURE - Step 1

  23. INSTALL NO. 3 FUEL PIPE SUBASSEMBLY

    Refer to PROCEDURE - Step 2

  24. INSTALL ENGINE COVER SUBASSEMBLY (for Bank 1)

    Refer to PROCEDURE - Step 3

  25. INSTALL FUEL PUMP ASSEMBLY (for Bank 2)

    Refer to PROCEDURE - Step 4

  26. INSTALL NO. 2 FUEL PIPE SUBASSEMBLY

    Refer to PROCEDURE - Step 5

  27. INSTALL ENGINE COVER SUBASSEMBLY (for Bank 2)

    Refer to PROCEDURE - Step 6

  28. INSTALL FUEL PRESSURE PULSATION DAMPER ASSEMBLY

    Refer to PROCEDURE - Step 1

  29. CONNECT FUEL TUBE SUBASSEMBLY

    Refer to PROCEDURE - Step 3

  30. INSTALL INTAKE MANIFOLD

    Refer to PROCEDURE - Step 1

  31. INSTALL THROTTLE BODY ASSEMBLY

    Refer to PROCEDURE - Step 1

  32. INSTALL VENTILATION HOSE
  33. INSTALL PURGE VSV

    Refer to PROCEDURE - Step 2

  34. INSTALL WATER BY-PASS PIPE SUBASSEMBLY

    Refer to PROCEDURE - Step 3

  35. INSTALL NO. 1 ENGINE COVER
    1. Install the No. 1 engine cover.
  36. INSTALL INJECTOR DRIVER

    Refer to PROCEDURE - Step 4

  37. INSTALL ENGINE WIRE

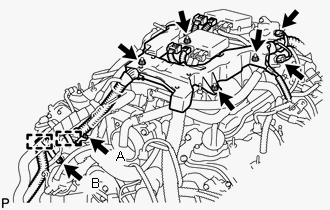

    1. GTY622668Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Install the engine wire with the 4 nuts.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

    2. Connect the 2 clamps and 2 clamp brackets with the 2 bolts.

      for bolt A

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

      for bolt B

      Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

    3. Connect the intake air control valve actuator connector.
    4. Connect the purge VSV connector.

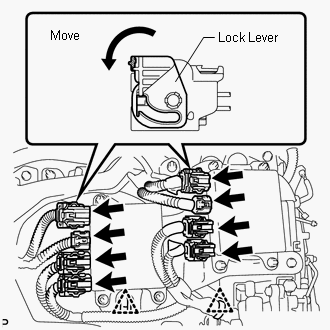

    5. Connect the 8 injector driver connectors and 2 clips as shown in the illustration.
      GTY143582Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

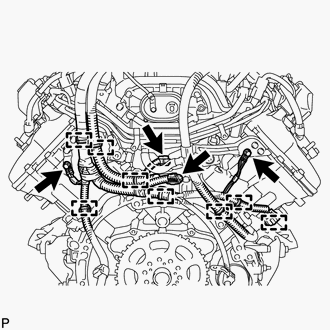

    6. GTY623744Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      for Engine Rear Side:

      1. Install the ground wire with the 2 bolts.

        Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

      2. Attach the 8 wire harness clamps.
      3. Connect the fuel relief valve connector.
      4. Connect the engine wire connector.

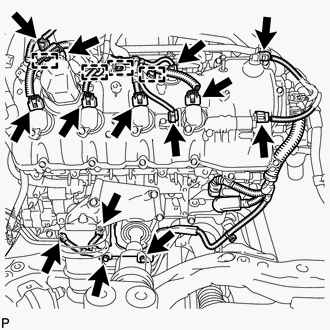

    7. GTY674970Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      for Engine RH Side:

      1. Connect the engine oil level sensor connector.
      2. Connect the crankshaft position sensor connector. Then install the wire harness with the 2 bolts.

        Torque: 13 N*m (133 kgf*cm, 10 ft.*lbf)

      3. Attach the 4 clamps.
      4. Connect the camshaft position sensor connector.
      5. Connect the fuel pump connector (for high pressure).
      6. Connect the 2 VVT sensor connectors.
      7. Connect the 4 ignition coil connectors.
      8. Connect the camshaft timing control valve connector.

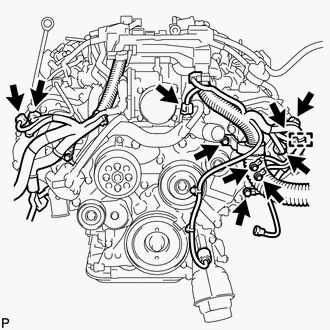

    8. GTY623746Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      for Engine Front Side:

      1. Install the clamp bracket with the bolt.

        Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

      2. Attach the clamp and install the 3 ground wire with the 3 bolts.

        Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

      3. Connect the 2 camshaft timing control motor connectors (for Bank 2).
      4. Connect the 2 camshaft timing control motor connectors (for Bank 1).
      5. Connect the engine coolant temperature sensor connector.

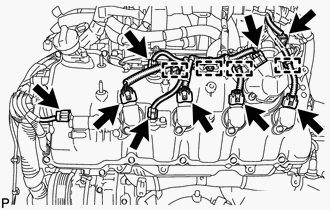

    9. GTY685709Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      for Engine LH Side:

      1. Attach the 4 wire harness clamps.
      2. Connect the No. 8 engine wire connector.
      3. Connect the fuel pump connector (for high pressure).
      4. Connect the 2 VVT sensor connectors.
      5. Connect the 4 ignition coil connectors.
      6. Connect the camshaft timing control valve connector.
    10. Connect the throttle body connectors.
  38. INSTALL NO. 6 ENGINE COVER SUBASSEMBLY

    Refer to PROCEDURE - Step 3

  39. INSTALL NO. 5 ENGINE COVER SUBASSEMBLY

    Refer to PROCEDURE - Step 4

  40. INSTALL FRONT DIFFERENTIAL CARRIER ASSEMBLY

    Refer to PROCEDURE - Step 1

  41. INSTALL COOLER COMPRESSOR ASSEMBLY
    1. Install the cooler compressor assembly with the 2 stud bolts, 2 nuts and 2 bolts.

      for stud bolts

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

      for nuts

      Torque: 25 N*m (250 kgf*cm, 18 ft.*lbf)

      for bolts

      Torque: 25 N*m (250 kgf*cm, 18 ft.*lbf)

  42. INSTALL NO. 1 ENGINE HANGER

    See step  52

  43. REMOVE ENGINE STAND
    1. Lift the engine and remove it from the engine stand.
      NOTE:

      With the exception of installing the engine assembly to an engine stand or removing the engine assembly from an engine stand, do not perform any work on the engine while it is suspended, as doing so is dangerous.

    2. Place the engine onto a work bench.
  44. INSTALL DRIVE PLATE AND RING GEAR SUBASSEMBLY

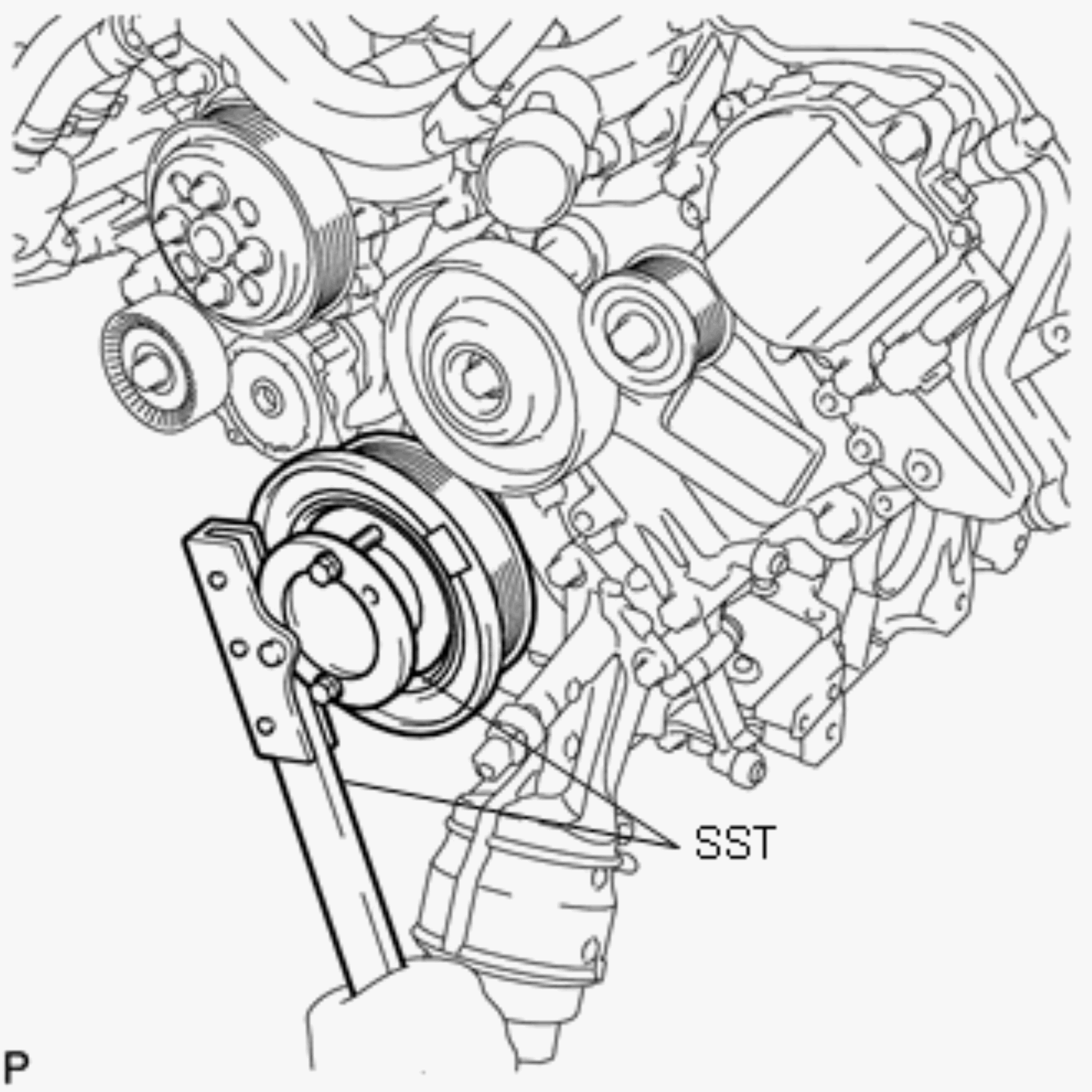

    1. Using SST, hold the crankshaft.
      GTY674074Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09213-54015
        1. 90119-08216
      • SST: 09330-00021
    2. Clean the installation holes.
    3. Install the crankshaft position sensor rotor.
      GTY648091Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      • Align the pin of the crankshaft with the pin hole of the crankshaft position sensor rotor.
      • As the crankshaft position sensor rotor are not reversible, be sure to install it in the direction shown in the illustration.

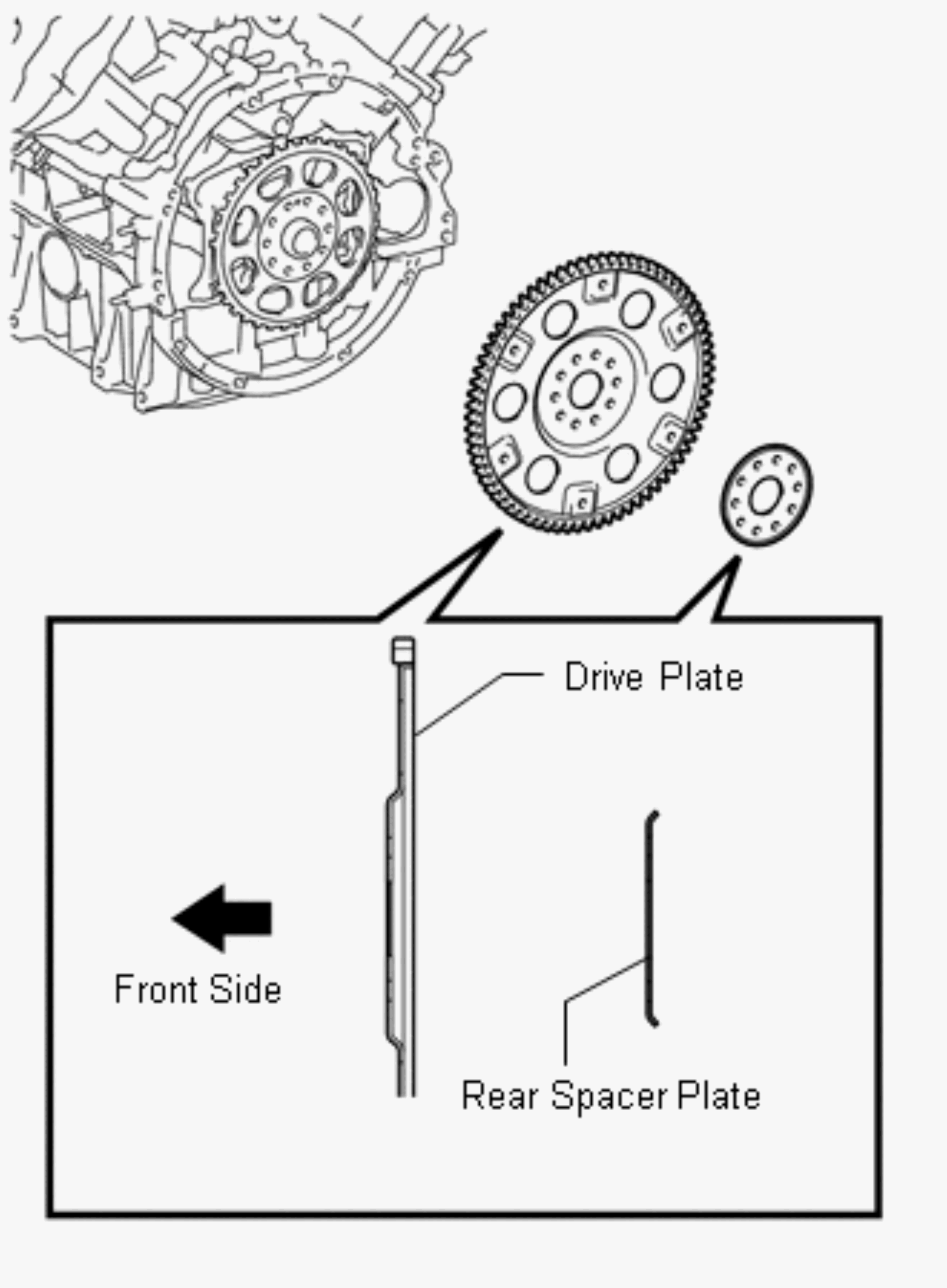

    4. Install the drive plate and ring gear SUBASSEMBLY and rear spacer plate on the crankshaft.
      GTY647071Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      As the drive plate and ring gear SUBASSEMBLY and rear spacer plate are not reversible, be sure to install it in the direction shown in the illustration.

    5. Apply a few drops of adhesive to 2 or 3 threads of the bolt end.
      GTY224609Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Adhesive

      Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent

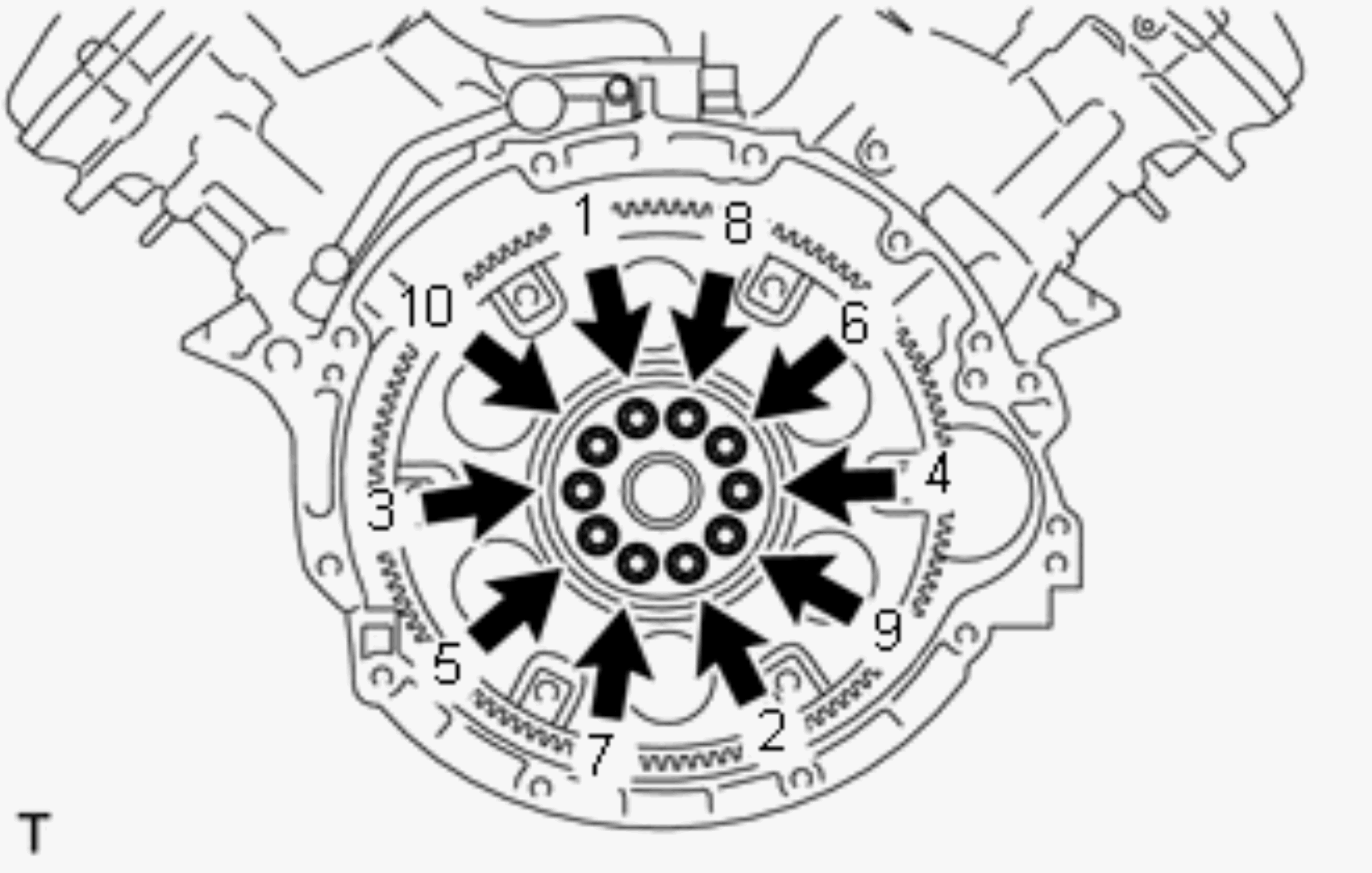

    6. Uniformly install and tighten 10 new bolts in the sequence shown in the illustration.
      GTY645674Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 30 N*m (301 kgf*cm, 22 ft.*lbf)

      NOTE:
      • Do not reuse the drive plate installation bolts.
      • Do not impact or damage the drive plate installation bolts. Be sure to handle them carefully.
    7. Mark the upside of each drive plate installation bolt with paint.
    8. Retighten the drive plate installation bolts by 90°.
    9. Check that the painted marks are now at a 90° angle to the upside.
  45. INSTALL AUTOMATIC TRANSMISSION ASSEMBLY

    Refer to PROCEDURE - Step 4

  46. INSTALL DRIVE PLATE AND TORQUE CONVERTER SETTING BOLT

    Refer to PROCEDURE - Step 5

  47. CONNECT WIRE HARNESS AND CONNECTOR

    Refer to PROCEDURE - Step 6

  48. INSTALL NO. 3 COVER SUBASSEMBLY

    Refer to PROCEDURE - Step 2

  49. INSTALL NO. 1 OIL COOLER TUBE

    Refer to PROCEDURE - Step 11

  50. INSTALL FRONT PROPELLER SHAFT ASSEMBLY

    (Refer to INSTALLATION [09/2015 - ] )

  51. INSTALL STARTER ASSEMBLY

    Refer to PROCEDURE - Step 2

  52. INSTALL NO. 3 EXHAUST MANIFOLD HEAT INSULATOR

    Refer to PROCEDURE - Step 3

  53. INSTALL FRONT NO. 2 ENGINE MOUNTING BRACKET LH
    1. Temporarily install the front No. 2 engine mounting bracket LH with the 2 nuts.
      GTY623707Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

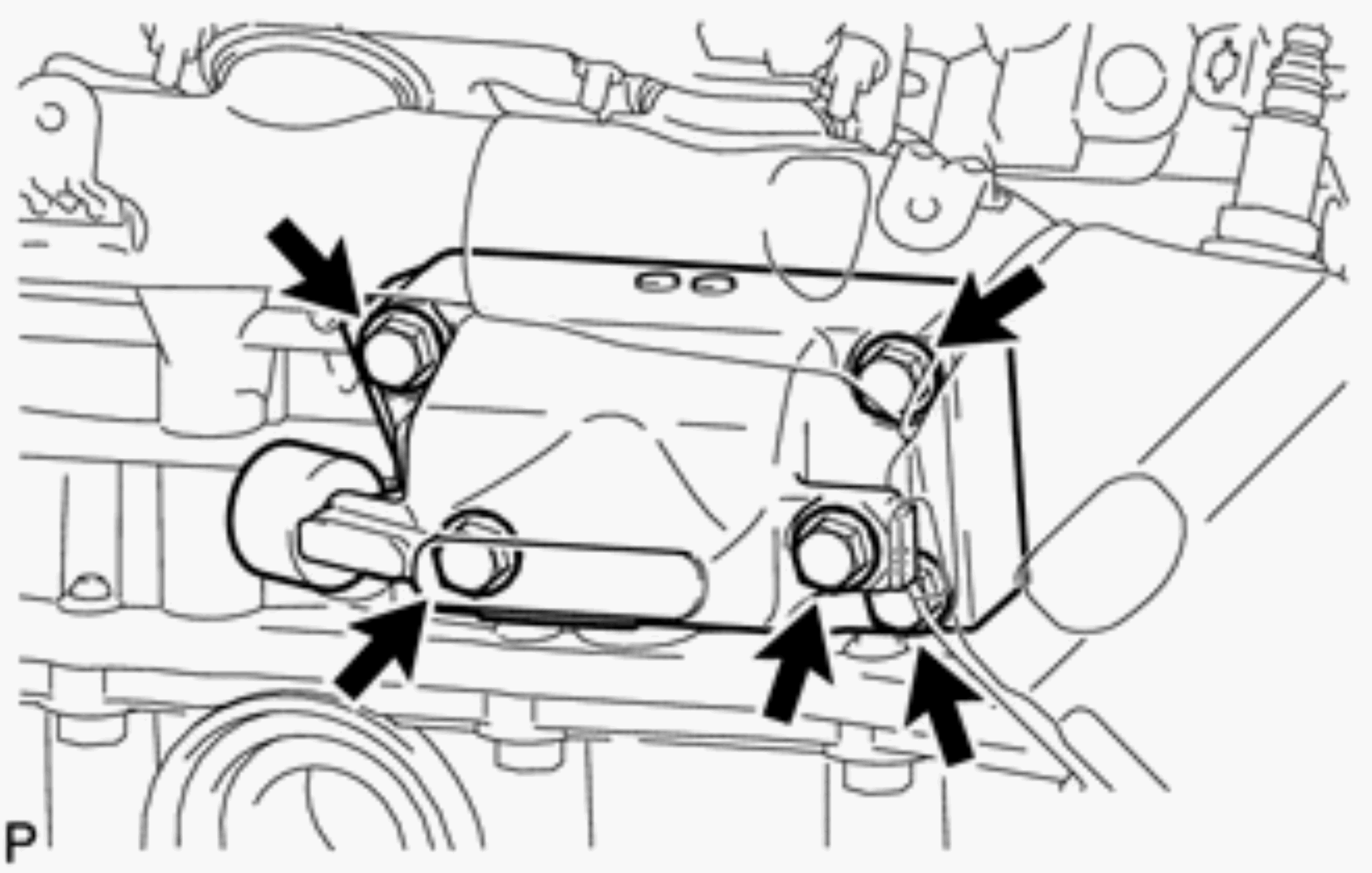

    2. Temporarily install the front No. 1 engine mounting bracket LH with the 5 bolts.
      GTY685808Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Tighten the 2 nuts.

      Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

    4. Remove the 5 bolts and front No. 1 engine mounting bracket LH.
  54. INSTALL FRONT NO. 2 ENGINE MOUNTING BRACKET RH
    1. Temporarily install the front No. 2 engine mounting bracket RH with the 2 nuts.

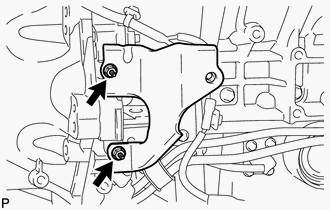

      GTY674961Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Temporarily install the front No. 1 engine mounting bracket RH with the 5 bolts.

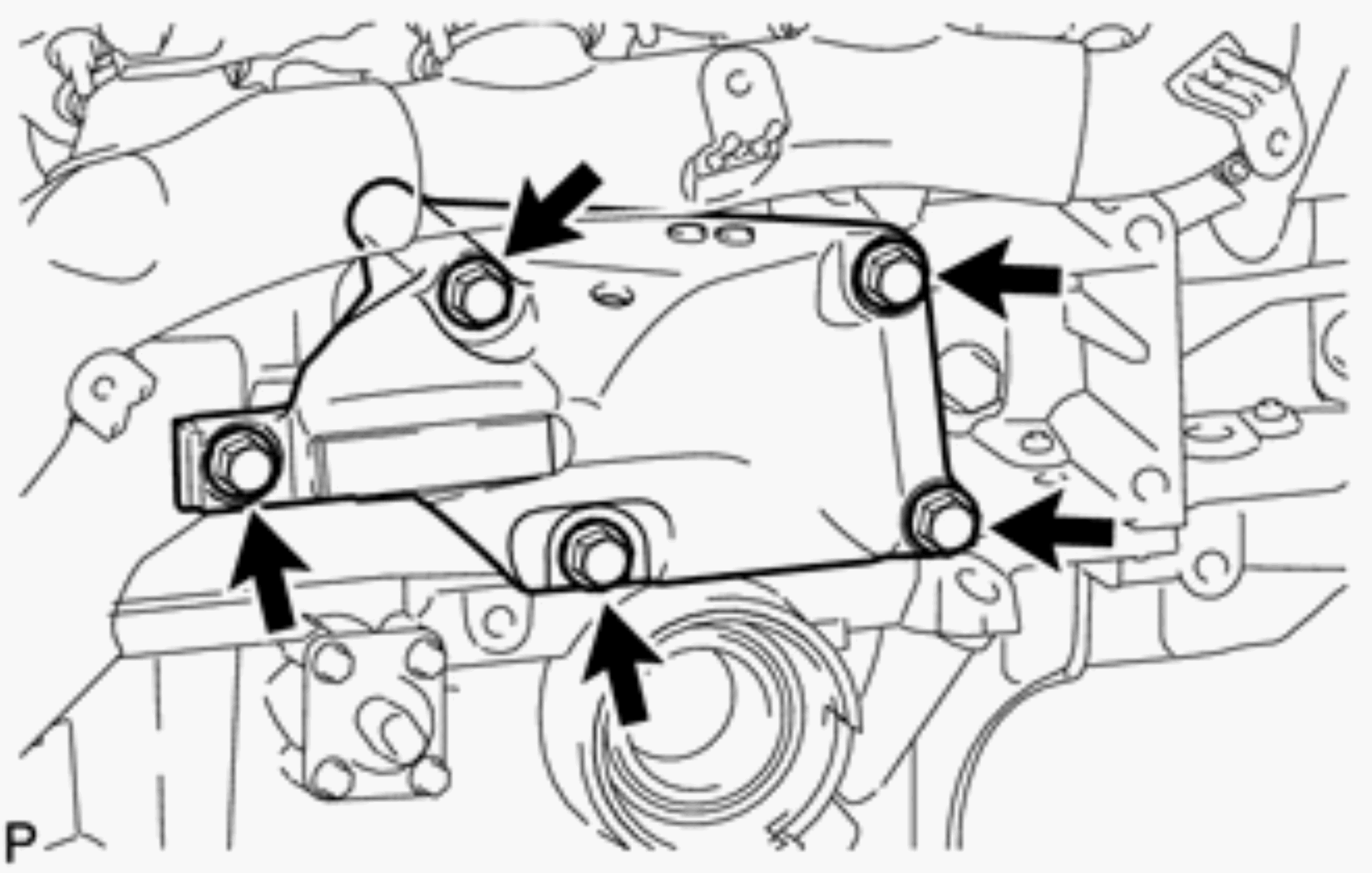

      GTY685790Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Tighten the 2 nuts.

      Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

    4. Remove the 5 bolts and front No. 1 engine mounting bracket RH.
  55. INSTALL EXHAUST MANIFOLD SUBASSEMBLY LH

    Refer to PROCEDURE - Step 3

  56. INSTALL EXHAUST MANIFOLD SUBASSEMBLY RH

    Refer to PROCEDURE - Step 4

  57. INSTALL FRONT NO. 1 ENGINE MOUNTING BRACKET LH
    1. Install the front No. 1 engine mounting bracket LH with the 5 bolts.

      Torque: 35 N*m (357 kgf*cm, 26 ft.*lbf)

  58. INSTALL FRONT NO. 1 ENGINE MOUNTING BRACKET RH
    1. Install the front No. 1 engine mounting bracket RH with the 5 bolts.

      Torque: 35 N*m (357 kgf*cm, 26 ft.*lbf)

  59. INSTALL FRONT ENGINE MOUNTING INSULATOR
    1. Install the 2 engine mounting spacers and 2 front engine mounting insulators with the 2 nuts.

      Torque: 35 N*m (357 kgf*cm, 26 ft.*lbf)

  60. INSTALL NO. 2 EXHAUST MANIFOLD HEAT INSULATOR

    Refer to PROCEDURE - Step 8

  61. INSTALL NO. 1 EXHAUST MANIFOLD HEAT INSULATOR

    Refer to PROCEDURE - Step 9

  62. INSTALL GENERATOR ASSEMBLY

    Refer to PROCEDURE - Step 1

  63. INSTALL ENGINE OIL LEVEL DIPSTICK GUIDE
    1. Apply a light coat of engine oil to a new O-ring.
    2. Install the O-ring to the engine oil level dipstick guide.
    3. Install the engine oil level dipstick guide with the 2 bolts.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

    4. Install the engine oil level dipstick.
  64. INSTALL FRONT FRAME ASSEMBLY
    1. Slowly lower the engine and set it to the front frame assembly.
    2. Install the 4 nuts.

      Torque: 70 N*m (714 kgf*cm, 52 ft.*lbf)

  65. INSTALL ENGINE AND TRANSMISSION

    HINT:

    Perform "Inspection After Repairs" after replacing the engine assembly (Refer to INITIALIZATION [09/2015 - ] ).

    1. Place the engine on an engine lifter.
      NOTE:
      • Place wooden blocks or plate lift attachments so that the engine is level.
      • With the exception of installing the engine assembly to an engine stand or removing the engine assembly from an engine stand, do not perform any work on the engine while it is suspended, as doing so is dangerous.
      • Never install attachments to the oil pan of the engine assembly or transmission as doing so may deform the oil pan.
    2. Remove the 2 bolts and 2 No. 1 engine hangers.
    3. Operate the engine lifter and install the engine to the vehicle.
      NOTE:

      Make sure that the engine is clear of all wiring and hoses.

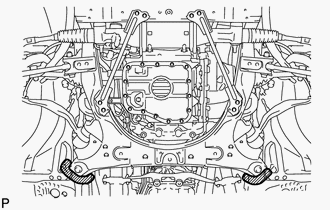

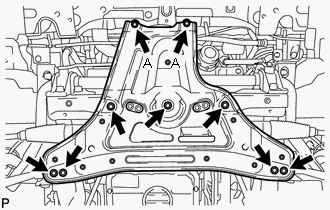

    4. Align the front frame to the marks on the vehicle, and temporarily install the front frame with the 4 bolts.
      GTY685715Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Make sure the crossmember is aligned to the vehicle marks as accurately as possible. If not performed accurately, the suspension alignment may become extremely misaligned.

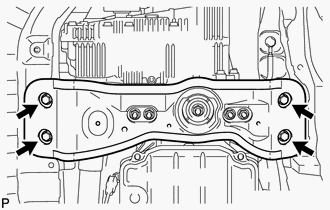

    5. GTY633946Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Install the 4 rear engine mounting member's bolts.

      Torque: 35 N*m (354 kgf*cm, 26 ft.*lbf)

    6. Tighten the 4 front frame bolts.

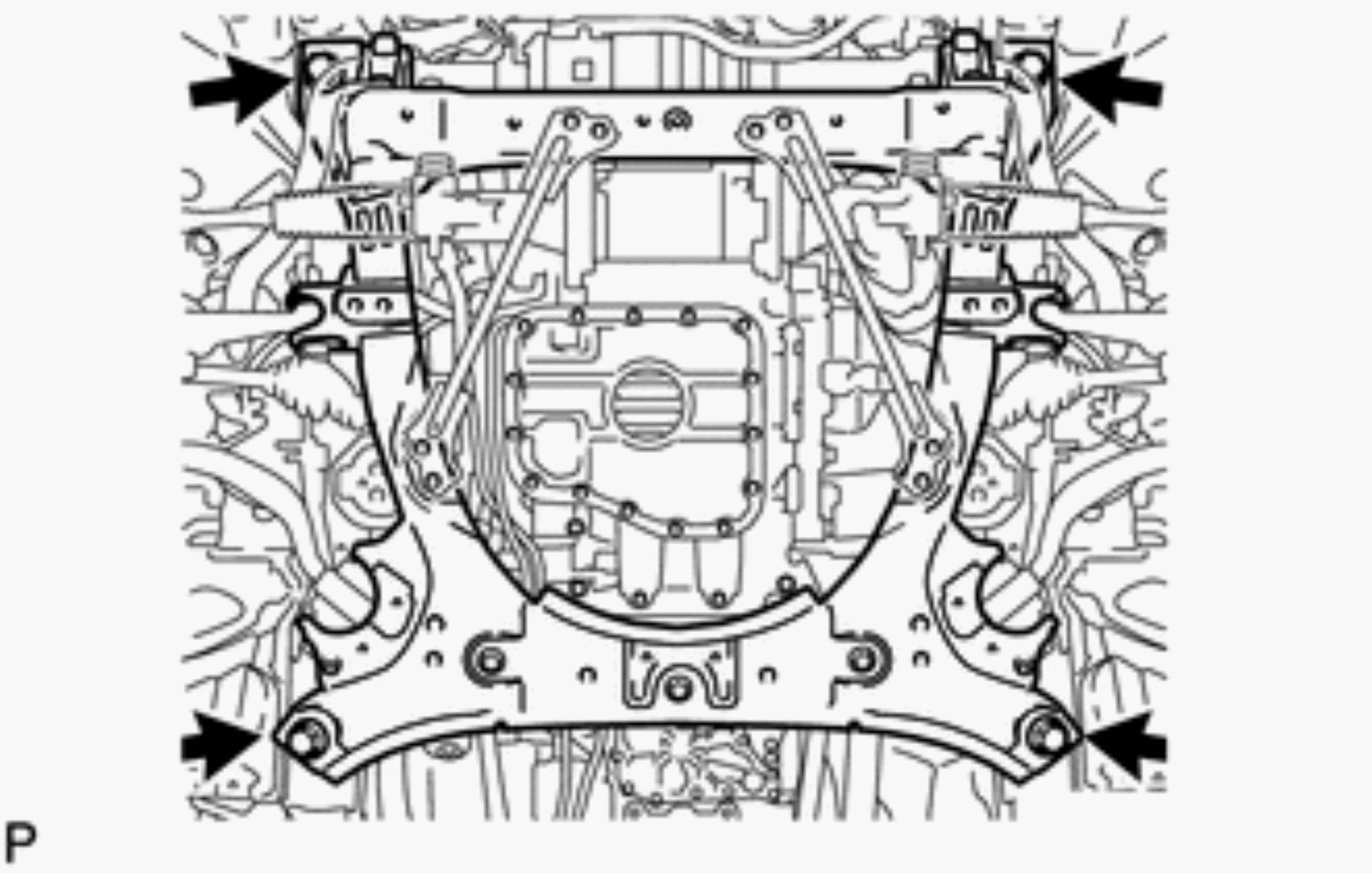

      GTY613162Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 165 N*m (1683 kgf*cm, 122 ft.*lbf)

  66. INSTALL FRONT LOWER SHOCK ABSORBER BRACKET SUBASSEMBLY LH
    1. Connect the front lower shock absorber bracket SUBASSEMBLY LH. Then install the bolt.

      Torque: 48 N*m (489 kgf*cm, 35 ft.*lbf)

  67. INSTALL FRONT LOWER SHOCK ABSORBER BRACKET SUBASSEMBLY RH
    1. Connect the front lower shock absorber bracket SUBASSEMBLY RH. Then install the bolt.

      Torque: 48 N*m (489 kgf*cm, 35 ft.*lbf)

  68. CONNECT FLOOR SHIFT GEAR SHIFTING ROD SUBASSEMBLY

    Refer to PROCEDURE - Step 4

  69. INSTALL PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY

    (Refer to INSTALLATION [09/2015 - ] )

  70. INSTALL FRONT EXHAUST PIPE ASSEMBLY

    (Refer to INSTALLATION [09/2015 - ] )

  71. INSTALL FRONT DRIVE SHAFT ASSEMBLY

    (Refer to INSTALLATION [09/2015 - ] )

  72. INSTALL NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY

    Refer to PROCEDURE - Step 2

  73. INSTALL NO. 1 AIR DUCT SUBASSEMBLY
    1. Attach the 2 claws to install the No. 1 air duct SUBASSEMBLY with the bolt.

      Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf)

  74. INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY

    (Refer to INSTALLATION [09/2015 - ] )

  75. CONNECT HOSES AND CONNECTORS
    1. GTY659873Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Connect the purge line hose.

    2. GTY685814Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Connect the 2 heater hoses.

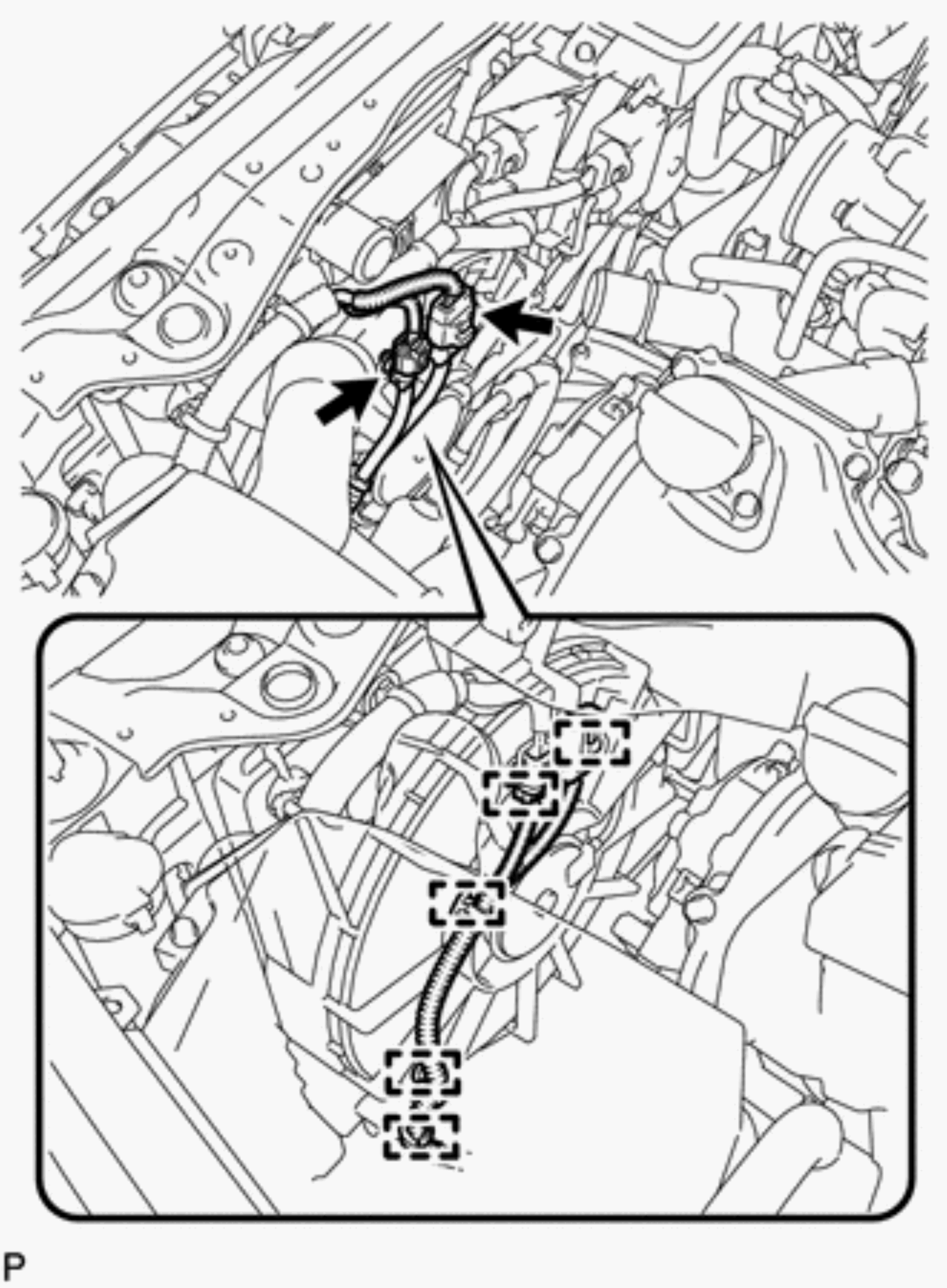

    3. GTY613429Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Attach the 5 clamps and connect the 2 connectors.

    4. GTY629181Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Connect the ground wire with the bolt.

      Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

    5. Connect the 2 power steering ECU connectors and attach the 2 clamps.

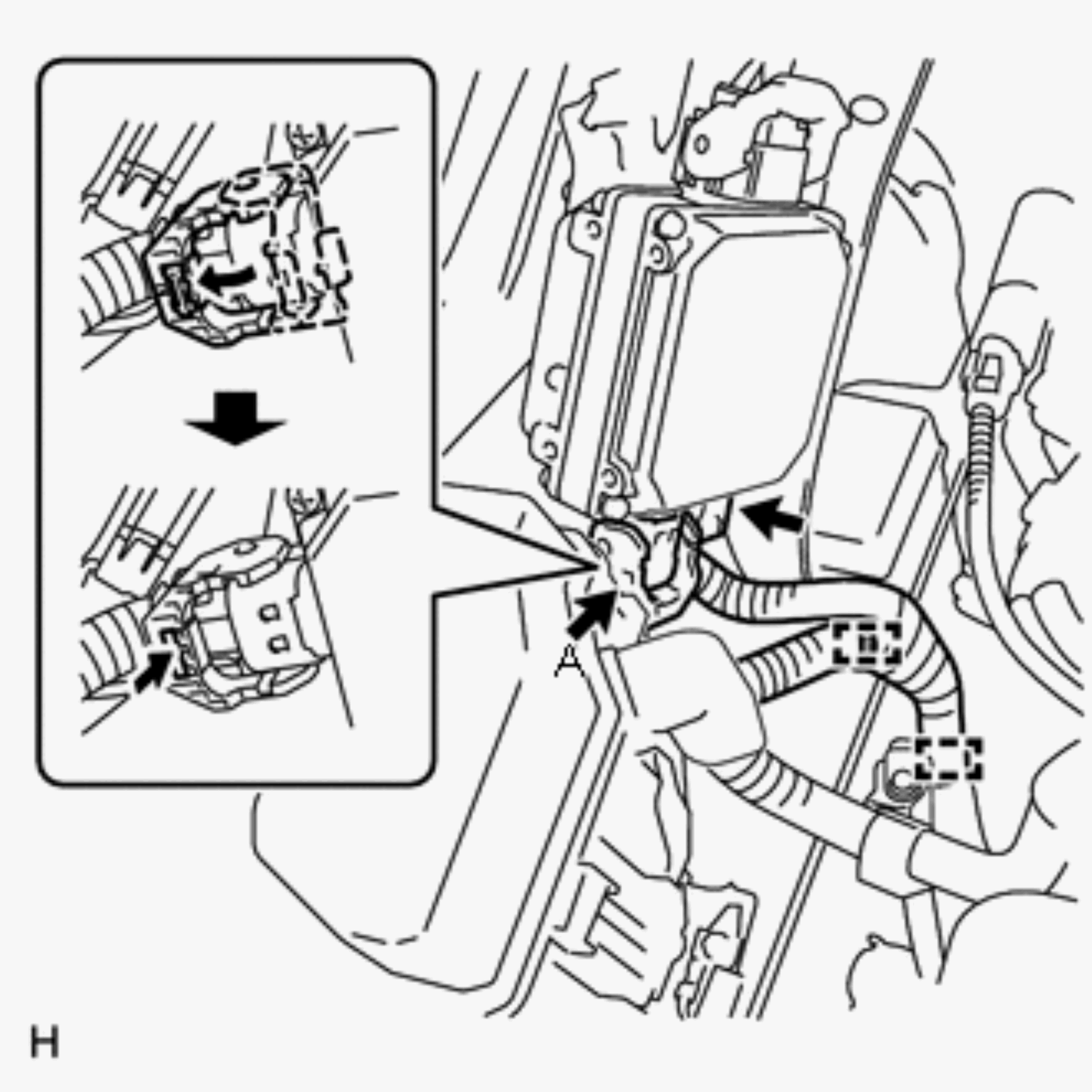

      GTY649878Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Refer to the following procedures to connect A the power steering ECU connector (Refer to PROCEDURE - Step 1 ).

    6. GTY685738Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Connect the 3 connectors with front controller with the clamp.

    7. GTY616063Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

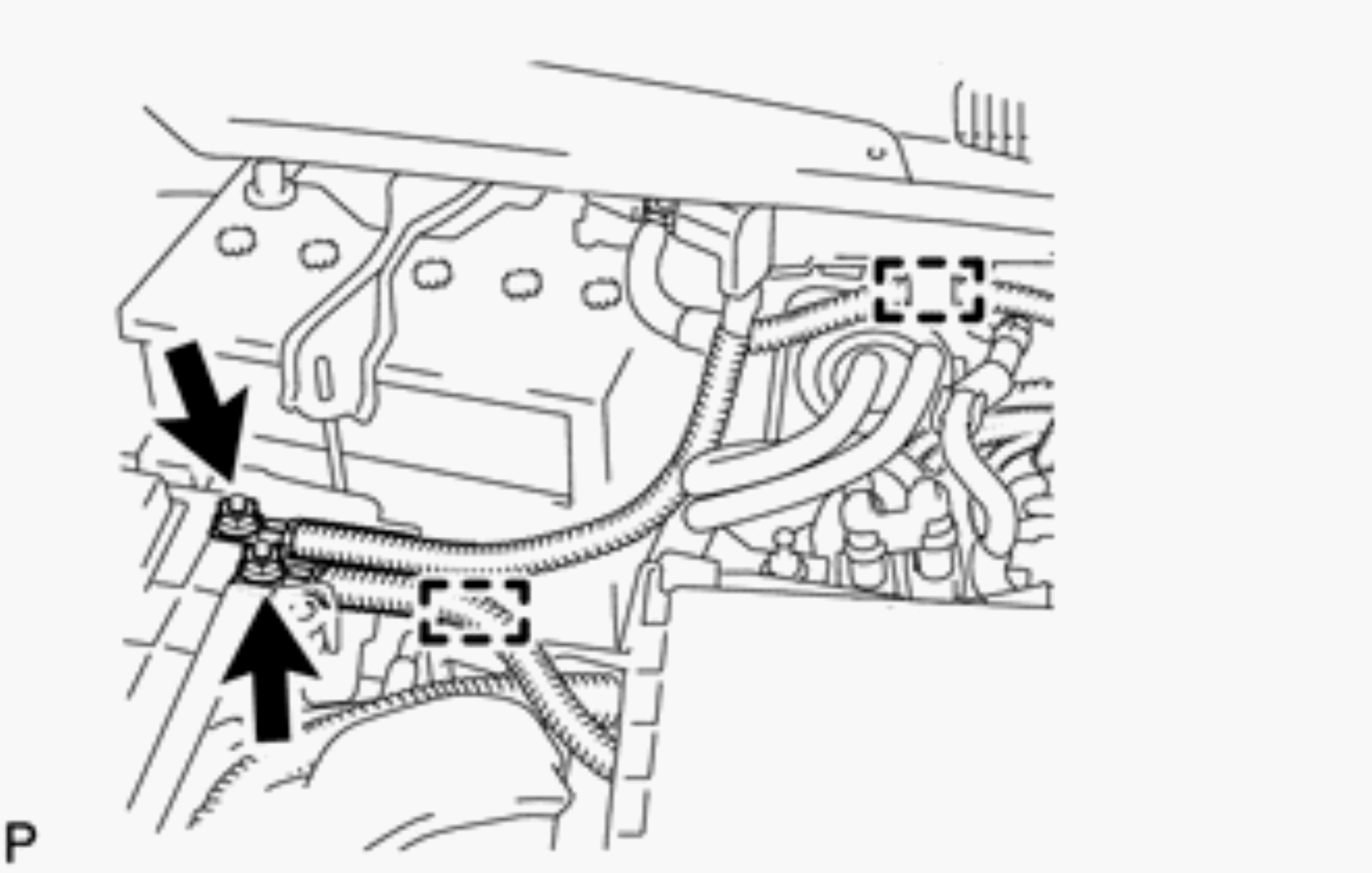

      Connect the wires with No. 1 engine room junction block with the 2 nuts. Then attach the 2 clamps.

      Torque: 13 N*m (133 kgf*cm, 10 ft.*lbf)

    8. GTY622154Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

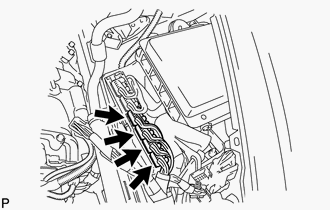

      Lift up the wiring harness support and connect the 4 ECM connectors.

    9. Install the wiring harness support to the ECU box.

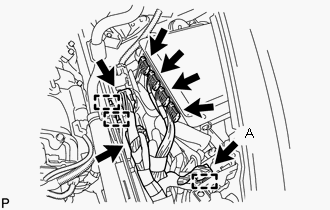

      GTY667980Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    10. Attach the clip of connector A to the ECU box.
    11. Connect the 4 TCM connectors and 2 wiring harness support connectors.
    12. GTY634634Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Install the engine room ECU cover with the 3 bolts.

      Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

  76. CONNECT SUCTION HOSE SUBASSEMBLY

    Refer to PROCEDURE - Step 4

  77. CONNECT DISCHARGE HOSE SUBASSEMBLY

    Refer to PROCEDURE - Step 3

  78. CONNECT NO. 1 FUEL PIPE SUBASSEMBLY

    Refer to PROCEDURE - Step 3

  79. CONNECT NO. 3 FUEL HOSE

    Refer to PROCEDURE - Step 4

  80. INSTALL ENGINE OIL PRESSURE SWITCH ASSEMBLY

    Refer to PROCEDURE - Step 1

  81. INSTALL V-RIBBED BELT

    See step  1

  82. INSTALL RESONATOR BRACKET SUBASSEMBLY

    See step  9

  83. CONNECT NO. 2 RADIATOR HOSE
  84. CONNECT NO. 1 RADIATOR HOSE
  85. INSTALL RADIATOR RESERVOIR ASSEMBLY

    Refer to PROCEDURE - Step 3

  86. INSTALL ENGINE ROOM ECU OUTLET DUCT
    1. Install the engine room ECU outlet duct to the fan shroud and ECU box.
  87. INSTALL AIR CLEANER ASSEMBLY RH

    Refer to PROCEDURE - Step 10

  88. INSTALL AIR CLEANER ASSEMBLY LH

    Refer to PROCEDURE - Step 9

  89. INSTALL INTAKE AIR CONNECTOR PIPE

    Refer to PROCEDURE - Step 13

  90. INSTALL REAR FRAME SIDE RAIL

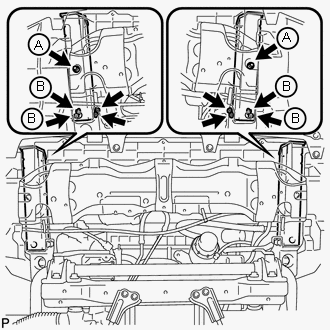

    1. Install the 2 rear frame side rails with the 6 bolts and 4 nuts.

      for bolt A

      Torque: 30 N*m (306 kgf*cm, 22 ft.*lbf)

      for nut B

      Torque: 44 N*m (453 kgf*cm, 33 ft.*lbf)

      GTY665424Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  91. INSTALL FRONT SUSPENSION LOWER CROSSMEMBER

    Refer to PROCEDURE - Step 6

  92. INSTALL FRONT BUMPER COVER

    (Refer to INSTALLATION [09/2015 - ] )

  93. CONNECT NO. 1 OIL COOLER OUTLET HOSE

    Refer to PROCEDURE - Step 16

  94. CONNECT NO. 1 OIL COOLER INLET HOSE

    Refer to PROCEDURE - Step 17

  95. INSTALL NO. 1 AIR CLEANER INLET

    Refer to PROCEDURE - Step 3

  96. ADD ENGINE OIL

    Refer to PROCEDURE - Step 5

  97. ADD ENGINE COOLANT

    Refer to PROCEDURE - Step 8

  98. ADD DIFFERENTIAL OIL

    Refer to PROCEDURE - Step 2

  99. ADD AUTOMATIC TRANSMISSION FLUID

    (Refer to ADJUSTMENT [09/2015 - ] )

  100. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [09/2015 - ] ).

  101. CHARGE REFRIGERANT

    Refer to PROCEDURE - Step 3

  102. INSPECT FOR REFRIGERANT

    Refer to PROCEDURE - Step 5

  103. INSPECT FOR OIL LEAK

    Refer to PROCEDURE - Step 5

  104. INSPECT FOR COOLANT LEAK

    Refer to PROCEDURE - Step 1

  105. INSPECT FOR FUEL LEAK

    Refer to PROCEDURE - Step 1

  106. INSPECT FOR EXHAUST GAS LEAK

    Refer to PROCEDURE - Step 9

  107. CHECK SHIFT LEVER POSITION

    Refer to PROCEDURE - Step 8

  108. CHECK IGNITION TIMING

    See step  4

  109. CHECK IDLE SPEED

    See step  5

  110. CHECK CO/HC

    See step  7

  111. INSTALL FRONT SUSPENSION MEMBER PROTECTOR LOWER
    1. Install the front suspension member protector lower with the 9 bolts.
      GTY668043Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      for bolt A

      Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

      except bolt A

      Torque: 58 N*m (593 kgf*cm, 43 ft.*lbf)

  112. INSTALL NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 13

  113. INSTALL FRONT WHEEL OPENING EXTENSION PAD RH

    Refer to PROCEDURE - Step 16

  114. INSTALL FRONT WHEEL OPENING EXTENSION PAD LH

    Refer to PROCEDURE - Step 15

  115. INSTALL NO. 2 ENGINE UNDER COVER
    1. Install the No. 2 engine under cover with the 4 screws and 2 clips.
  116. INSTALL FRONT CENTER FLOOR COVER
    1. Install the front center floor cover with the 3 screws, 2 bolts and clip.

      Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

  117. CHECK ENGINE OIL LEVEL

    Refer to PROCEDURE - Step 2

  118. PLACE FRONT WHEELS FACING STRAIGHT AHEAD
  119. CHECK AND ADJUST FRONT WHEEL ALIGNMENT

    (Refer to ADJUSTMENT [09/2015 - ] )

  120. INSTALL ENGINE ROOM SIDE COVER RH

    Refer to PROCEDURE - Step 15

  121. INSTALL ENGINE ROOM SIDE COVER LH

    Refer to PROCEDURE - Step 16

  122. INSTALL AIR CLEANER INLET COVER SUBASSEMBLY

    Refer to PROCEDURE - Step 7

  123. INSTALL V-BANK COVER SUBASSEMBLY

    Refer to PROCEDURE - Step 8

  124. INSTALL COWL TOP VENTILATOR LOUVER RH

    Refer to PROCEDURE - Step 17

scientia non olet · About LEMON Manuals
