Installation [09/2015 - ]: Procedure

  1. INSTALL FLYWHEEL HOUSING SIDE COVER
  2. INSTALL STARTER ASSEMBLY

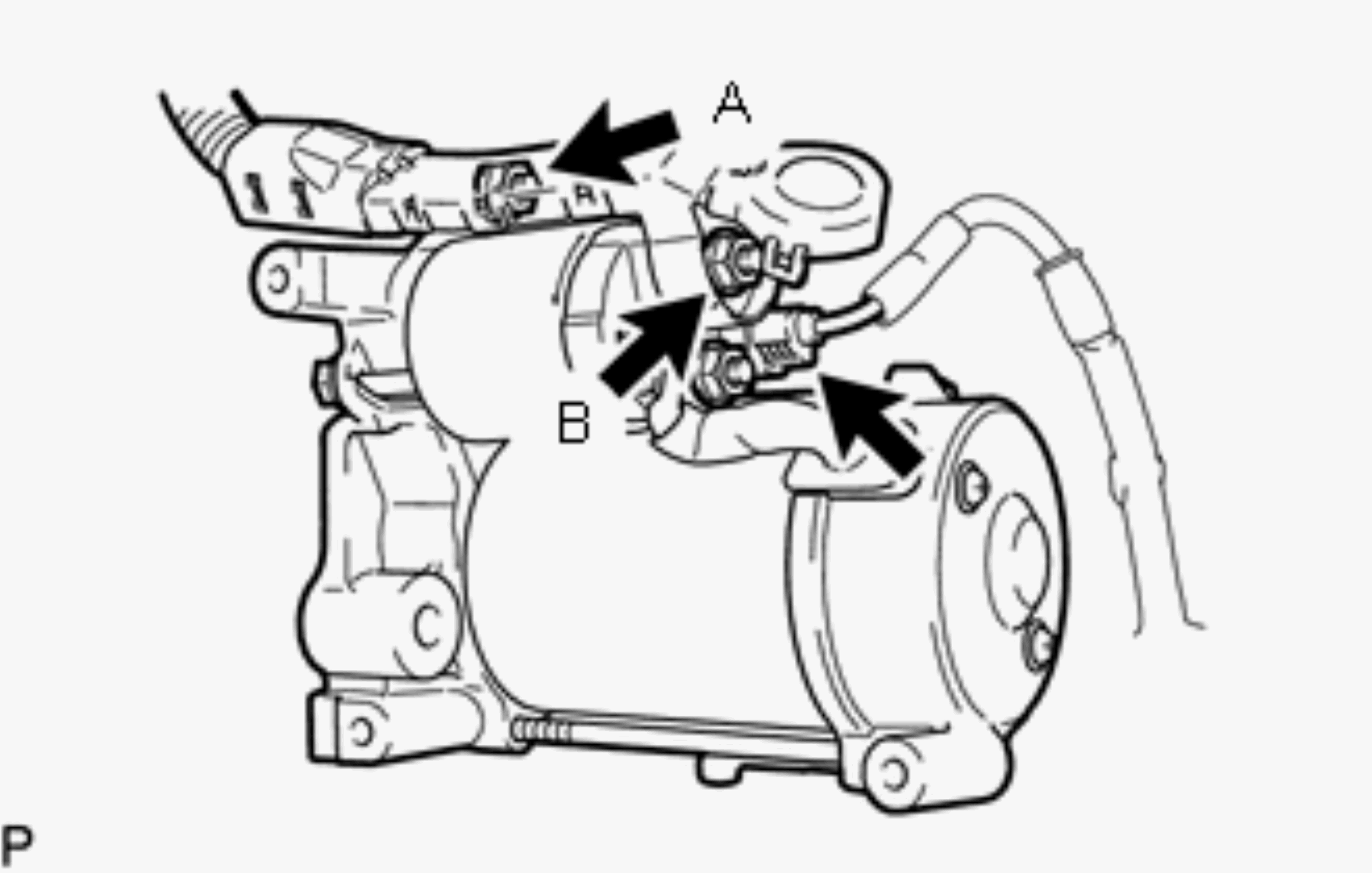

    1. Connect the starter connector.
      GTY680568Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the starter wire with the 2 nuts.

      for nut A

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

      for nut B

      Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf)

    3. Close the terminal cap.
    4. Install the starter assembly with the 2 bolts.

      Torque: 37 N*m (377 kgf*cm, 27 ft.*lbf)

      NOTE:

      Make sure the flywheel housing side cover is as shown in the illustration.

      GTY641145Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL NO. 3 EXHAUST MANIFOLD HEAT INSULATOR
    1. Install the No. 3 exhaust manifold heat insulator with the 3 bolts.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

  4. INSTALL EXHAUST MANIFOLD SUB-ASSEMBLY RH

    (Refer to INSTALLATION [09/2015 - ] )

  5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [09/2015 - ] ).

  6. INSTALL COWL TOP VENTILATOR LOUVER RH

    Refer to PROCEDURE - Step 15
