Installation [09/2015 - ]: Procedure

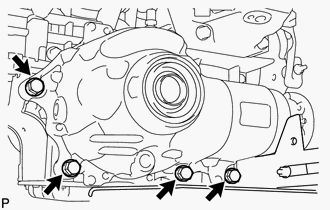

1. Support the front differential carrier assembly with a jack and temporarily install it to the oil pan with the 4 bolts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   WARNING:

   As the front differential carrier assembly is very heavy, securely support it with the jack.

2. Align the front differential carrier retainer sub-assembly and oil pan so that their ends are aligned and tighten the 4 bolts to install the front differential carrier assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 81 N*m (826 kgf*cm, 60 ft.*lbf)

   TEXT IN ILLUSTRATION



   *1	Front Differential Carrier Retainer Sub-assembly
   *2	Oil Pan Sub-assembly

1. Remove the engine from the engine stand and then install it to the vehicle (Refer to INSTALLATION [09/2015 - ] ).

See step  2
