Installation [09/2015 - ]: Procedure

  1. INSTALL WATER INLET SUB-ASSEMBLY WITH THERMOSTAT
    1. Install a new gasket and the water inlet with thermostat with the 3 nuts.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

  2. CONNECT NO. 2 RADIATOR HOSE
    1. Connect the No. 2 radiator hose to the water inlet sub-assembly.

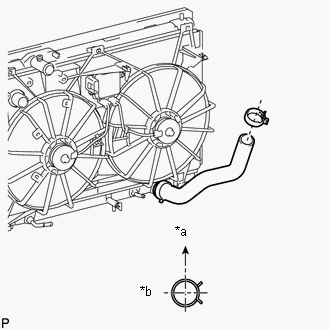

      GTY406122Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Front
      *b LH Side

      HINT:

      The direction of the hose clamp is indicated in the illustration.

  3. INSTALL RADIATOR RESERVOIR ASSEMBLY
    1. Install the radiator reservoir assembly with the 2 bolts.

      Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

    2. Connect the 2 reservoir hoses.

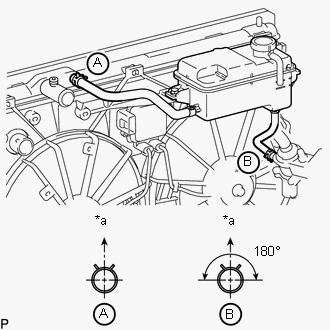

      GTY654220Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Upper

      HINT:

      The direction of the hose clamp is indicated in the illustration.

  4. ADD ENGINE COOLANT

    See step  8

  5. INSTALL NO. 1 AIR CLEANER INLET

    Refer to PROCEDURE - Step 3

  6. INSPECT FOR COOLANT LEAK

    Refer to PROCEDURE - Step 1

  7. INSTALL ENGINE ROOM SIDE COVER RH

    Refer to PROCEDURE - Step 15

  8. INSTALL AIR CLEANER INLET COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 7

  9. INSTALL V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 8

  10. INSTALL NO. 1 ENGINE UNDER COVER

    See step  13

  11. INSTALL FRONT WHEEL OPENING EXTENSION PAD LH (for AWD)

    Refer to PROCEDURE - Step 15

  12. INSTALL FRONT WHEEL OPENING EXTENSION PAD RH (for AWD)

    Refer to PROCEDURE - Step 16
