Installation [09/2015 - ]: Procedure
- INSTALL FUEL PRESSURE PULSATION DAMPER ASSEMBLY
- Apply a light coat of engine oil to the threads and gasket seating surfaces of the 2 fuel pressure pulsation damper assemblies.

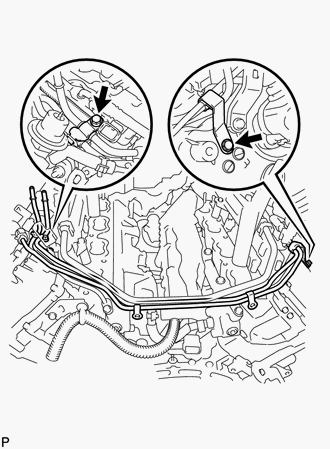

- Temporarily install each dampers together with 2 new gaskets and the pipe to the fuel pump.
- Install the 2 clamp bolts.
Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

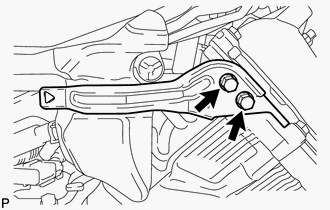

- Using SST, tighten the 2 dampers.
- SST: 09612-24014
- 09617-24011
without SST
Torque: 36 N*m (367 kgf*cm, 27 ft.*lbf)
with SST
Torque: 31 N*m (313 kgf*cm, 23 ft.*lbf)
HINT:
- Use a torque wrench with a fulcrum length of 300 mm (11.8 in.). When using a torque wrench with a fulcrum length that is not 300 mm (11.8 in.), calculate the torque specification for the torque wrench and SST based on the "without SST" torque specification (Refer to PRECAUTION [09/2015 - ] ).
- Make sure SST and the torque wrench are connected in a straight line.
- SST: 09612-24014

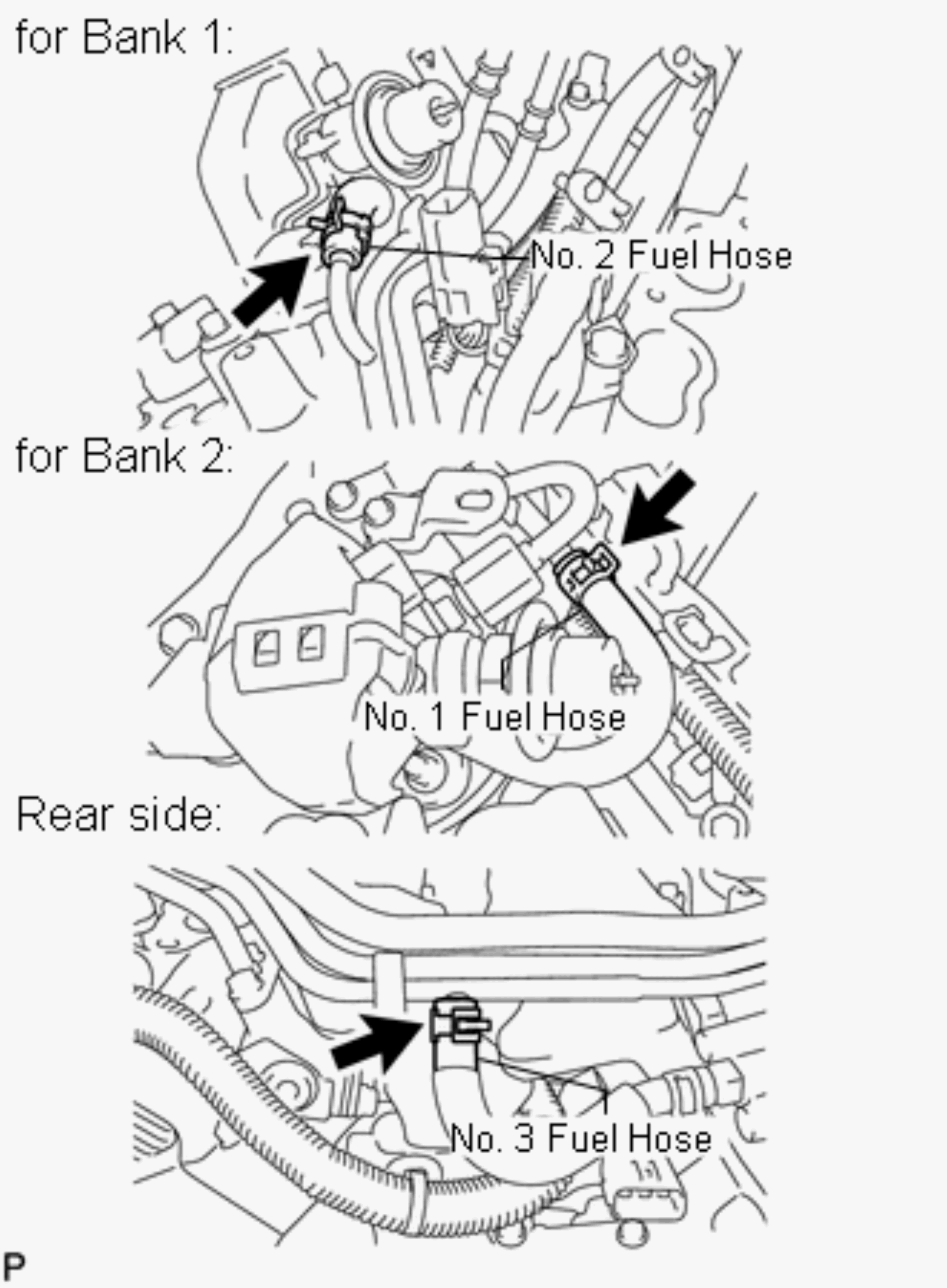

- Connect the 3 fuel hoses.

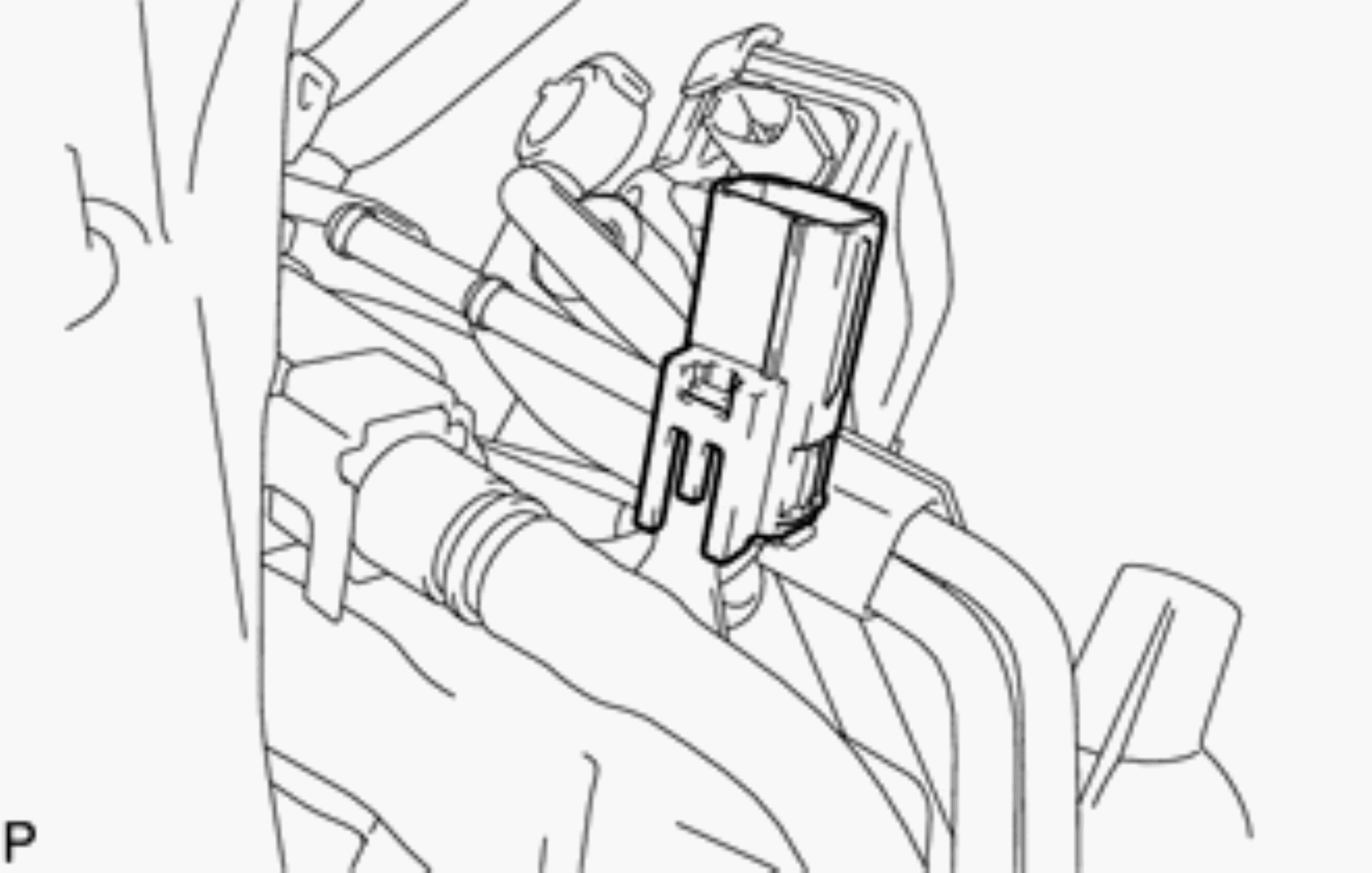

- Connect the connector to the delivery pipe.

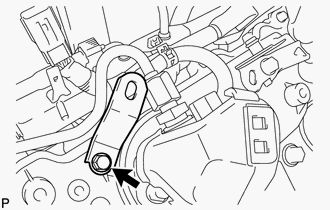

- Install the bracket with the bolt.
Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)
- Apply a light coat of engine oil to the threads and gasket seating surfaces of the 2 fuel pressure pulsation damper assemblies.

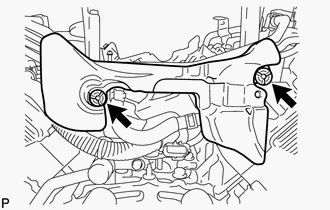

- INSTALL NO. 3 ENGINE COVER SUB-ASSEMBLY
- CONNECT NO. 1 FUEL PIPE SUB-ASSEMBLY

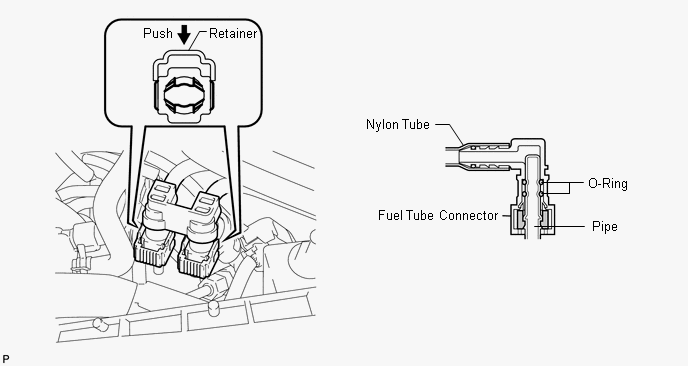

- Push in the tube connector to the pipe until the tube connector makes a "click" sound.
- Push down on the retainer to lock it in place.NOTE:
- Check that there is no damage or foreign objects on the connected part of the fuel pipe.
- After connecting, check that the fuel tube connector and the pipe are securely connected by pulling on them.
- INSTALL INTAKE MANIFOLD
(Refer to INSTALLATION [09/2015 - ] )
- INSPECT FOR FUEL LEAK
Refer to PROCEDURE - Step 1
