Installation [09/2015 - ]: Procedure

  1. INSTALL ENGINE WATER PUMP ASSEMBLY
    1. Install the engine water pump and gasket with the 9 bolts as shown in the illustration.

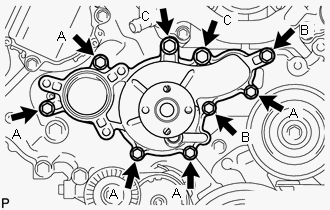

      GTY677155Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

      for bolt A

      Torque: 23 N*m (235 kgf*cm, 17 ft.*lbf)

      for bolt B

      Torque: 47 N*m (479 kgf*cm, 35 ft.*lbf)

      for bolt C

  2. INSTALL WATER PUMP PULLEY
    1. Temporarily install the pulley with the 4 bolts.

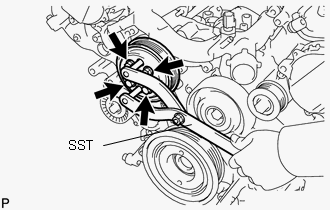

      GTY627863Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using SST, hold the pulley and tighten the 4 bolts.
      • SST: 09960-10010
        1. 09962-01000
        2. 09963-01000

      Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

  3. INSTALL WATER INLET HOUSING
    1. Install a new gasket to the water pump.

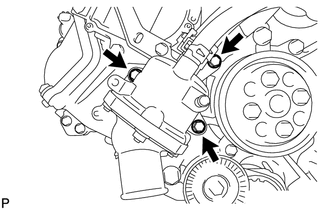

      GTY512208Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the water inlet housing with the 3 bolts.

      Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

  4. CONNECT NO. 3 WATER BY-PASS HOSE
    1. Using needle-nose pliers, grip the claws of the clip and slide the clip to connect the No. 3 water by-pass hose.

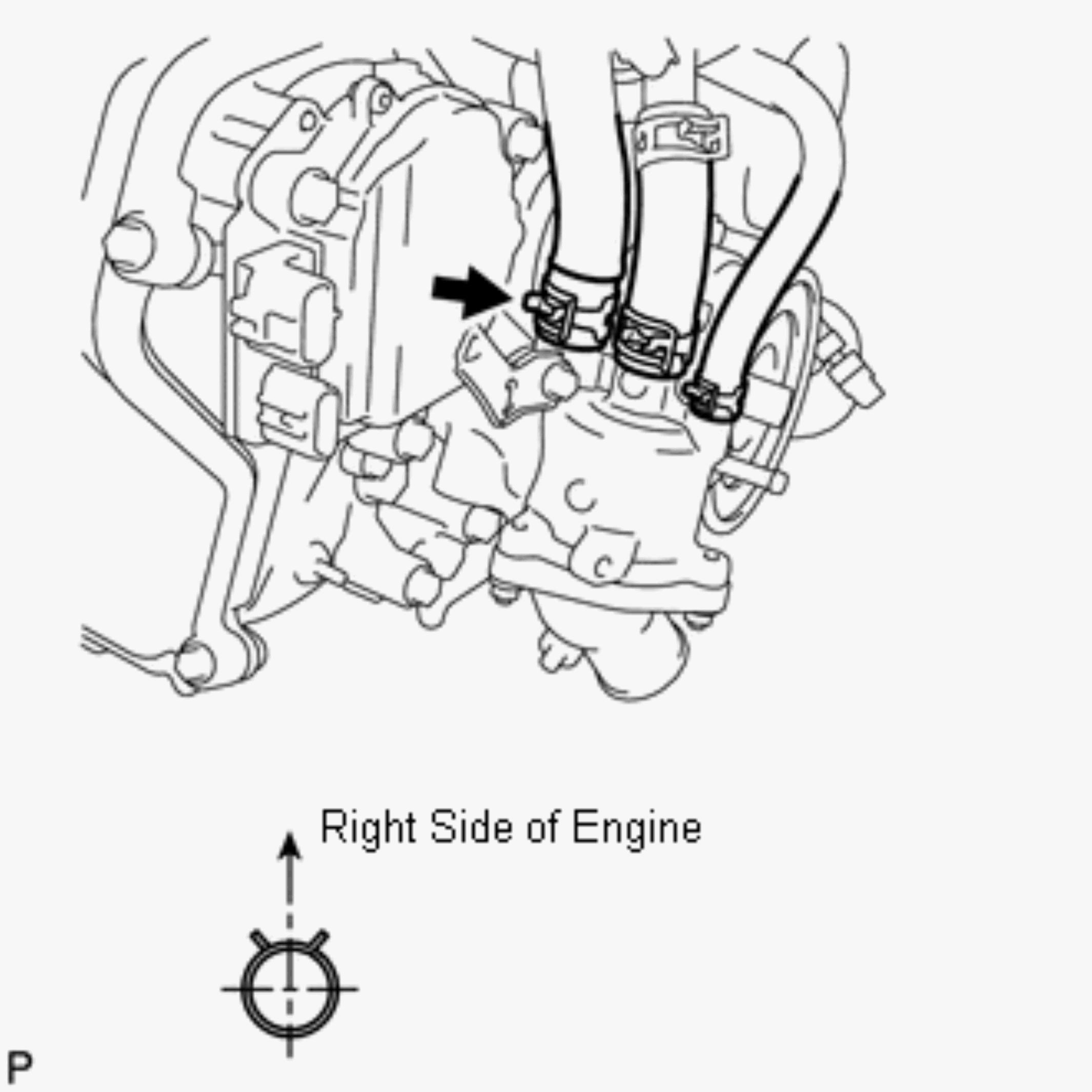

      GTY645679Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. CONNECT WATER INLET HOSE
    1. Using needle-nose pliers, grip the claws of the clip and slide the clip to connect the water inlet hose.

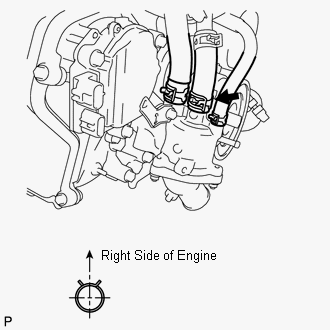

      GTY628796Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. CONNECT NO. 5 WATER BY-PASS HOSE
    1. Using needle-nose pliers, grip the claws of the clip and slide the clip to connect the No. 5 water by-pass hose.

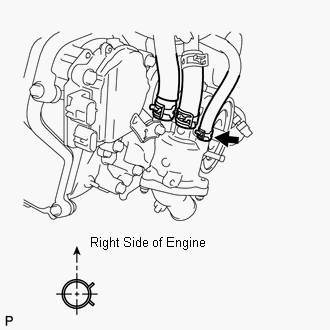

      GTY678513Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. CONNECT NO. 2 RADIATOR HOSE
  8. CONNECT ENGINE OIL LEVEL DIPSTICK GUIDE (for 2WD)
    1. Connect the dipstick guide with the bolt.

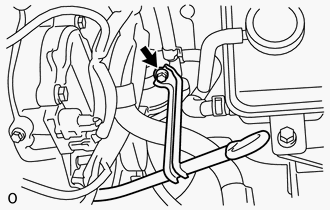

      GTY685898Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

  9. INSTALL V-RIBBED BELT

    Refer to PROCEDURE - Step 1

  10. INSTALL INTAKE AIR CONNECTOR PIPE

    Refer to PROCEDURE - Step 13

  11. INSTALL RADIATOR RESERVOIR ASSEMBLY

    See step  3

  12. ADD ENGINE COOLANT

    See step  8

  13. INSPECT FOR COOLANT LEAK

    Refer to PROCEDURE - Step 1

  14. INSTALL NO. 1 AIR CLEANER INLET

    Refer to PROCEDURE - Step 3

  15. INSTALL ENGINE ROOM SIDE COVER RH

    Refer to PROCEDURE - Step 15

  16. INSTALL AIR CLEANER INLET COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 7

  17. INSTALL V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 8

  18. INSTALL NO. 1 ENGINE UNDER COVER

    See step  13

  19. INSTALL FRONT WHEEL OPENING EXTENSION PAD LH (for AWD)

    Refer to PROCEDURE - Step 15

  20. INSTALL FRONT WHEEL OPENING EXTENSION PAD RH (for AWD)

    Refer to PROCEDURE - Step 16
