Installation [09/2015 - ]: Procedure

INSTALL STEERING COLUMN ASSEMBLY (TILT STEERING GEAR ASSEMBLY WITH MOTOR)
1. Install the steering column with the 4 nuts.
  Torque: 26 N*m (260 kgf*cm, 19 ft.*lbf)
2. Connect the connectors and wire harness clamps to the steering column.

INSTALL NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY (for AWD)

Install the clamp to the steering column hole cover.

Align the matchmarks on the No. 2 steering intermediate shaft and steering column.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

Matchmark

Install the bolt.
Torque: 35 N*m (360 kgf*cm, 26 ft.*lbf)

Align the matchmarks on the No. 2 steering intermediate shaft and power steering link.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

Matchmark

Install the bolt.
Torque: 35 N*m (360 kgf*cm, 26 ft.*lbf)

INSTALL NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY (for 2WD)

Install the clamp to the steering column hole cover.

Align the matchmarks on the No. 2 steering intermediate shaft and steering column.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

Matchmark

Install the bolt.
Torque: 35 N*m (360 kgf*cm, 26 ft.*lbf)

INSTALL STEERING SLIDING WITH SHAFT YOKE SUB-ASSEMBLY (for 2WD)

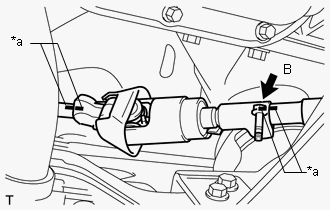

Align the matchmarks on the No. 2 steering intermediate shaft and steering sliding with shaft yoke.

TEXT IN ILLUSTRATION

Matchmark

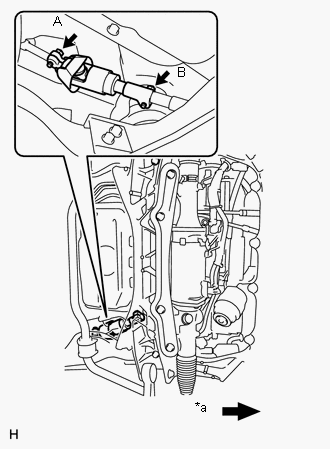

Align the matchmarks on the steering sliding with shaft yoke and power steering link.
Temporarily install bolt B.
NOTE:
Do not tighten the bolt.

Install bolt A and tighten bolt B.

TEXT IN ILLUSTRATION

*a	Front of the Vehicle

Torque: 35 N*m (360 kgf*cm, 26 ft.*lbf)

PLACE FRONT WHEELS FACING STRAIGHT AHEAD
INSTALL NO. 1 AIR DUCT SUB-ASSEMBLY
1. Attach the 2 claws to install the air duct.
2. Install the bolt.
  Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf)
3. Attach the 2 claws to install the wiring harness protector.
INSTALL NO. 1 LOWER INSTRUMENT PANEL AIRBAG ASSEMBLY
(Refer to INSTALLATION [09/2015 - ] )
INSTALL TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY
1. Install the turn signal switch assembly with spiral cable sub-assembly to the steering column with the clamp.
2. Connect the connectors to the turn signal switch assembly with spiral cable sub-assembly.
INSTALL STEERING COLUMN COVER (w/o Driver Monitor Camera)
1. Attach the claw to install the steering column cover upper.
2. Attach the 4 clips to install the steering column cover upper to the instrument cluster finish panel.
3. Attach the 2 claws to install the steering column cover lower.
  NOTE:
  Do not damage the tilt and telescopic switch.
4. Install the 3 screws.
INSTALL STEERING COLUMN COVER (w/ Driver Monitor Camera)
1. Connect the drive monitor connector.
2. Attach the claw to install the steering column cover upper.
3. Attach the 4 clips to install the steering column cover upper onto the instrument panel cluster finish panel.
4. Attach the 2 claws to install the steering column cover lower.
  NOTE:
  Do not damage the tilt and telescopic switch.
5. Install the 3 screws.
ADJUST SPIRAL CABLE SUB-ASSEMBLY
Refer to PROCEDURE - Step 5
INSTALL STEERING WHEEL ASSEMBLY
(Refer to INSTALLATION [09/2015 - ] )
INSPECT STEERING WHEEL CENTER POINT
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
- Reset the AUTO TILT AWAY function setting to the previous condition by changing the customize parameter (Refer to CUSTOMIZE PARAMETERS [09/2015 - ] ).
- When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [09/2015 - ] ).
INSTALL COWL TOP VENTILATOR LOUVER RH
Refer to PROCEDURE - Step 15
CHECK SRS WARNING LIGHT
(Refer to DIAGNOSIS SYSTEM [09/2015 - ] )
