Installation [09/2015 - ]: Procedure

INSTALL POWER STEERING ECU

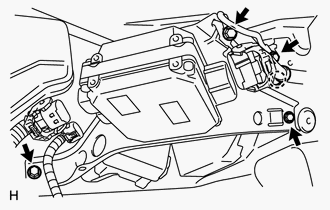

Attach the claw and install the power steering ECU with the 4 bolts.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

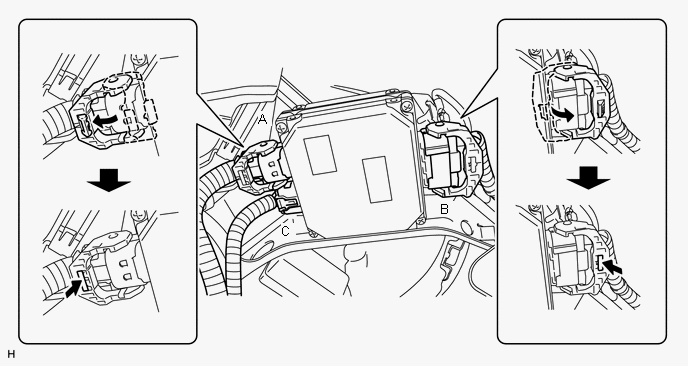

Connect connector C to the power steering ECU.

Connect the 2 power steering ECU connectors A and B and securely lock the connectors.

INSTALL AIR CLEANER INLET COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 7
INSTALL ENGINE ROOM SIDE COVER
Refer to PROCEDURE - Step 15
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
INSTALL COWL TOP VENTILATOR LOUVER RH
Refer to PROCEDURE - Step 15
PERFORM INITIALIZATION
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [09/2015 - ] ).
PERFORM VARIABLE GEAR RATIO STEERING SYSTEM CALIBRATION
(Refer to CALIBRATION [09/2015 - ] )
