Installation [09/2015 - ]: Procedure
- INSTALL RADIATOR SUPPORT LOWER
- Install the 2 radiator support lowers.
- INSTALL RADIATOR SUPPORT CUSHION
- Install the 2 radiator support cushions.

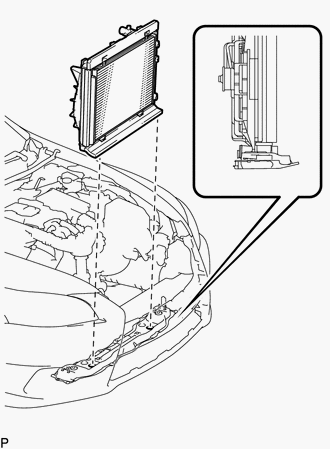

- INSTALL COOLER CONDENSER ASSEMBLY
Refer to PROCEDURE - Step 2
- INSTALL FAN SHROUD WITH FAN AND MOTOR
See step 6
- INSTALL RADIATOR ASSEMBLY
- CONNECT LIQUID TUBE SUB-ASSEMBLY A
- Remove the attached vinyl tape from the tube and the connecting part of the cooler condenser.
- Sufficiently apply compressor oil to a new O-ring and the fitting surface of the tube joint.
Compressor oil
ND-OIL 8 or equivalent
- Install the O-ring to the liquid tube sub-assembly.
- Connect the liquid tube sub-assembly to the cooler condenser with the 2 bolts.
Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)
NOTE:- When tightening the bolt, do not allow any tools to contact the tube.
- When tightening the bolt, hold a part of the tube near the connector.
- CONNECT DISCHARGE HOSE SUB-ASSEMBLY
- Remove the attached vinyl tape from the hose and the connecting part of the cooler condenser.
- Sufficiently apply compressor oil to a new O-ring and the fitting surface of the hose joint.
Compressor oil
ND-OIL 8 or equivalent
- Install the O-ring to the discharge hose sub-assembly.
- Connect the discharge hose sub-assembly to the cooler condenser with the bolt.
Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)
NOTE:- When tightening the bolt, do not allow any tools to contact the hose.
- When tightening the bolt, hold a part of the hose near the connector.
- INSTALL HOOD LOCK ASSEMBLY
- Install the hood lock assembly to the hood lock control cable.
- INSTALL HOOD LOCK CONTROL CABLE COVER
- Connect the wire harness clamp.
- Connect the hood lock control cable to the hood lock control cable cover.
- Attach the guide to install the hood lock control cable cover.
- INSTALL RADIATOR UPPER SUPPORT SUB-ASSEMBLY
- Connect the 3 connectors and attach the 5 wire harness clamps to connect the wire harness.
- Install the radiator upper support with the 5 bolts.
Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)
- CONNECT WIRE HARNESS
- Attach the 8 wire harness clamps to the fan shroud, and connect the 3 connectors.
- CONNECT HOOD LOCK ASSEMBLY
- Connect the connector.
- Connect the hood lock assembly with the 2 bolts and lock nut.
Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)
- Install the lock nut cap.
- CONNECT HOOD LOCK CONTROL CABLE COVER
- Connect the hood lock control cable cover with the 3 screws and attach the claw.
- INSTALL MILLIMETER WAVE RADAR SENSOR ASSEMBLY (w/ Dynamic Radar Cruise Control System)
Refer to PROCEDURE - Step 1
- INSTALL ENGINE ROOM ECU OUTLET DUCT
Refer to PROCEDURE - Step 86
- CONNECT NO. 1 OIL COOLER OUTLET HOSE
- Connect the No. 1 oil cooler out let hose to the radiator.
- CONNECT NO. 1 OIL COOLER INLET HOSE
- Connect the No. 1 oil cooler inlet hose to the radiator.
- INSTALL NO. 2 RADIATOR HOSE
- INSTALL NO. 1 RADIATOR HOSE

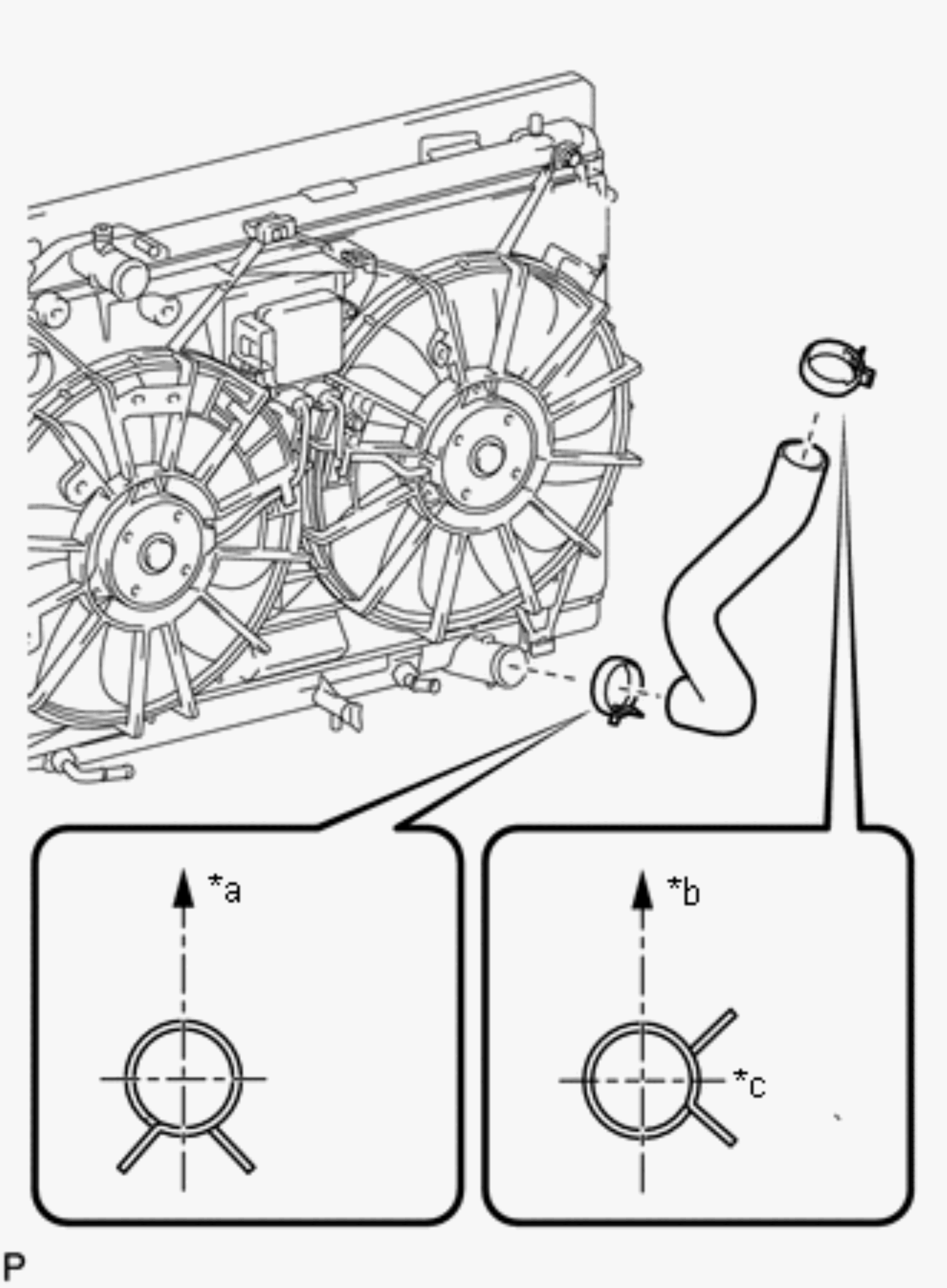

- Install the No. 1 radiator hose to the radiator and water outlet, and then secure it with the hose clamps.TEXT IN ILLUSTRATION
*1 Radiator Hose *2 Hose Clamp *3 Stopper *a Upper *b RH Side *c LH Side *d 1.0 to 5.0 mm (0.0393 to 0.196 in.) HINT:
- The direction of the hose clamp is indicated in the illustration.
- Insert the radiator hose into the stopper. Set the hose clamp so that the clearance between the hose clamp and the stopper is within 1.0 to 5.0 mm (0.0393 to 0.196 in.).
- Install the No. 1 radiator hose to the radiator and water outlet, and then secure it with the hose clamps.
- INSTALL RADIATOR RESERVOIR ASSEMBLY
See step 3
- ADD ENGINE COOLANT
See step 8
- CHARGE REFRIGERANT
Refer to PROCEDURE - Step 3
- INSPECT FOR COOLANT LEAK
Refer to PROCEDURE - Step 1
- ADD AUTOMATIC TRANSMISSION FLUID
(Refer to ADJUSTMENT [09/2015 - ] )
- INSPECT FOR REFRIGERANT LEAK
Refer to PROCEDURE - Step 5
- ADJUST MILLIMETER WAVE RADAR SENSOR ASSEMBLY (w/ Dynamic Radar Cruise Control System)
Refer to PROCEDURE - Step 1
- INSTALL NO. 1 ENGINE UNDER COVER
See step 13
- INSTALL NO. 1 AIR CLEANER INLET
Refer to PROCEDURE - Step 3
- INSTALL V-BANK COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 8
- INSTALL FRONT BUMPER REINFORCEMENT
(Refer to INSTALLATION [09/2015 - ] )
