Removal [08/2015 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus IS 300, 2023 Lexus IS 300, 2022 Lexus IS 300, 2021 Lexus IS 300, and 2020 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE GENERATOR ASSEMBLY

    Refer to PROCEDURE - Step 7

  2. REMOVE COMPRESSOR AND MAGNETIC CLUTCH

    Refer to PROCEDURE - Step 10 [08/2015 - 10/2017] , or refer to PROCEDURE - Step 10 [10/2017 - 11/2021] , or refer to PROCEDURE - Step 12 [11/2021 - 09/2022] , or refer to PROCEDURE - Step 13 [09/2022 - ]

  3. REMOVE NO. 1 COMPRESSOR MOUNTING BRACKET

    Refer to PROCEDURE - Step 3

  4. REMOVE NO. 2 WATER BY-PASS PIPE

    Refer to PROCEDURE - Step 16

  5. REMOVE WATER BY-PASS PIPE ASSEMBLY

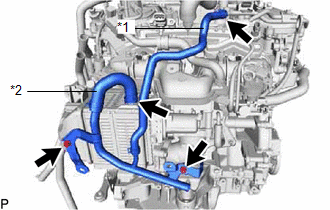

    1. Slide the clip and disconnect the No. 2 turbo water hose from the No. 1 turbo water pipe sub-assembly.
      GTY680127Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 2 Turbo Water Hose
      *2 No. 9 Water By-pass Hose
    2. Slide the clip and disconnect the No. 9 water by-pass hose from the intercooler assembly.
    3. Remove the 2 bolts and water by-pass pipe assembly from the intercooler assembly and No. 2 air tube.
  6. REMOVE PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY)

    Refer to PROCEDURE - Step 2

  7. DISCONNECT NO. 2 VACUUM TRANSMITTING HOSE ASSEMBLY

    Refer to PROCEDURE - Step 21

  8. DISCONNECT VACUUM TRANSMITTING HOSE ASSEMBLY

    Refer to PROCEDURE - Step 22

  9. REMOVE NO. 2 VENTILATION HOSE

    Refer to PROCEDURE - Step 15

  10. DISCONNECT NO. 3 WATER BY-PASS HOSE
    1. Disengage the clamp from the engine oil level dipstick guide.
      GTY668876Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Slide the clip and disconnect the No. 3 water by-pass hose from the water outlet sub-assembly.
  11. REMOVE INTAKE MANIFOLD WITH INTERCOOLER ASSEMBLY AND THROTTLE WITH MOTOR BODY ASSEMBLY
    1. Remove the bolt and wire harness clamp bracket from the intake manifold with intercooler assembly and throttle with motor body assembly.
      GTY657858Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 4 bolts, 2 nuts and intake manifold with intercooler assembly and throttle with motor body assembly.
      GTY684933Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 2 No. 1 intake manifold to head gaskets from the intake manifold with intercooler assembly and throttle with motor body assembly.
  12. REMOVE FRONT NO. 1 ENGINE MOUNTING BRACKET LH

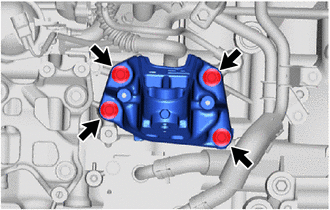

    1. Remove the 4 bolts and front No. 1 engine mounting bracket LH from the cylinder block sub-assembly.
      GTY657870Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE FRONT NO. 1 ENGINE MOUNTING BRACKET RH
    1. Remove the 4 bolts and front No. 1 engine mounting bracket RH from the cylinder block sub-assembly.
      GTY684940Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE ENGINE OIL LEVEL DIPSTICK GUIDE
    1. Remove the engine oil level dipstick.
    2. Remove the bolt and engine oil level dipstick guide.
      GTY633177Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the O-ring from the engine oil level dipstick guide.
  15. REMOVE IGNITION COIL ASSEMBLY

    Refer to PROCEDURE - Step 2

  16. DISCONNECT NO. 4 VENTILATION HOSE

    Refer to PROCEDURE - Step 1

  17. REMOVE NO. 5 EXHAUST MANIFOLD HEAT INSULATOR

    Refer to PROCEDURE - Step 3

  18. REMOVE OUTLET COMPRESSOR ELBOW
    1. Remove the 2 nuts and outlet compressor elbow from the turbocharger sub-assembly.
      GTY668873Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the gasket from the turbocharger sub-assembly.
  19. REMOVE NO. 1 HEAT INSULATOR BRACKET

    Refer to PROCEDURE - Step 9

  20. REMOVE NO. 2 HEAT INSULATOR BRACKET

    Refer to PROCEDURE - Step 8

  21. DISCONNECT INLET TURBO OIL PIPE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 10

  22. REMOVE TURBOCHARGER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 11

  23. REMOVE NO. 3 EXHAUST MANIFOLD HEAT INSULATOR

    Refer to PROCEDURE - Step 4

  24. REMOVE SENSOR WIRE
    1. Disconnect the fuel pressure sensor connector.
      GTY633929Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts and disconnect the sensor wire from the fuel delivery pipe sub-assembly.
      GTY668909Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the 4 direct fuel injector assembly connectors and remove the sensor wire.
  25. REMOVE WIRE HARNESS CLAMP BRACKET
    1. for Engine Front Side:
      1. Disconnect the oil pressure sender gauge assembly connector.
        GTY668842Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Remove the bolt and wire harness clamp bracket from the timing chain cover assembly.
    2. for Engine Upper Side:
      1. Remove the bolt and wire harness clamp bracket from the cylinder head cover sub-assembly.
        GTY668870Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. for Engine RH Side:
      1. Remove the 2 bolts and 2 wire harness clamp brackets from the stiffening crankcase assembly.
        GTY668872Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. for Engine Rear Side:
      1. Remove the bolt and wire harness clamp bracket from the cylinder head sub-assembly.
        GTY668871Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. REMOVE OIL FILLER CAP SUB-ASSEMBLY
    1. Remove the oil filler cap sub-assembly from the cylinder head cover sub-assembly.
  27. REMOVE OIL FILLER CAP GASKET
    1. Remove the oil filler cap gasket from the oil filler cap sub-assembly.
  28. REMOVE IDLER PULLEY SUB-ASSEMBLY

    Refer to PROCEDURE - Step 22

  29. REMOVE V-RIBBED BELT TENSIONER ASSEMBLY

    Refer to PROCEDURE - Step 23

  30. REMOVE NO. 1 TURBO WATER PIPE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 15

  31. REMOVE AIR CLEANER BRACKET

    Refer to PROCEDURE - Step 19

  32. REMOVE NO. 1 FUEL PIPE SUB-ASSEMBLY (for High Pressure)

    Refer to PROCEDURE - Step 6

  33. REMOVE FUEL DELIVERY PIPE (for Port Injection)

    Refer to PROCEDURE - Step 7

  34. REMOVE PORT FUEL INJECTOR ASSEMBLY

    Refer to PROCEDURE - Step 8

  35. REMOVE FUEL DELIVERY PIPE SUB-ASSEMBLY (for Direct Injection)

    Refer to PROCEDURE - Step 7

  36. REMOVE DIRECT FUEL INJECTOR ASSEMBLY

    Refer to PROCEDURE - Step 8

  37. REMOVE FUEL INJECTOR SEAL (for Direct Injection)

    Refer to PROCEDURE - Step 9

  38. REMOVE FUEL (ENGINE ROOM SIDE) PUMP ASSEMBLY (for High Pressure)

    Refer to PROCEDURE - Step 7

  39. REMOVE VACUUM PUMP ASSEMBLY

    Refer to PROCEDURE - Step 4

  40. REMOVE NO. 9 ENGINE WIRE
    1. Disconnect the oil pressure switching valve assembly connector.
      GTY642219Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 3 clamps and No. 9 engine wire from the No. 1 water by-pass pipe and water inlet housing.
  41. REMOVE WATER BY-PASS PIPE ASSEMBLY

    Refer to PROCEDURE - Step 5

  42. REMOVE NO. 4 WATER BY-PASS PIPE
    1. Slide the clip and disconnect the No. 4 water by-pass pipe from the oil cooler assembly.
      GTY642220Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 nuts, bolt and No. 4 water by-pass pipe from the cylinder block sub-assembly and water inlet housing.
    3. Remove the gasket from the water inlet housing.
  43. REMOVE OIL PRESSURE SWITCHING VALVE ASSEMBLY

    Refer to PROCEDURE - Step 4

  44. REMOVE WATER INLET HOUSING

    Refer to PROCEDURE - Step 7

  45. REMOVE THERMOSTAT (for Cylinder Block)

    Refer to PROCEDURE - Step 8
