Removal [08/2015 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus IS 300, 2023 Lexus IS 300, 2022 Lexus IS 300, 2021 Lexus IS 300, and 2020 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.

PRECAUTION
NOTE:
After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

Refer to PRECAUTION [08/2015 - 10/2016] , or refer to PRECAUTION [10/2016 - 10/2017] , or refer to PRECAUTION [10/2017 - 09/2020] , or refer to PRECAUTION [09/2020 - ]
DISCHARGE FUEL SYSTEM PRESSURE
Refer to PRECAUTION [08/2015 - 09/2020] , or refer to PRECAUTION [09/2020 - ]
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Refer to INITIALIZATION [08/2015 - 10/2016] , or refer to INITIALIZATION [10/2016 - 10/2017] , or refer to INITIALIZATION [10/2017 - 09/2020] , or refer to INITIALIZATION [09/2020 - 11/2021] , or refer to INITIALIZATION [11/2021 - 09/2022] , or refer to INITIALIZATION [09/2022 - 10/2023] , or refer to INITIALIZATION [10/2023 - ]
REMOVE INTAKE MANIFOLD
Refer to REMOVAL [08/2015 - ]
REMOVE NO. 1 FUEL PIPE SUB-ASSEMBLY
See step 6

DISCONNECT FUEL TUBE SUB-ASSEMBLY

NOTE:

Remove any foreign matter on the fuel tube connector and fuel pipe before performing this work.

Disconnect the fuel tube sub-assembly from the fuel delivery pipe.

Pull out the retainer to disengage the lock claws and pull off the fuel tube connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Retainer
*b	Fuel Tube Connector
*c	Nylon Tube
*d	O-ring
*e	Fuel Pipe
	Pull out
	Pull off

NOTE:

Be sure to disconnect the fuel tube connector by hand.

If the fuel tube connector and fuel pipe are stuck, push and pull the fuel tube connector to release it. Pull the fuel tube connector off of the fuel pipe carefully.
NOTE:
- Be sure to disconnect the fuel tube connector by hand.
- Do not scratch or allow any foreign matter to get on the parts when disconnecting them as the fuel tube connector has O-rings that seal the pipe (fuel pipe).
- Do not bend, twist, pinch or kink the nylon tube.
Check that there is no foreign matter on the sealing surfaces of the disconnected fuel lines. Clean them if necessary.
Cover the disconnected fuel pipe and fuel tube connector with plastic bags to prevent damage and contamination.

REMOVE FUEL DELIVERY PIPE

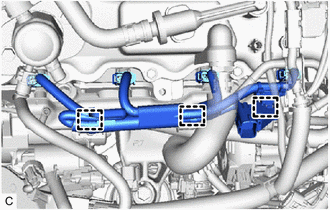

Disengage the 3 clamps to disconnect the No. 6 engine wire from the fuel delivery pipe.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

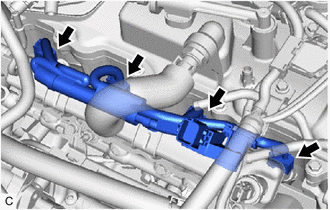

Disconnect the 4 port fuel injector assembly connectors to remove the No. 6 engine wire.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

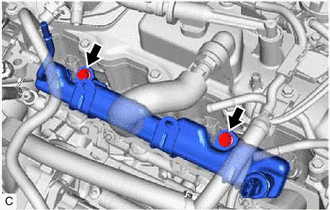

Remove the 2 bolts and fuel delivery pipe with the 4 port fuel injector assemblies from the cylinder head sub-assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

If fuel intrudes into the combustion chamber, there may be adverse effects to the engine main body.
Be careful not to drop the port fuel injector assemblies when removing the fuel delivery pipe.

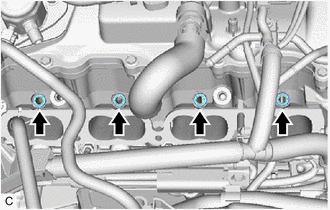

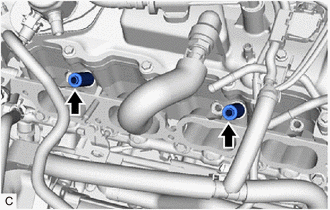

Remove the 2 fuel delivery spacers from the cylinder head sub-assembly.

Remove the 4 injector vibration insulators from the cylinder head sub-assembly.

REMOVE PORT FUEL INJECTOR ASSEMBLY

Pull the 4 port fuel injector assemblies out of the fuel delivery pipe.

Remove the O-ring from each port fuel injector assembly.
Attach a tag or label with the corresponding cylinder number to each port fuel injector assembly so that they can be installed to their original locations.
NOTE:
Cover the port fuel injector assemblies with plastic bags to prevent damage and contamination.
