Removal [08/2015 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus IS 300, 2023 Lexus IS 300, 2022 Lexus IS 300, 2021 Lexus IS 300, and 2020 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE TURBOCHARGER SUB-ASSEMBLY

    Refer to REMOVAL [08/2015 - ]

  2. REMOVE COMPRESSOR ASSEMBLY WITH PULLEY

    Refer to REMOVAL [08/2015 - 10/2017] , or refer to REMOVAL [10/2017 - 11/2021] , or refer to REMOVAL [11/2021 - 09/2022] , or refer to REMOVAL [09/2022 - ]

  3. REMOVE NO. 1 COMPRESSOR MOUNTING BRACKET

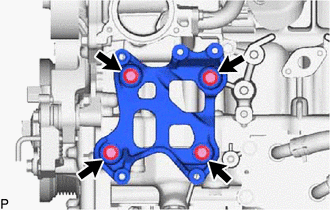

    1. Remove the 4 bolts and No. 1 compressor mounting bracket.
      GTY613559Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE NO. 3 EXHAUST MANIFOLD HEAT INSULATOR
    1. Remove the 2 bolts and No. 3 exhaust manifold heat insulator.
      GTY613560Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE WATER BY-PASS PIPE ASSEMBLY

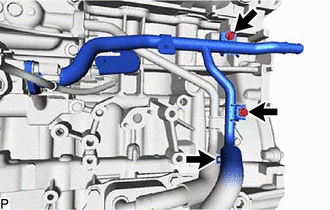

    1. Slide the clip and disconnect the No. 5 water by-pass hose from the water by-pass pipe assembly.
      GTY656836Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts to disconnect the water by-pass pipe assembly from the cylinder block sub-assembly.

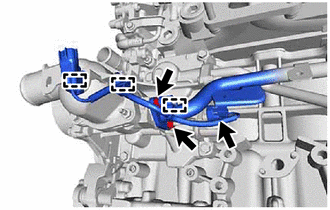

    3. Disconnect the oil pressure switching valve assembly connector.
      GTY640315Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disengage the 3 clamps to disconnect the wire harness from the water inlet.
    5. Remove the 2 nuts and disconnect the water by-pass pipe assembly from the water inlet housing.
    6. Remove the gasket from the water inlet housing.
  6. REMOVE NO. 4 WATER BY-PASS PIPE

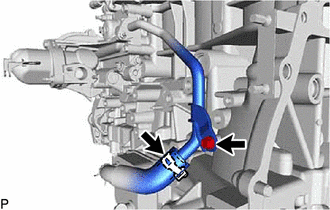

    1. Slide the clip and disconnect the No. 4 water by-pass hose from the No. 4 water by-pass pipe.
      GTY682264Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt to disconnect the No. 4 water by-pass pipe from the cylinder block sub-assembly.

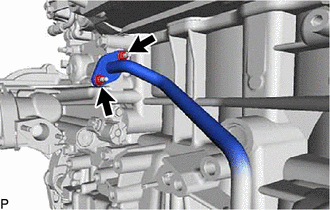

    3. Remove the 2 nuts and disconnect the No. 4 water by-pass pipe from the water inlet housing.
      GTY656834Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the gasket from the water inlet housing.
  7. REMOVE WATER INLET HOUSING

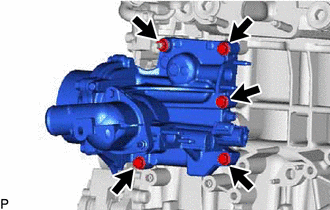

    1. Remove the 4 bolts, nut and water inlet housing from the cylinder block sub-assembly.
      GTY662001Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 3 gaskets from the water inlet housing.
  8. REMOVE THERMOSTAT (for Cylinder Block)
    1. Remove the thermostat (for Cylinder Block) from the cylinder block sub-assembly.
    2. Remove the gasket from the thermostat (for Cylinder Block).
