Removal [08/2015 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus IS 300, 2023 Lexus IS 300, 2022 Lexus IS 300, 2021 Lexus IS 300, and 2020 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE THROTTLE BODY WITH MOTOR ASSEMBLY

    Refer to REMOVAL [08/2015 - ]

  2. DISCONNECT NO. 2 TURBO WATER HOSE

    See step  2

  3. DISCONNECT NO. 1 VACUUM TRANSMITTING HOSE

    See step  3

  4. DISCONNECT NO. 8 WATER BY-PASS HOSE

    See step  4

  5. DISCONNECT NO. 9 WATER BY-PASS HOSE

    See step  5

  6. SEPARATE HEATER WATER PUMP ASSEMBLY

    See step  6

  7. DISCONNECT ENGINE WIRE

    See step  7

  8. DISCONNECT NO. 1 AIR TUBE

    See step  8

  9. DISCONNECT INTERCOOLER ASSEMBLY

    See step  9

  10. REMOVE PURGE VALVE (PURGE VSV)

    Refer to REMOVAL [08/2015 - ]

  11. REMOVE INTERCOOLER RESERVE TANK ASSEMBLY
    1. Disengage the 2 fuel tube sub-assemblies from the intercooler reserve tank assembly.

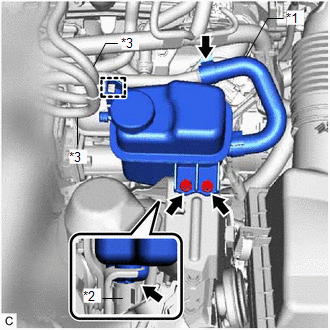

      GTY654343Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 3 Intercooler Cooling Water Hose Assembly
      *2 No. 4 Intercooler Cooling Water Hose Assembly
      *3 Fuel Tube Sub-assembly
    2. Slide the clip and disconnect the No. 3 intercooler cooling water hose assembly from the No. 2 water by-pass pipe.
    3. Remove the 2 bolts and intercooler reserve tank assembly from the intercooler reserve tank bracket.
    4. Slide the clip and disconnect the No. 4 intercooler cooling water hose assembly from the intercooler reserve tank assembly.
  12. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3 [08/2015 - 10/2016] , or refer to PROCEDURE - Step 3 [10/2016 - 09/2020] , or refer to PROCEDURE - Step 3 [09/2020 - ]

  13. REMOVE AIR CLEANER HOSE ASSEMBLY

    See step  4

  14. REMOVE FUEL HOSE BRACKET
    1. Disengage the clamp.

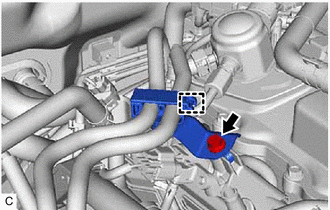

      GTY619498Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 fuel tube sub-assemblies from the fuel hose bracket.
    3. Remove the bolt and fuel hose bracket from the intake manifold.
  15. REMOVE NO. 2 VENTILATION HOSE
    1. Slide the 2 clips and remove the No. 2 ventilation hose from the intake manifold and cylinder head cover sub-assembly.

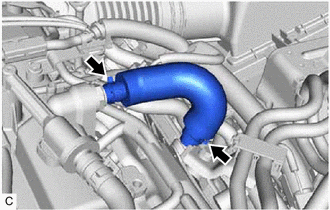

      GTY619497Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE NO. 2 WATER BY-PASS PIPE
    1. Slide the 2 clips and disconnect the No. 1 turbo water hose and No. 2 turbo water hose from the No. 2 water by-pass pipe.

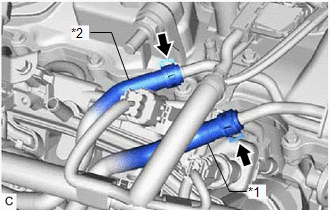

      GTY626675Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 1 Turbo Water Hose
      *2 No. 2 Turbo Water Hose
    2. Remove the 2 bolts and No. 2 water by-pass pipe from the intake manifold.

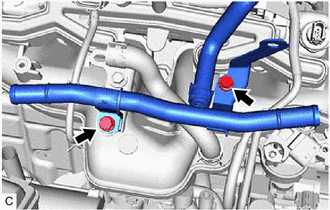

      GTY674030Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. DISCONNECT INLET HEATER WATER HOSE A

    Refer to PROCEDURE - Step 29 [08/2015 - 10/2016] , or refer to PROCEDURE - Step 28 [10/2016 - 09/2020] , or refer to PROCEDURE - Step 28 [09/2020 - ]

  18. DISCONNECT OUTLET HEATER WATER HOSE A

    Refer to PROCEDURE - Step 30 [08/2015 - 10/2016] , or refer to PROCEDURE - Step 29 [10/2016 - 09/2020] , or refer to PROCEDURE - Step 29 [09/2020 - ]

  19. DISCONNECT ENGINE WIRE
    1. Remove the 2 bolts.
      GTY673235Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Connector
    2. Disconnect the 6 connectors.
    3. Disengage the 2 clamps.
    4. Disconnect the 5 connectors.
      GTY619508Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. DISCONNECT NO. 3 WATER BY-PASS HOSE
    1. Disengage the clamp.

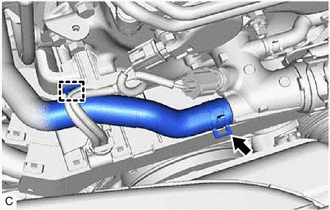

      GTY619507Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Slide the clip and disconnect the No. 3 water by-pass hose from the water outlet sub-assembly.
  21. DISCONNECT NO. 2 VACUUM TRANSMITTING HOSE ASSEMBLY
    1. Disengage the clamp from the cylinder head cover sub-assembly.

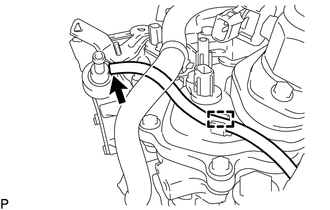

      GTY627444Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the No. 2 vacuum transmitting hose assembly from the vacuum pump assembly.
  22. DISCONNECT VACUUM TRANSMITTING HOSE ASSEMBLY
    1. Disengage the 4 clamps and disconnect the vacuum transmitting hose assembly from the cylinder head cover sub-assembly.

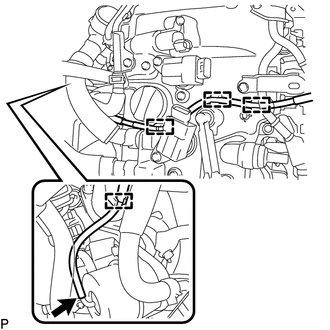

      GTY627445Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the vacuum transmitting hose assembly from the waste gate valve actuator with bracket assembly.
  23. DISCONNECT INLET HEATER WATER HOSE B
    1. Slide the clip and disconnect the inlet heater water hose B from the No. 5 water by-pass pipe.

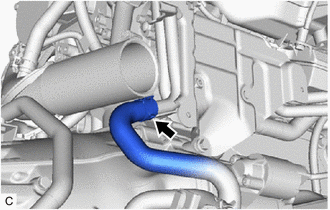

      GTY619481Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. REMOVE INTAKE MANIFOLD
    1. Remove the 4 bolts, 2 nuts and intake manifold from the cylinder head sub-assembly and intercooler support bracket sub-assembly.

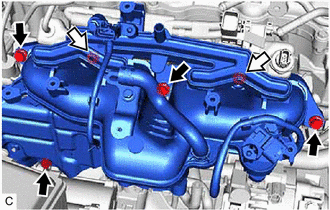

      GTY655484Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Nut
    2. Remove the 2 bolts, nut and No. 5 water by-pass pipe from the intercooler support bracket sub-assembly.

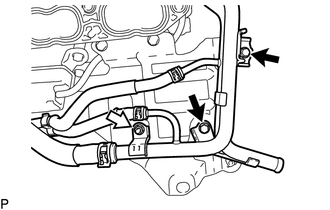

      GTY654242Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Nut
    3. Remove the 2 bolts and intercooler support bracket sub-assembly from the intake manifold.

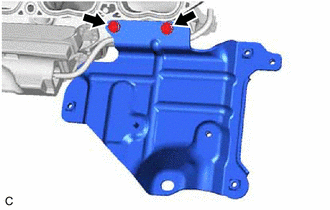

      GTY619523Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Align the intercooler support bracket sub-assembly with its marked original position and remove it.

    4. Remove the 2 intake manifold gaskets from the intake manifold.

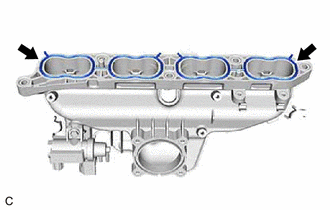

      GTY674033Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. REMOVE NO. 2 TURBO PRESSURE SENSOR
    1. Disengage the No. 1 vacuum transmitting hose assembly from the intake manifold.

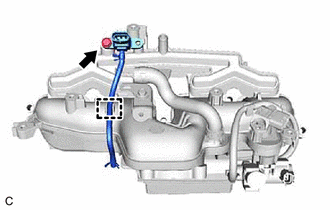

      GTY654573Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and No. 2 turbo pressure sensor from the intake manifold.
  26. REMOVE NO. 2 FUEL VAPOR FEED HOSE
    1. Slide the clip and remove the No. 2 fuel vapor feed hose from the intake manifold.

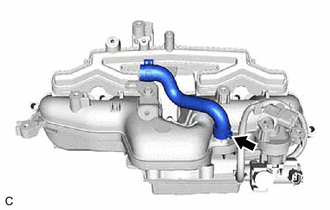

      GTY619520Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. REMOVE BRACKET
    1. Remove the bolt and bracket from the intake manifold.

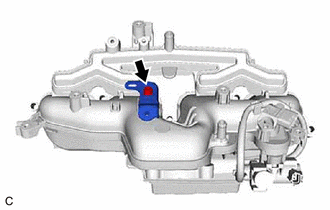

      GTY619521Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. REMOVE NO. 3 VACUUM TRANSMITTING HOSE ASSEMBLY
    1. Disengage the 2 clamps.

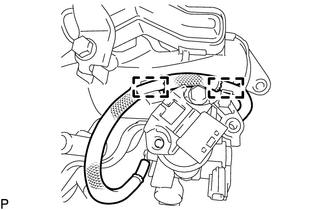

      GTY505757Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the No. 3 vacuum transmitting hose assembly from the vacuum surge tank and vacuum regulating valve assembly.

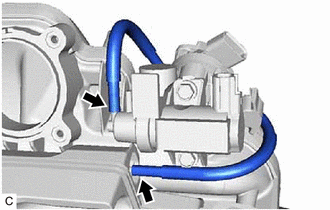

      GTY654571Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. REMOVE NO. 1 TURBO PRESSURE SENSOR
    1. Remove the bolt and No. 1 turbo pressure sensor from the intake manifold.

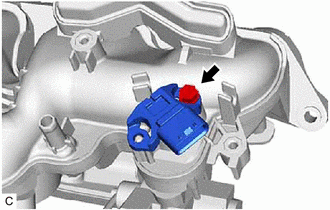

      GTY654580Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. REMOVE VACUUM REGULATING VALVE ASSEMBLY
    1. Remove the 2 bolts and vacuum regulating valve assembly from the intake manifold.

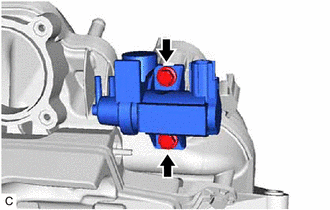

      GTY681768Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  31. REMOVE NO. 4 VACUUM TRANSMITTING HOSE ASSEMBLY
    1. Disengage the 2 clamps and remove the No. 4 vacuum transmitting hose assembly from the vacuum surge tank.

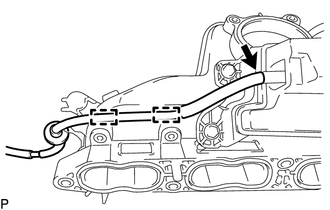

      GTY505754Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  32. REMOVE VACUUM SURGE TANK
    1. Remove the 3 bolts and vacuum surge tank from the intake manifold.

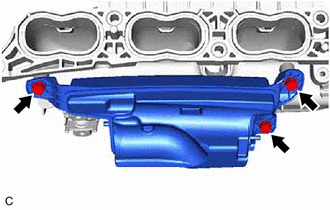

      GTY619519Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
