Roof Headlining: Removal

  1. REMOVE FRONT SEAT HEADREST ASSEMBLY (for Power Seat)
  2. REMOVE FRONT OUTER SEAT TRACK BRACKET COVER LH (for Power Seat) (See Step 2 in  REMOVAL  )
  3. REMOVE FRONT INNER SEAT TRACK BRACKET COVER LH (for Power Seat)
  4. REMOVE REAR OUTER SEAT TRACK COVER LH (for Power Seat) (See Step 4 in  REMOVAL  )
  5. REMOVE REAR INNER SEAT TRACK COVER LH (for Power Seat)
  6. REMOVE FRONT SEAT ASSEMBLY LH (for Power Seat) (See Step 6 in  REMOVAL  )
  7. REMOVE FRONT OUTER SEAT TRACK BRACKET COVER RH (for Power Seat)
  8. REMOVE FRONT INNER SEAT TRACK BRACKET COVER RH (for Power Seat)
  9. REMOVE REAR OUTER SEAT TRACK COVER RH (for Power Seat)
  10. REMOVE REAR INNER SEAT TRACK COVER RH (for Power Seat)
  11. REMOVE FRONT SEAT ASSEMBLY RH (for Power Seat)
  12. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL (for Manual Seat)
    CAUTION:

    Wait for 90 seconds after disconnecting the cable to prevent the airbag from deploying (See  PRECAUTION  ).

  13. REMOVE FRONT SEAT HEADREST ASSEMBLY (for Manual Seat)
  14. REMOVE FRONT INNER SEAT TRACK BRACKET COVER LH (for Manual Seat) (See Step 3 in  REMOVAL  )
  15. REMOVE FRONT OUTER SEAT TRACK BRACKET COVER LH (for Manual Seat) (See Step 4 in  REMOVAL  )
  16. REMOVE REAR OUTER SEAT TRACK COVER LH (for Manual Seat) (See Step 5 in  REMOVAL  )
  17. REMOVE REAR INNER SEAT TRACK COVER LH (for Manual Seat) (See Step 6 in  REMOVAL  )
  18. REMOVE FRONT SEAT ASSEMBLY LH (for Manual Seat) (See Step 7 in  REMOVAL  )
  19. REMOVE FRONT INNER SEAT TRACK BRACKET COVER RH (for Manual Seat)
  20. REMOVE FRONT OUTER SEAT TRACK BRACKET COVER RH (for Manual Seat)
  21. REMOVE REAR OUTER SEAT TRACK COVER RH (for Manual Seat)
  22. REMOVE REAR INNER SEAT TRACK COVER RH (for Manual Seat)
  23. REMOVE FRONT SEAT ASSEMBLY RH (for Manual Seat)
  24. REMOVE REAR SEAT CUSHION ASSEMBLY (See  REMOVAL  )
  25. REMOVE REAR SEAT HEADREST ASSEMBLY
  26. REMOVE REAR CENTER SEAT HEADREST ASSEMBLY
  27. REMOVE REAR SEATBACK ASSEMBLY (See Step 4 in  REMOVAL  )
  28. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
  29. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transmission) (See Step 4 in  REMOVAL  )
  30. REMOVE UPPER NO. 1 CONSOLE PANEL GARNISH (for Automatic Transmission) (See Step 6 in  REMOVAL  )
  31. REMOVE UPPER NO. 2 CONSOLE PANEL GARNISH (for Automatic Transmission) (See Step 8 in  REMOVAL  )
  32. REMOVE CONSOLE PANEL SUB-ASSEMBLY (for Automatic Transmission) (See Step 9 in  REMOVAL  )
  33. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission) (See Step 5 in  REMOVAL  )
  34. REMOVE REAR CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission) (See Step 9 in  REMOVAL  )
  35. REMOVE FRONT CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission) (See Step 10 in  REMOVAL  )
  36. REMOVE FRONT ASH RECEPTACLE SUB-ASSEMBLY (See Step 11 in  REMOVAL  )
  37. REMOVE CONSOLE BOX REGISTER ASSEMBLY (See Step 12 in  REMOVAL  )
  38. REMOVE CONSOLE BOX (See Step 13 in  REMOVAL  )
  39. REMOVE NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY (See Step 14 in  REMOVAL  )
  40. REMOVE CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL (See Step 15 in  REMOVAL  )
  41. REMOVE MULTI-DISPLAY WITH RADIO RECEIVER ASSEMBLY (w/ Navigation System) (See Step 17 in  REMOVAL  )
  42. REMOVE INTEGRATION CONTROL PANEL WITH RADIO RECEIVER ASSEMBLY (w/o Navigation System) (See Step 13 in  REMOVAL  )
  43. REMOVE LOWER NO. 3 STEERING WHEEL COVER (See Step 3 in  REMOVAL  )
  44. REMOVE LOWER NO. 2 STEERING WHEEL COVER (See Step 4 in  REMOVAL  )
  45. REMOVE STEERING PAD (See Step 5 in  REMOVAL  )
  46. REMOVE STEERING WHEEL ASSEMBLY (See Step 11 in  REMOVAL  )
  47. REMOVE STEERING COLUMN COVER (for Power Tilt and Power Telescopic) (See Step 12 in  REMOVAL  )
  48. REMOVE STEERING COLUMN COVER (for Manual Tilt and Telescopic) (See Step 12 in  REMOVAL  )
  49. REMOVE TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY (See Step 13 in  REMOVAL  )
  50. REMOVE FRONT DOOR SCUFF PLATE LH (w/o Illumination)
    1. Put protective tape around the front door scuff plate.
    2. Using a molding remover, disengage the 4 clips.
      Fig 1: Disengaging Clips
      G04051675Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the 7 claws and remove the front door scuff plate LH.
  51. REMOVE FRONT DOOR SCUFF PLATE RH (w/o Illumination)
    Fig 2: Locating Claws For Front Door Scuff Plate
    G04051747Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  52. REMOVE FRONT DOOR SCUFF PLATE LH (w/ Illumination)
    1. Put protective tape around the front door scuff plate.
    2. Using a molding remover, disengage the 4 clips.
      Fig 3: Disengaging Clips
      G04051677Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the 7 claws and remove the front door scuff plate LH.
    4. Disconnect the connector.
  53. REMOVE FRONT DOOR SCUFF PLATE RH (w/ Illumination)

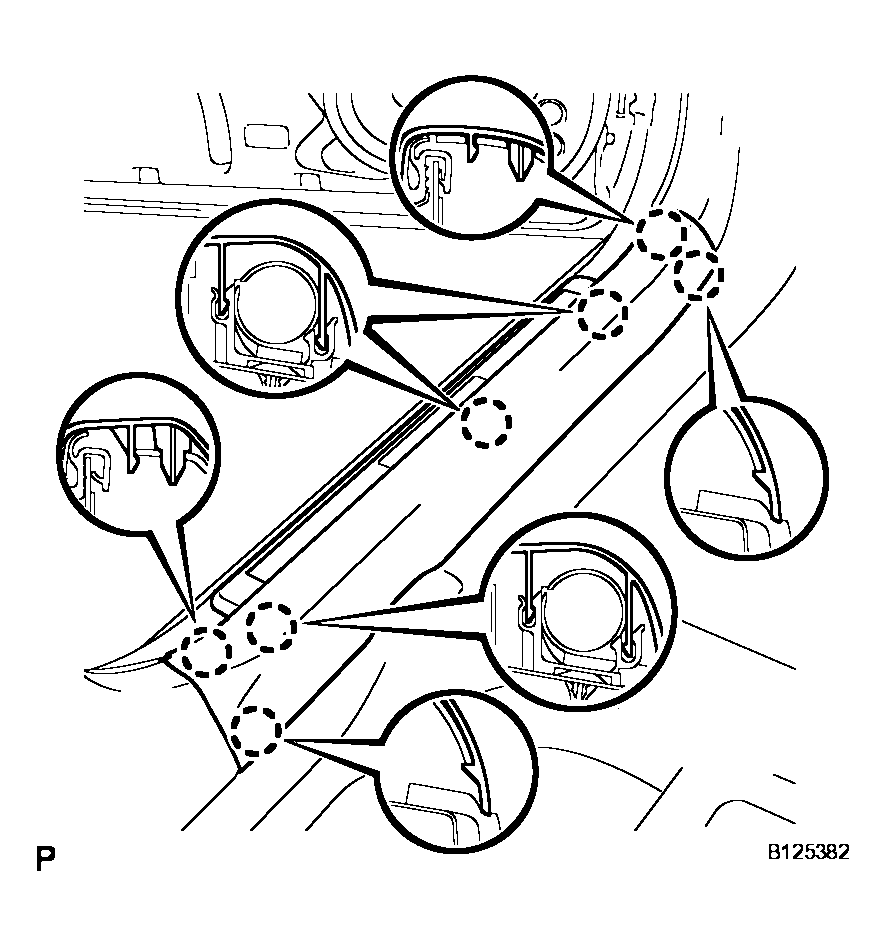

    Fig 4: Locating Claws For Front Door Scuff Plate
    G04051747Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  54. REMOVE FRONT DOOR OPENING TRIM COVER LH
    1. Disengage the 4 claws and remove the front door opening trim cover LH.
  55. REMOVE FRONT DOOR OPENING TRIM COVER RH

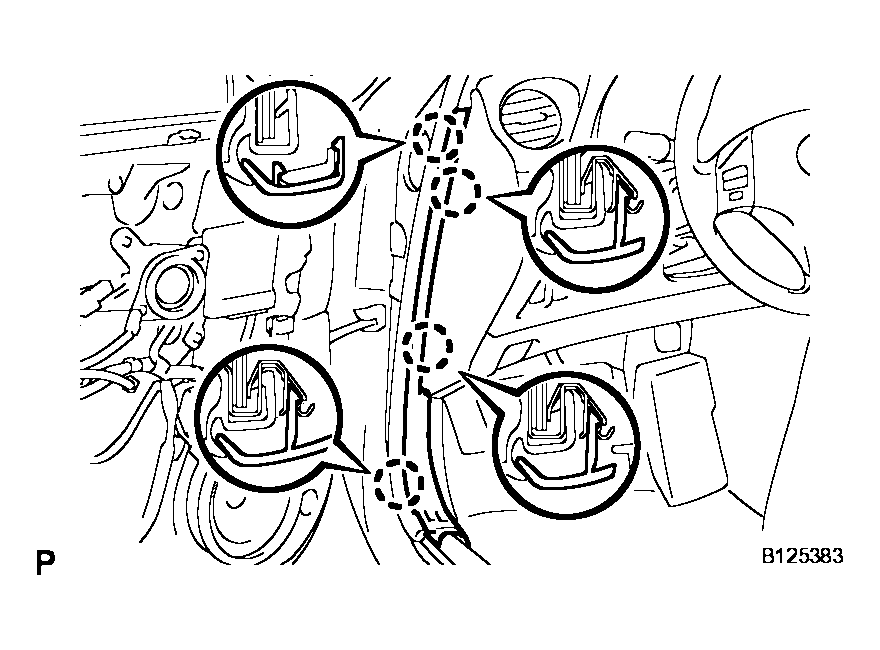

    Fig 5: Removing Front Door Opening Trim Cover RH
    G04051679Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  56. REMOVE FRONT PILLAR GARNISH LH
    1. Disengage the 2 clips from the vehicle body.
    2. Cut off the clip <A>.
    3. Disengage the claw and remove the front pillar garnish LH.
    4. Remove the clip <A> from the vehicle body.

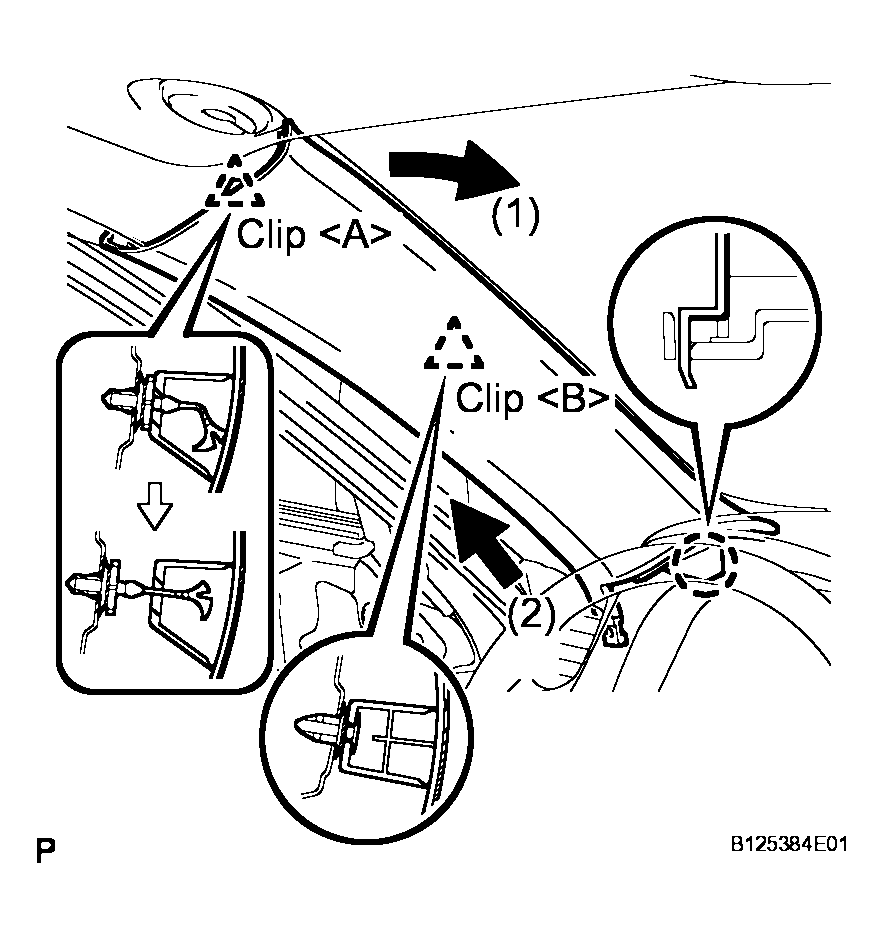

      Fig 6: Removing Front Pillar Garnish LH
      G04051680Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Protect the curtain shield airbag assembly.
      1. Thoroughly cover the airbag with a cloth or nylon sheet and fix the ends of the cover with adhesive tape, as shown in Fig 7 .
        NOTE: Cover the curtain shield airbag with a protective cover as soon as the front pillar garnish is removed.
  57. REMOVE FRONT PILLAR GARNISH RH
  58. REMOVE SIDE INSTRUMENT PANEL LH (See Step 28 in  REMOVAL  )
  59. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (See Step 29 in  REMOVAL  )

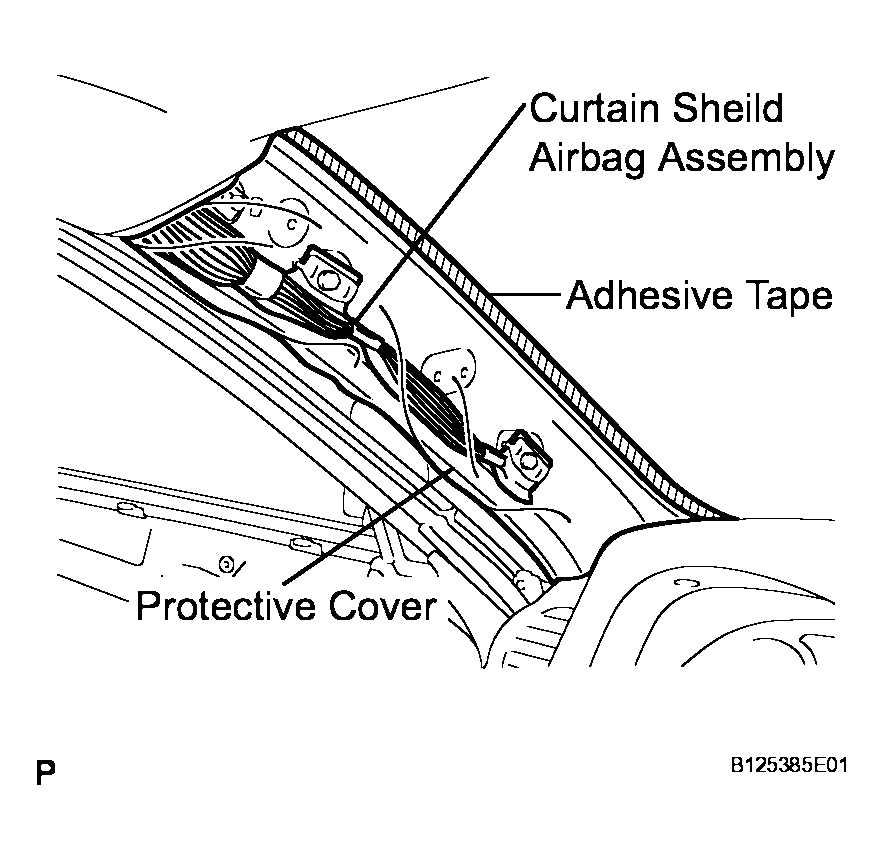

    Fig 7: Protecting Curtain Shield Airbag Assembly
    G04051681Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  60. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY (See Step 30 in  REMOVAL  )
  61. REMOVE DRIVER SIDE KNEE AIRBAG ASSEMBLY (See Step 9 in  REMOVAL  )
  62. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (See Step 32 in  REMOVAL  )
  63. REMOVE COMBINATION METER ASSEMBLY (See Step 33 in  REMOVAL  )
  64. REMOVE SIDE INSTRUMENT PANEL RH (See Step 37 in  REMOVAL  )
  65. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (See Step 38 in  REMOVAL  )
  66. REMOVE FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY (See Step 8 in  REMOVAL  )
  67. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY (See Step 40 in  REMOVAL  )
  68. REMOVE NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY (See Step 43 in  REMOVAL  )
  69. REMOVE NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY (See Step 44 in  REMOVAL  )
  70. REMOVE NO. 3 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY (See Step 45 in  REMOVAL  )
  71. REMOVE FRONT STEREO COMPONENT SPEAKER ASSEMBLY (w/ Front Center Speaker) (See Step 2 in  REMOVAL  )
  72. REMOVE NO. 2 CONSOLE BOX DUCT (for Automatic Transmission) (See Step 47 in  REMOVAL  )
  73. REMOVE NO. 1 CONSOLE BOX DUCT (for Automatic Transmission) (See Step 48 in  REMOVAL  )
  74. REMOVE NO. 2 CONSOLE BOX DUCT (for Manual Transmission) (See Step 49 in  REMOVAL  )
  75. DISCONNECT PASSENGER AIRBAG CONNECTOR (See  REMOVAL  )
  76. REMOVE INSTRUMENT PANEL SAFETY PAD ASSEMBLY (See Step 51 in  REMOVAL  )
  77. REMOVE INSTRUMENT PANEL CLIP (See Step 52 in  REMOVAL  )
  78. REMOVE INSTRUMENT PANEL STAY (See Step 53 in  REMOVAL  )
  79. REMOVE REAR NO. 1 FLOOR PANEL BRACE (for 2GR-FSE) (See  REMOVAL  )
  80. REMOVE FRONT CENTER FLOOR BRACE (for 2GR-FSE) (See Step 2 in  REMOVAL  )
  81. DISCONNECT OXYGEN SENSOR (for 2GR-FSE) (See Step 3 in  REMOVAL  )
  82. REMOVE FRONT EXHAUST PIPE ASSEMBLY (for 2GR-FSE) (See Step 4 in  REMOVAL  )
  83. REMOVE FRONT NO. 1 FLOOR HEAT INSULATOR (for 2GR-FSE) (See Step 2 in  REMOVAL  )
  84. SEPARATE FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY (for 2GR-FSE) (See Step 14 in  REMOVAL  )
  85. REMOVE TRANSMISSION FLOOR SHIFT ASSEMBLY (for 2GR-FSE) (See Step 15 in  REMOVAL  )
  86. REMOVE REAR NO. 1 FLOOR PANEL BRACE (for 4GR-FSE 2WD) (See  REMOVAL  )
  87. REMOVE FRONT CENTER FLOOR BRACE (for 4GR-FSE 2WD) (See Step 2 in  REMOVAL  )
  88. DISCONNECT OXYGEN SENSOR (for 4GR-FSE 2WD) (See Step 3 in  REMOVAL  )
  89. REMOVE FRONT EXHAUST PIPE ASSEMBLY (for 4GR-FSE 2WD) (See Step 5 in  REMOVAL  )
  90. REMOVE FRONT NO. 1 FLOOR HEAT INSULATOR (for 4GR-FSE 2WD) (See Step 2 in  REMOVAL  )
  91. SEPARATE FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY (for 4GR-FSE 2WD) (See Step 14 in  REMOVAL  )
  92. REMOVE TRANSMISSION FLOOR SHIFT ASSEMBLY (for 4GR-FSE 2WD) (See Step 15 in  REMOVAL  )
  93. REMOVE REAR NO. 1 FLOOR PANEL BRACE (for 4GR-FSE 4WD) (See  REMOVAL  )
  94. REMOVE FRONT CENTER FLOOR BRACE (for 4GR-FSE 4WD) (See Step 2 in  REMOVAL  )
  95. DISCONNECT OXYGEN SENSOR (for 4GR-FSE 4WD) (See Step 4 in  REMOVAL  )
  96. REMOVE FRONT EXHAUST PIPE ASSEMBLY (for 4GR-FSE 4WD) (See Step 5 in  REMOVAL  )
  97. REMOVE FRONT NO. 1 FLOOR HEAT INSULATOR (for 4GR-FSE 4WD) (See Step 2 in  REMOVAL  )
  98. SEPARATE FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY (for 4GR-FSE 4WD) (See Step 14 in  REMOVAL  )
  99. REMOVE TRANSMISSION FLOOR SHIFT ASSEMBLY (for 4GR-FSE 4WD) (See Step 15 in  REMOVAL  )
  100. REMOVE NO. 1 SHIFT AND SELECT LEVER BOOT (for Manual Transmission) (See Step 9 in  REMOVAL  )
  101. REMOVE SHIFT LEVER CAP (for Manual Transmission) (See Step 10 in  REMOVAL  )
  102. REMOVE FLOOR SHIFT LEVER ASSEMBLY (for Manual Transmission) (See Step 31 in  REMOVAL  )
  103. REMOVE REAR DOOR SCUFF PLATE LH
    1. Put protective tape around the rear door scuff plate.
    2. Using a molding remover, disengage the 2 clips.

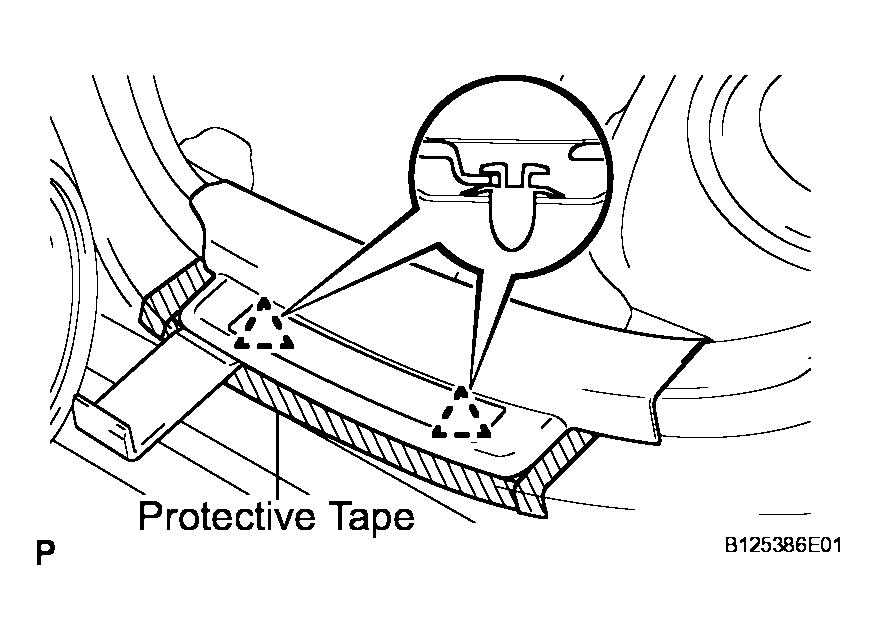

      Fig 8: Disengaging Clips
      G04051682Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the 5 claws and remove the rear door scuff plate LH.
  104. REMOVE REAR DOOR SCUFF PLATE RH
    Fig 9: Removing Rear Door Scuff Plate LH
    G04051683Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  105. REMOVE LAP BELT OUTER ANCHOR COVER
    1. Disengage the 2 claws and remove the lap belt outer anchor cover.

      HINT:

      Use the same procedure to remove the cover on the other side.

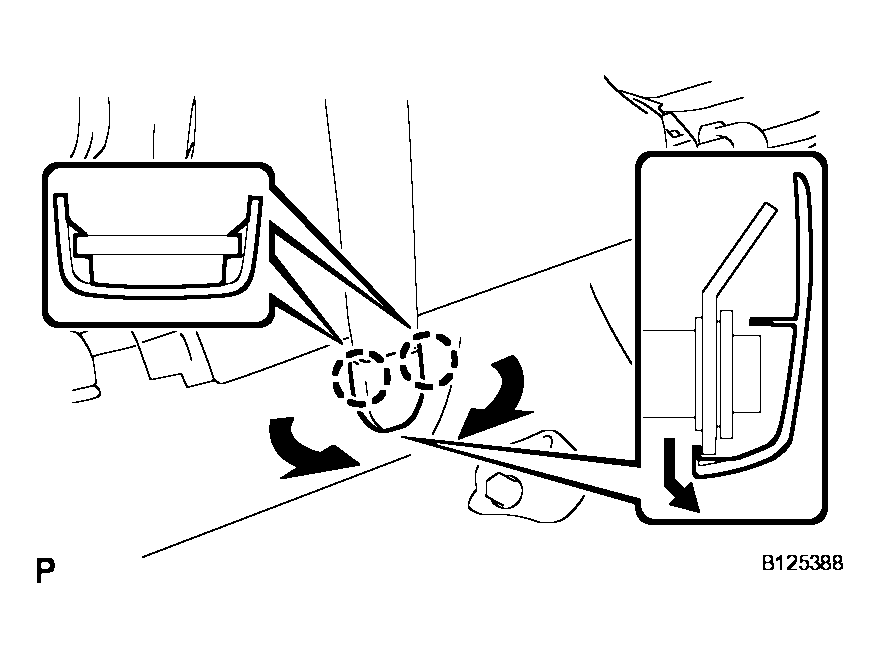

    Fig 10: Removing Lap Belt Outer Anchor Cover
    G04051684Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  106. SEPARATE FRONT SEAT OUTER BELT ASSEMBLY LH
    1. Remove the bolt and separate the front seat outer belt assembly LH.
  107. SEPARATE FRONT SEAT OUTER BELT ASSEMBLY RH
    Fig 11: Removing Bolt & Separate Front Seat Outer Belt Assembly LH
    G04051685Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  108. REMOVE LOWER CENTER PILLAR GARNISH LH
    1. Disengage the 3 claws and 5 clips, and remove the lower center pillar garnish LH.
  109. REMOVE LOWER CENTER PILLAR GARNISH RH
    Fig 12: Removing Lower Center Pillar Garnish LH
    G04051686Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  110. REMOVE CENTER PILLAR GARNISH LH
    1. Remove the 2 screws.
    2. Disengage the 3 claws and remove the center pillar garnish LH by pulling it down.
  111. REMOVE CENTER PILLAR GARNISH RH

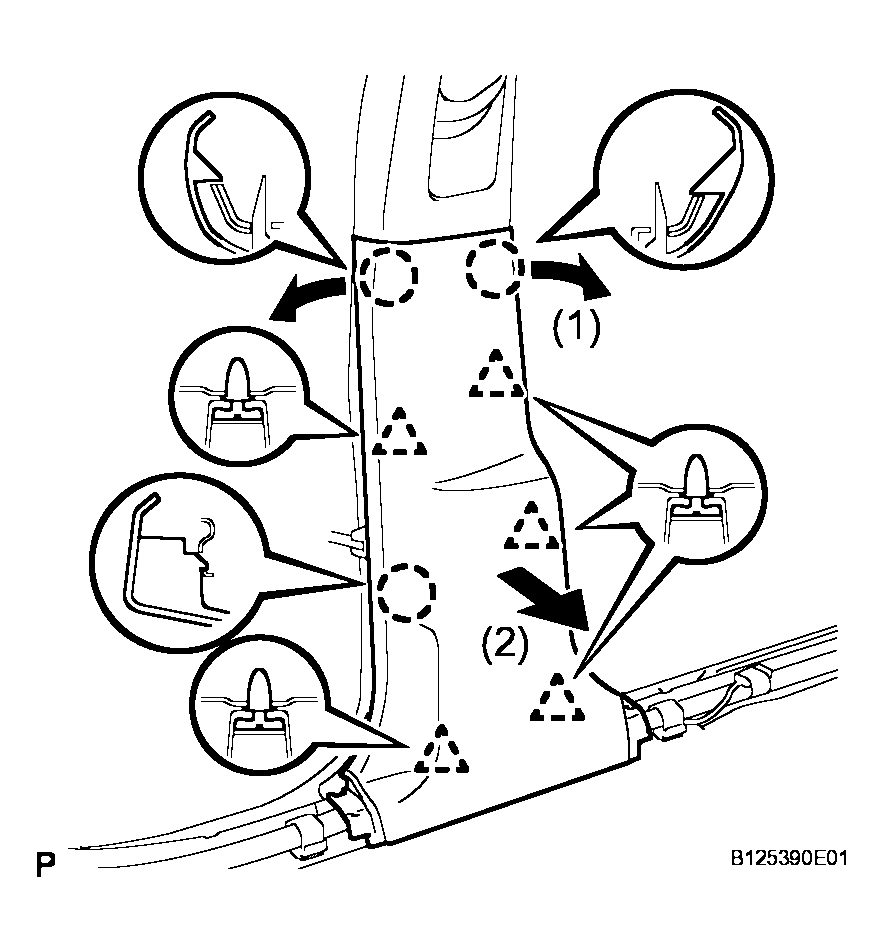

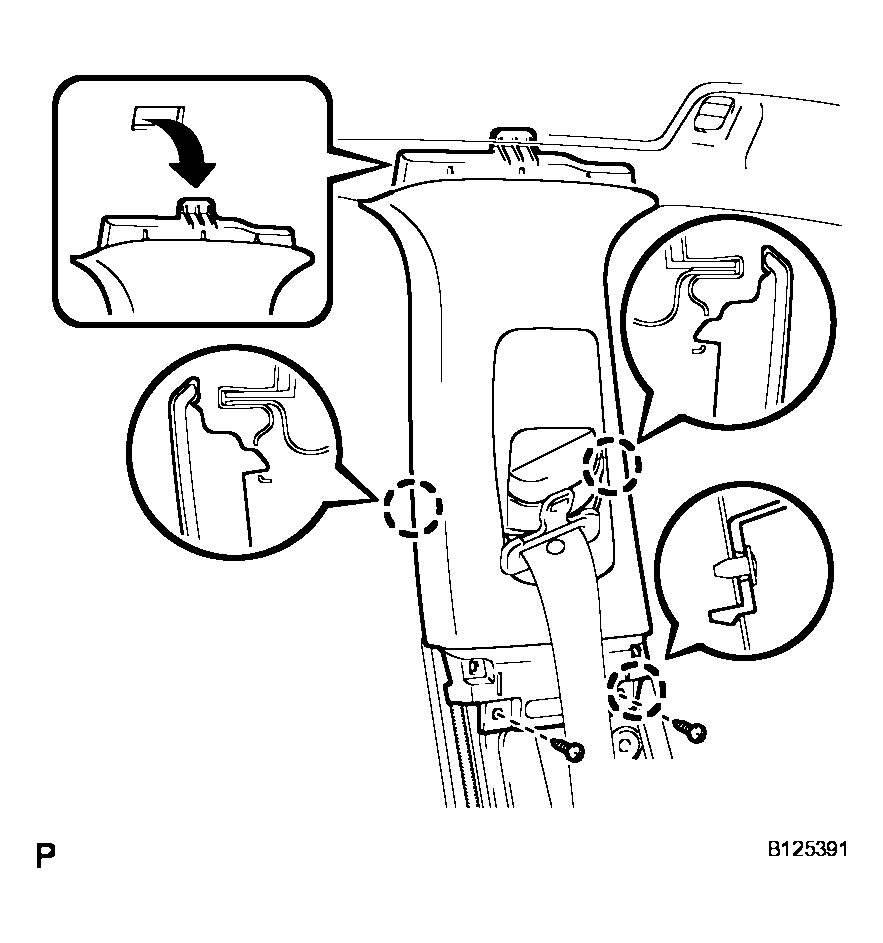

    Fig 13: Removing Center Pillar Garnish LH By Pulling
    G04051687Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  112. REMOVE REAR SEAT SIDE GARNISH LH
    1. Disengage the 5 claws and remove the rear seat side garnish LH.
  113. REMOVE REAR SEAT SIDE GARNISH RH

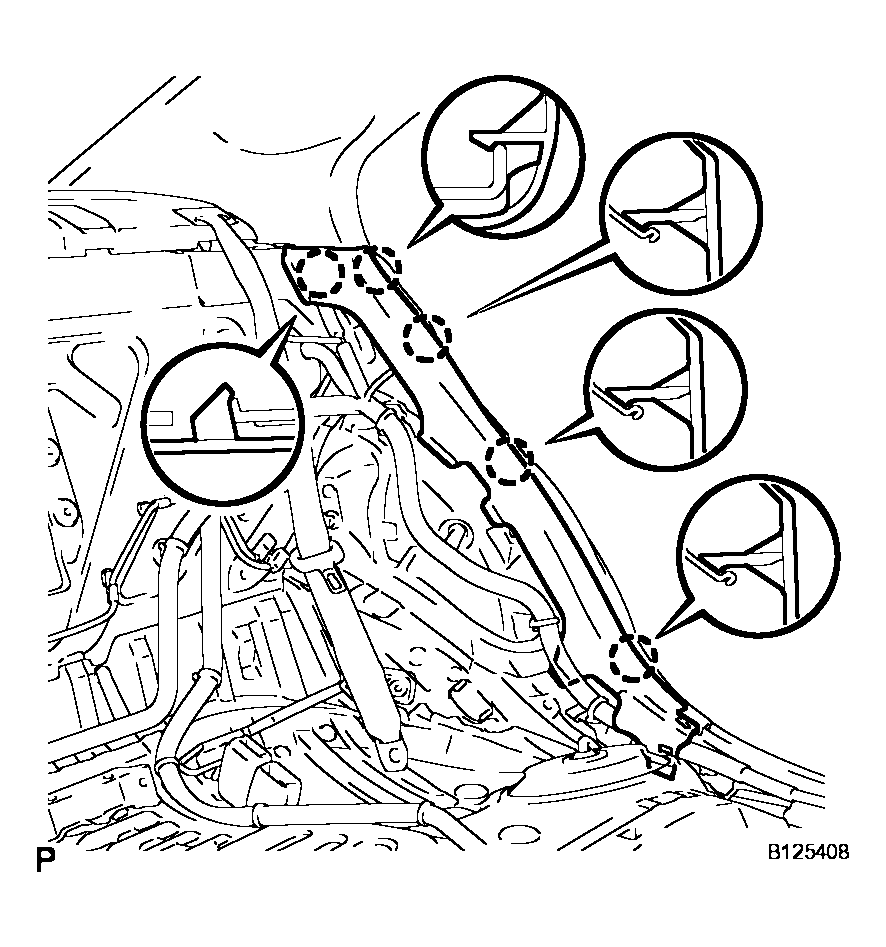

    Fig 14: Disengaging Claws & Removing Rear Seat Side Garnish LH
    G04051688Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  114. REMOVE ROOF SIDE INNER GARNISH LH
    1. Disengage the 4 clips and claw, and remove the roof side inner garnish LH.
  115. REMOVE ROOF SIDE INNER GARNISH RH

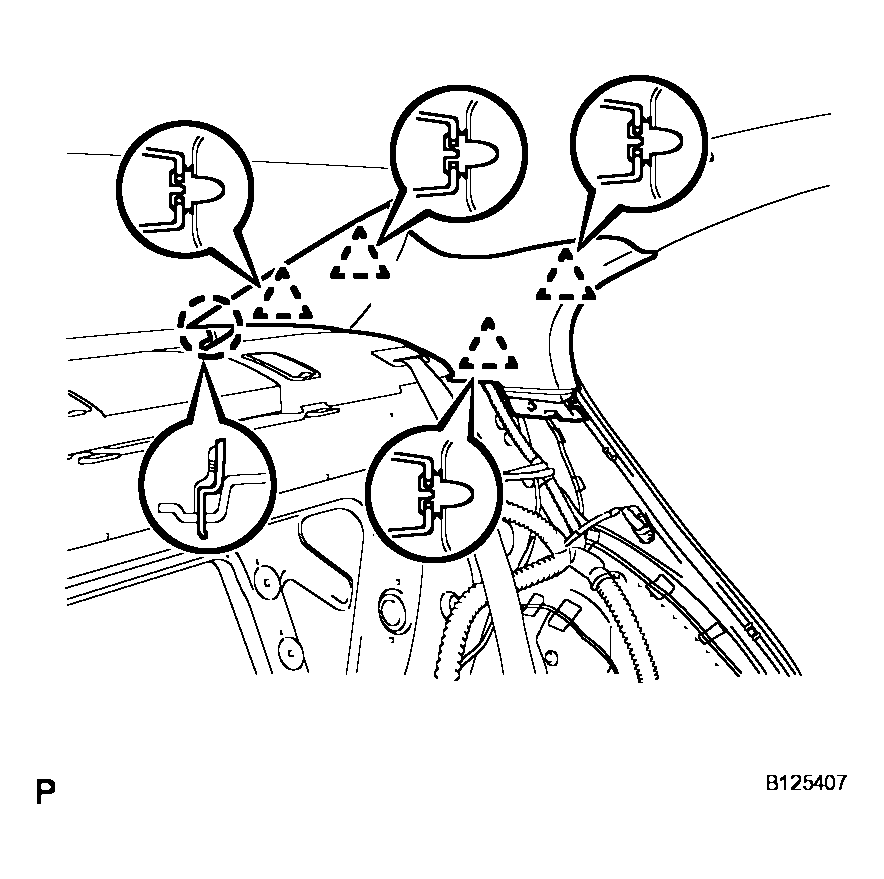

    Fig 15: Disengaging Clips, Claw & Removing Roof Side Inner Garnish LH
    G04051689Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  116. REMOVE INNER REAR VIEW MIRROR STAY HOLDER COVER (See  REMOVAL  )
  117. REMOVE RAIN SENSOR (See  REMOVAL  )
  118. REMOVE MAP LIGHT ASSEMBLY (w/o Sliding Roof)
    1. Using a screwdriver, disengage the 3 claws and open the cover.

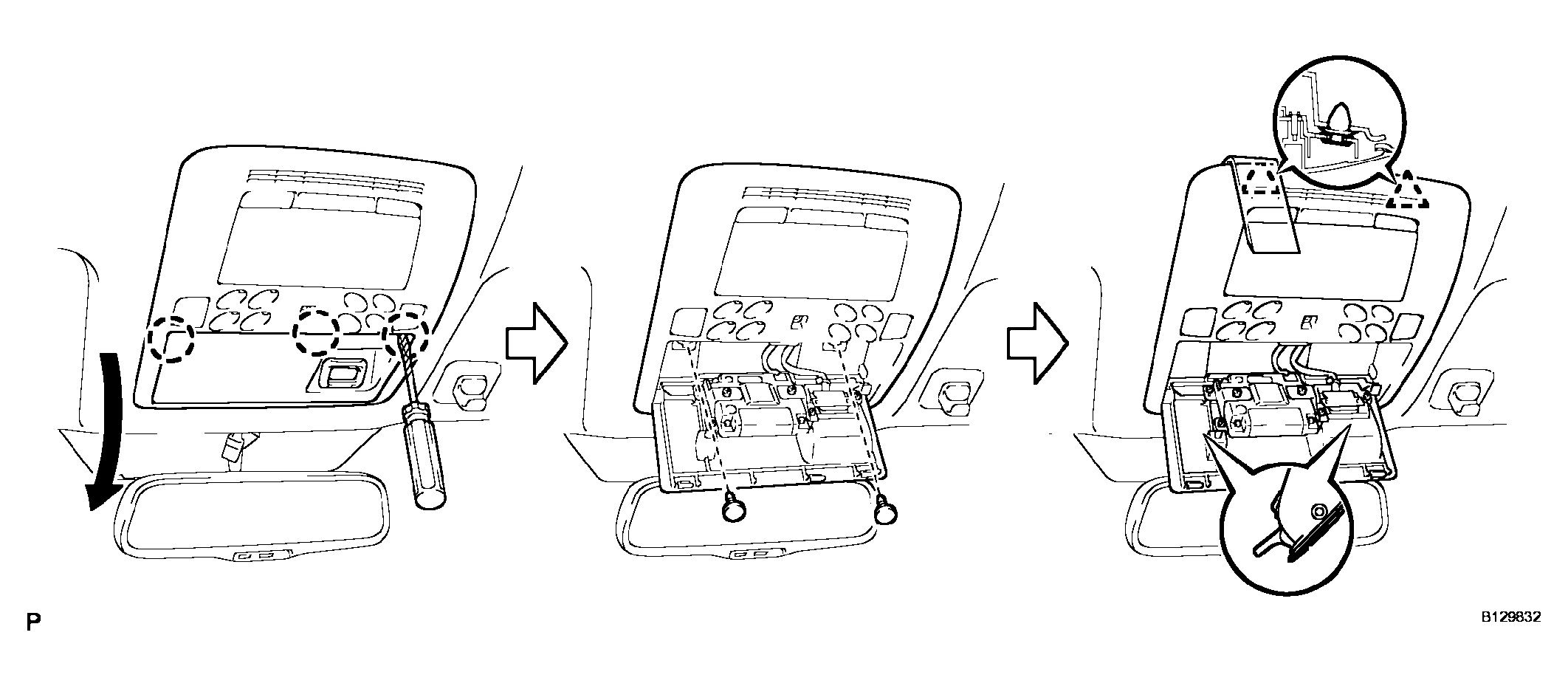

      Fig 16: Disengaging Claws (1 Of 2)
      G04051690Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws.
    3. Using a molding remover, disengage the 2 clips.
    4. Disconnect the connector. Remove the map light assembly.
  119. REMOVE MAP LIGHT ASSEMBLY (w/ Sliding Roof)
    1. Using a screwdriver, disengage the 3 claws and open the cover.

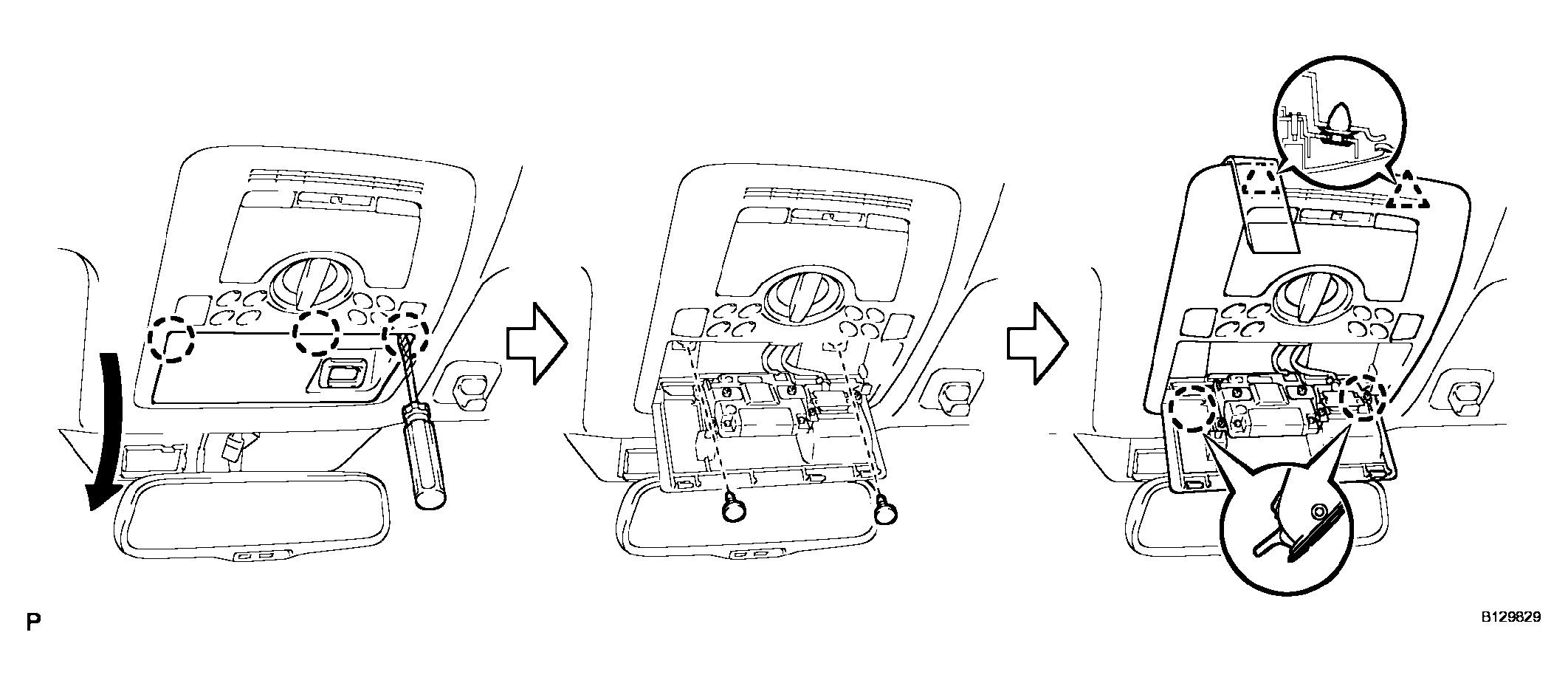

      Fig 17: Disengaging Claws (2 Of 2)
      G04051691Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws.
    3. Using a molding remover, disengage the 2 clips.
    4. Disconnect the connector. Remove the map light assembly.
  120. REMOVE SPOT LIGHT ASSEMBLY
    1. Using a molding remover, disengage the 2 clips.
    2. Disconnect the connector. Remove the spot light assembly.

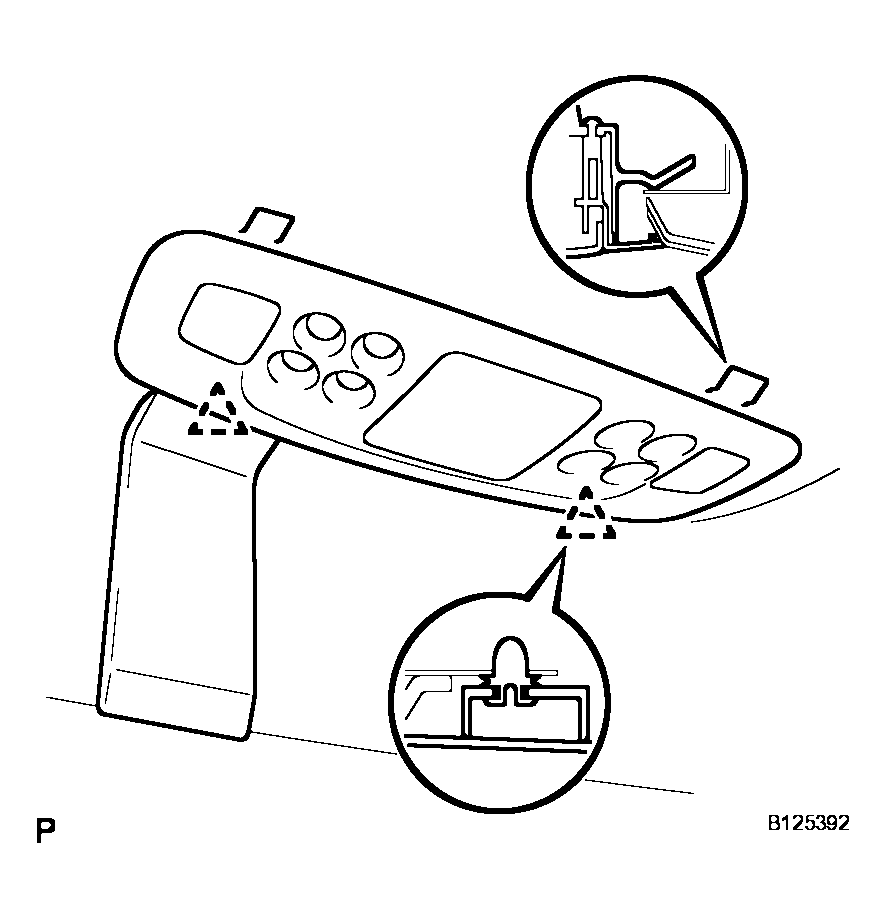

    Fig 18: Removing Spot Light Assembly
    G04051692Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  121. REMOVE COAT HOOK
    1. Remove the screw and coat hook.

      HINT:

      Use the same procedure to remove the hook on the other side.

    Fig 19: Removing Hook On Other Side
    G04051693Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  122. REMOVE ASSIST GRIP SUB-ASSEMBLY

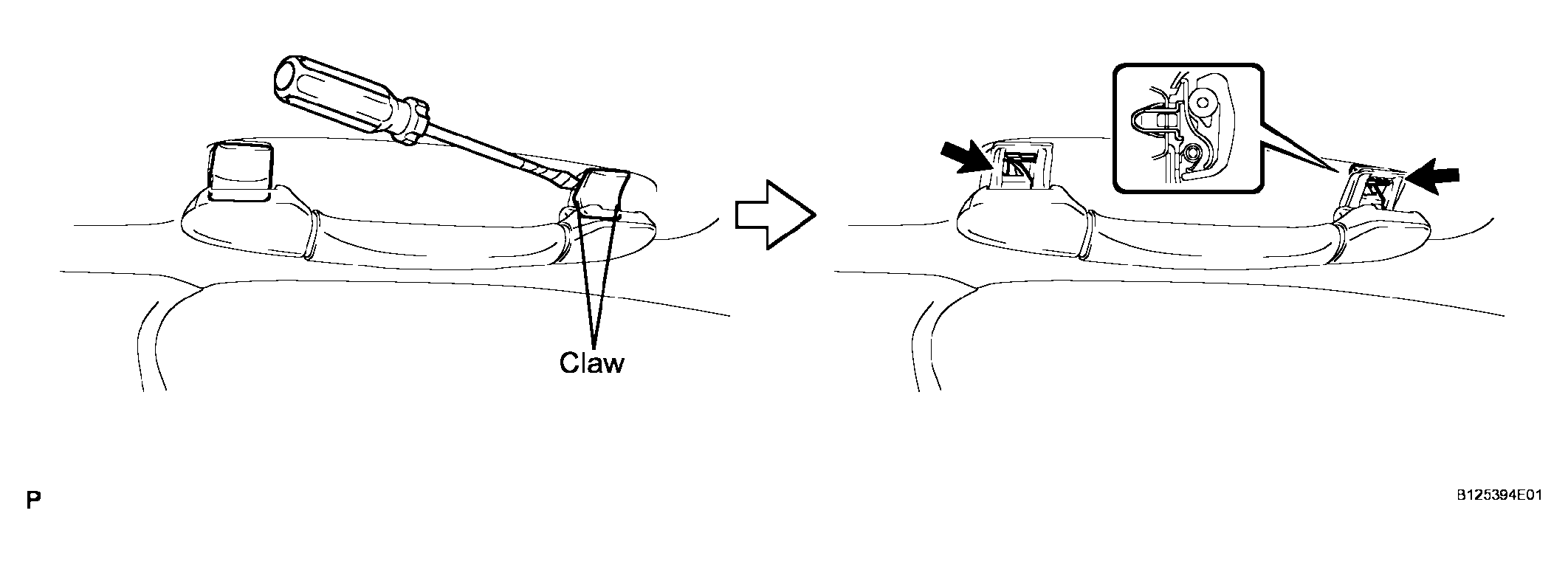

    1. Using a screwdriver, disengage the 4 claws and remove the 2 assist grip covers.
      Fig 20: Removing Assist Grip Covers
      G04051694Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Tape the screwdriver tip before use.

    2. Disengage the 2 clips and remove the assist grip sub-assembly.

      HINT:

      Use the same procedure for the other 3 assist grips.

  123. REMOVE VISOR BRACKET COVER
    1. Using a molding remover, disengage the 4 claws and remove the visor bracket cover.

      HINT:

      Use the same procedure to remove the cover on the other side.

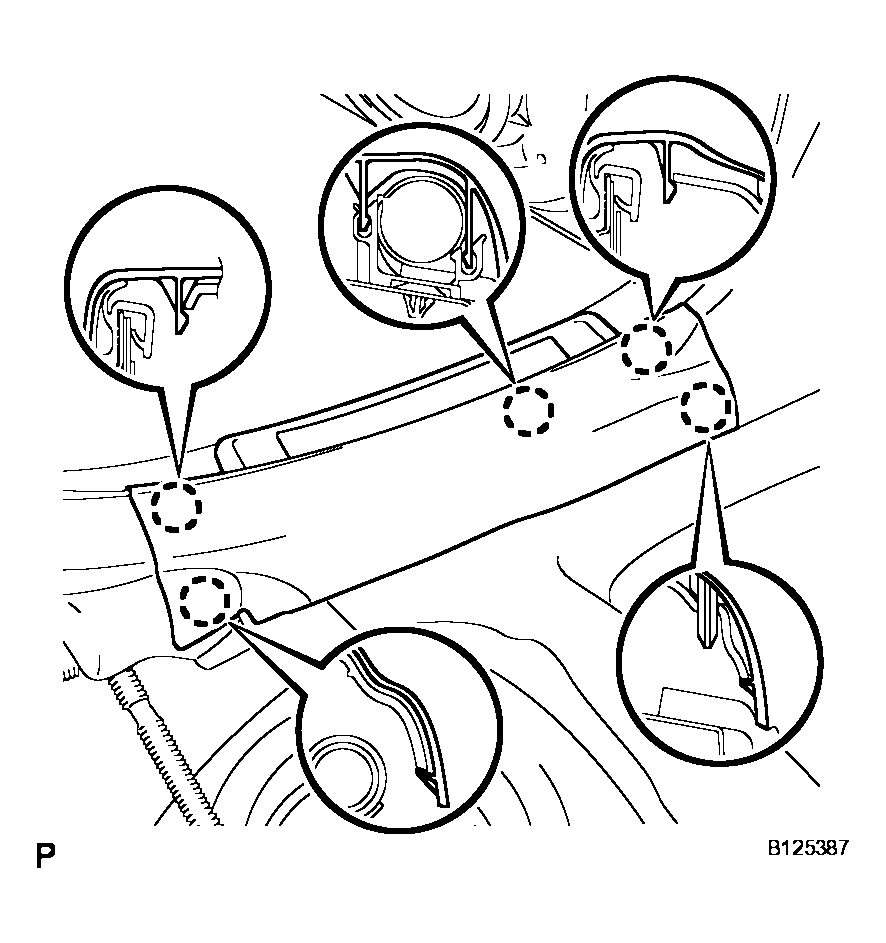

    Fig 21: Removing Visor Bracket Cover
    G04051695Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  124. REMOVE VISOR ASSEMBLY LH
    1. Remove the 2 screws and visor assembly LH.
  125. REMOVE VISOR ASSEMBLY RH
    Fig 22: Removing Screws & Visor Assembly LH
    G04051696Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  126. REMOVE VISOR HOLDER
    1. Remove the visor holder by turning it counterclockwise.

      HINT:

      Use the same procedure to remove the holder on the other side.

    Fig 23: Removing Visor Holder
    G04051697Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  127. REMOVE ROOF HEADLINING ASSEMBLY (w/o Sliding Roof)
    1. Disconnect the roof wire connector and disengage the each clamp from the front pillar LH.
    2. Disconnect each connector from the map light assembly.

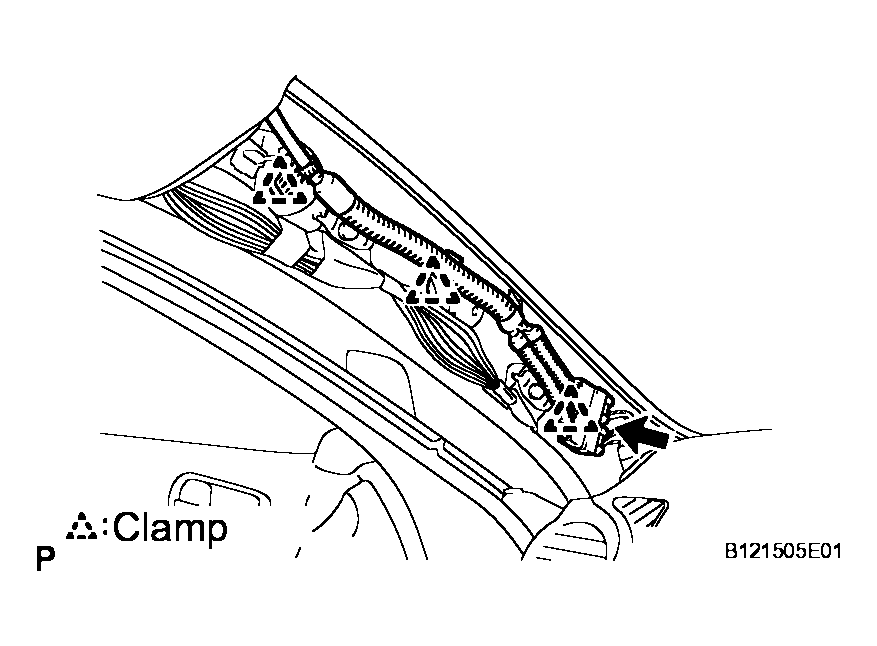

      Fig 24: Locating Harness Clamps
      G04051725Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the hook, 10 claws and 2 clips.

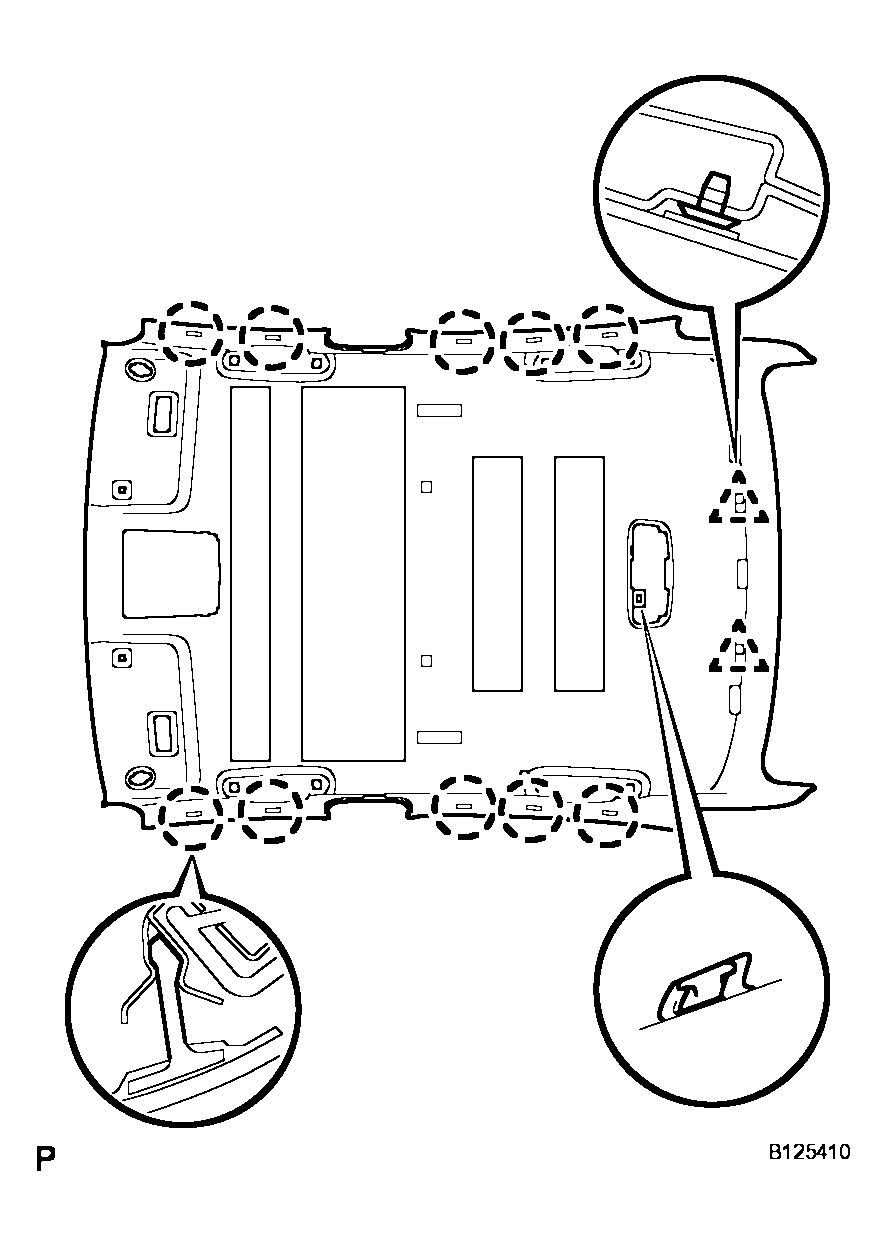

      Fig 25: Disengaging Hook, Claws & Clips
      G04051699Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the roof headlining assembly from the vehicle through the front right door.

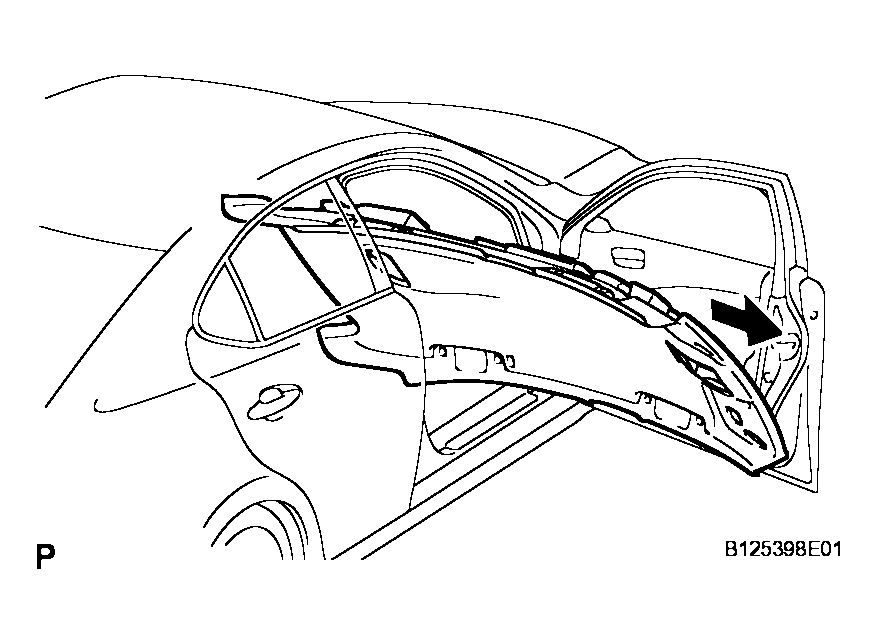

    Fig 26: Removing Roof Headlining Assembly
    G04051700Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  128. REMOVE ROOF HEADLINING ASSEMBLY (w/ Sliding Roof)
    1. Disconnect the roof wire connector and disengage each clamp from the front pillar LH.
    2. Disconnect each connector from the map light assembly.
      Fig 27: Locating Harness Clamps
      G04051725Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the hook, 10 claws, 8 fasteners and 2 clips.

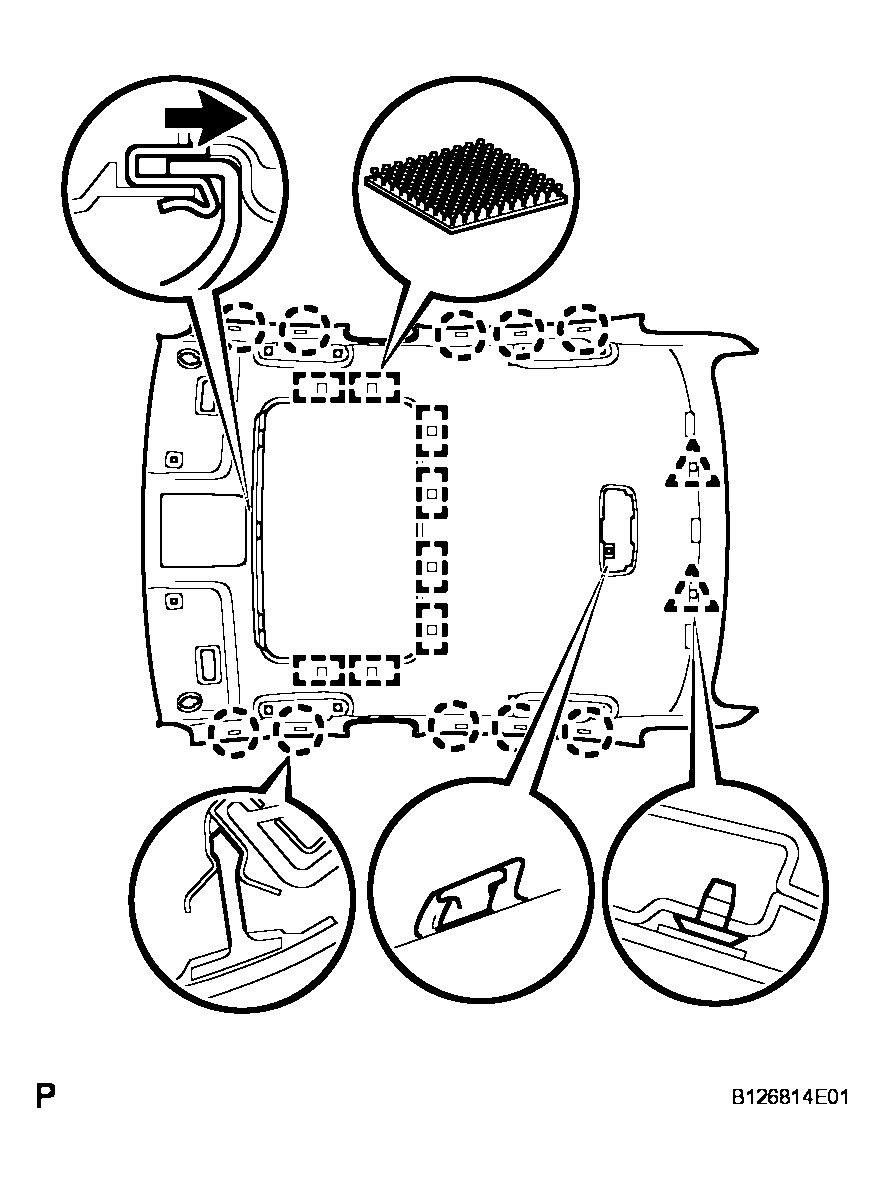

      Fig 28: Disengaging Hook, Claws, Fasteners And Clips
      G04051702Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the roof headlining assembly from the vehicle through the front right door.

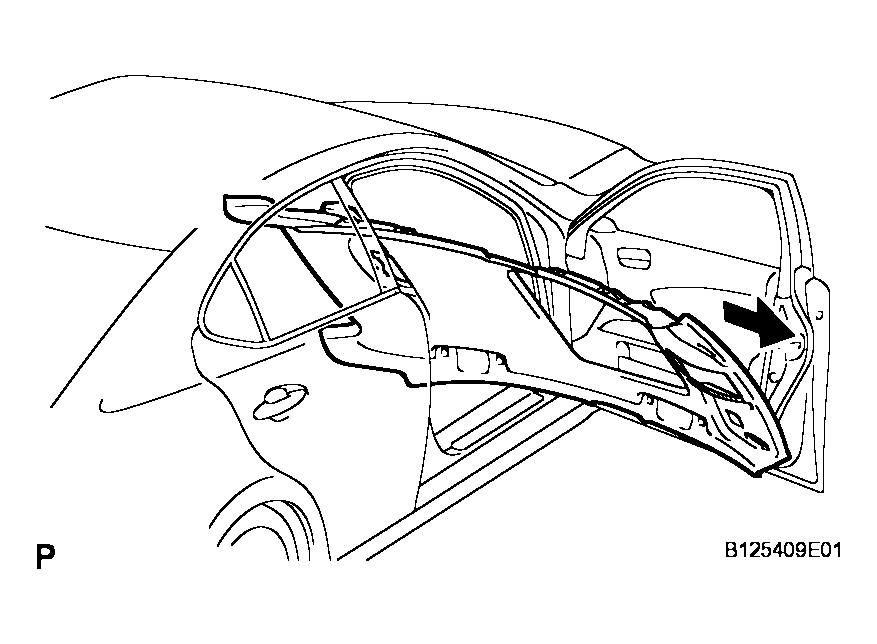

    Fig 29: Removing Roof Headlining Assembly
    G04051703Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  129. REMOVE ROOF SILENCER PAD (w/o Sliding Roof)
    1. Remove the roof silencer pad.
    Fig 30: Removing Roof Silencer Pad
    G04051704Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  130. REMOVE SIDE RAIL SPACER REAR (w/o Sliding Roof)
    1. Remove the side rail spacer rear.
    Fig 31: Removing Side Rail Spacer Rear
    G04051705Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  131. REMOVE ROOF HEADLINING PAD (w/o Sliding Roof)
    1. Remove the roof headlining pad.
    Fig 32: Removing Roof Headlining Pad
    G04051706Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  132. REMOVE SIDE RAIL SPACER REAR (w/ Sliding Roof)
    1. Remove the side rail spacer rear.
    Fig 33: Removing Side Rail Spacer Rear
    G04051707Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  133. REMOVE VANITY LIGHT ASSEMBLY
    1. Disengage the claw <A> and separate the bulb holder from the vanity light.
    2. Disengage the claw <B> and remove the vanity light assembly.

      HINT:

      Use the same procedure to remove the light on the other side.

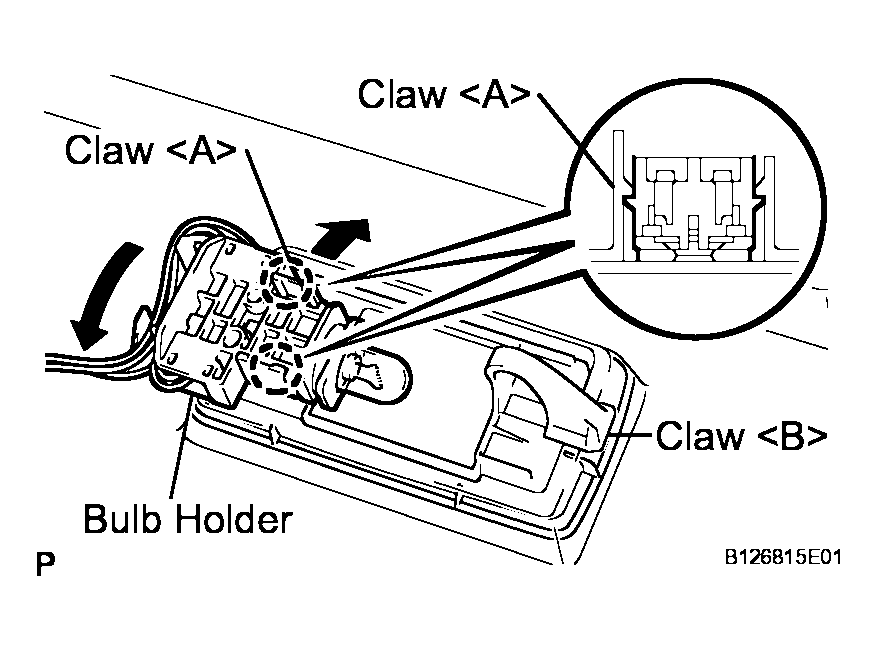

    Fig 34: Disengaging Claw & Separating Bulb Holder From Vanity Light
    G04051708Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  134. REMOVE NO. 1 ROOF WIRE
    1. Remove the double-sided tape and roof wire.
  135. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH
  136. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH
  137. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH
  138. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH
scientia non olet · About LEMON Manuals
