Shift Lever Assembly: Removal

  1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (See  REMOVAL  )
  2. REMOVE UPPER NO. 1 CONSOLE PANEL GARNISH (See  REMOVAL  )
  3. REMOVE UPPER NO. 2 CONSOLE PANEL GARNISH (See  REMOVAL  )
  4. REMOVE CONSOLE PANEL SUB-ASSEMBLY (See  REMOVAL  )
  5. REMOVE FRONT ASH RECEPTACLE SUBASSEMBLY (See  REMOVAL  )
  6. REMOVE CONSOLE BOX REGISTER ASSEMBLY (See  REMOVAL  )
  7. REMOVE CONSOLE BOX (See  REMOVAL  )
  8. REMOVE NO. 2 CONSOLE BOX DUCT (See  REMOVAL  )
  9. REMOVE NO. 1 REAR FLOOR PANEL BRACE (See  REMOVAL  )
  10. REMOVE FRONT CENTER FLOOR BRACE (See  REMOVAL  )
  11. REMOVE OXYGEN SENSOR (See  REMOVAL  )
  12. REMOVE FRONT EXHAUST PIPE ASSEMBLY (See  REMOVAL  )
  13. REMOVE FRONT FLOOR NO. 1 HEAT INSULATOR (See  REMOVAL  )
  14. REMOVE FLOOR SHIFT GEAR SHIFTING ROD SUBASSEMBLY
    1. Remove the nut and separate the floor shift gear shifting rod sub-assembly.

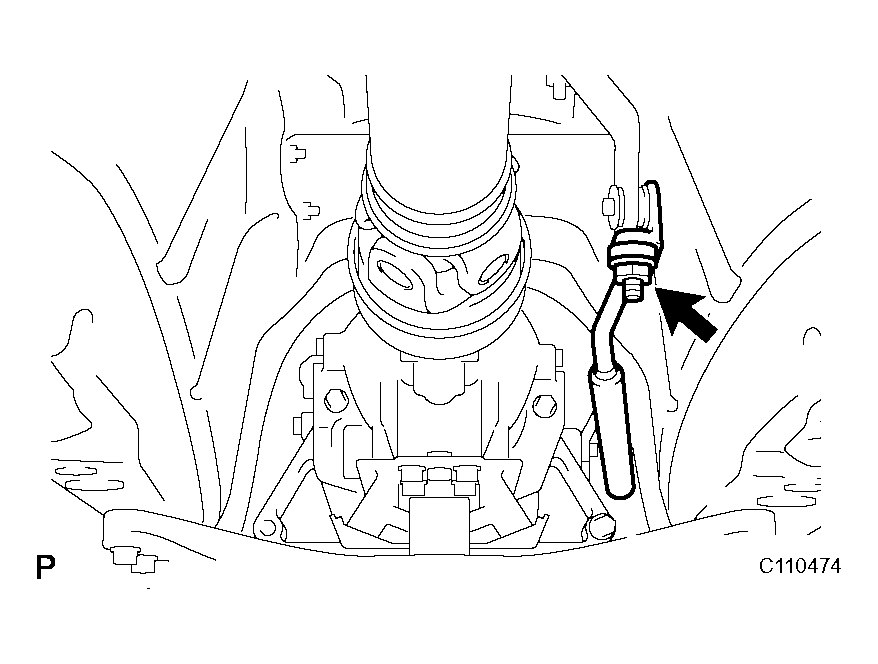

    Fig 1: Identifying Floor Shift Gear Shifting Rod Sub-Assembly
    G04045921Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE TRANSMISSION FLOOR SHIFT ASSEMBLY
    1. Disconnect the 2 connectors.
    2. Remove the 4 bolts.
    3. Remove the floor shift assembly.

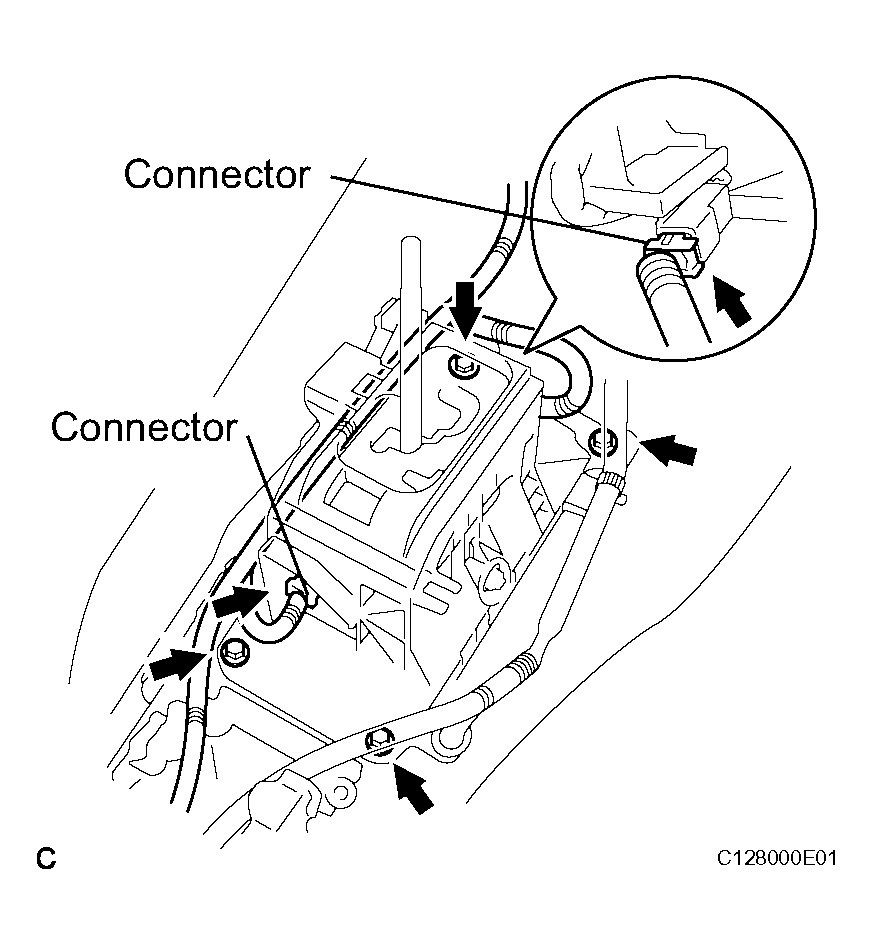

    Fig 2: Identifying Floor Shift Assembly
    G04045922Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
