Front Passenger Side Knee Airbag Assembly: Removal

  1. PRECAUTION
    CAUTION: Be sure to read "PRECAUTION " thoroughly before servicing (See AIRBAG SYSTEM  ).
  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE: Wait for 90 seconds after disconnecting the cable to prevent airbag deployment.
  3. REMOVE FRONT DOOR SCUFF PLATE (w/o Illumination) (See  REMOVAL  )
  4. REMOVE FRONT DOOR SCUFF PLATE (w/ Illumination) (See  REMOVAL  )
  5. REMOVE FRONT DOOR OPENING TRIM COVER (See  REMOVAL  )
  6. REMOVE INSTRUMENT SIDE PANEL (See  REMOVAL  )
  7. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (See  REMOVAL  )
  8. REMOVE FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY
    1. Remove the 3 bolts and front passenger side knee airbag assembly.
    2. Disconnect the connector.
    NOTE: When handling the airbag connector, take care not to damage the airbag wire harness.

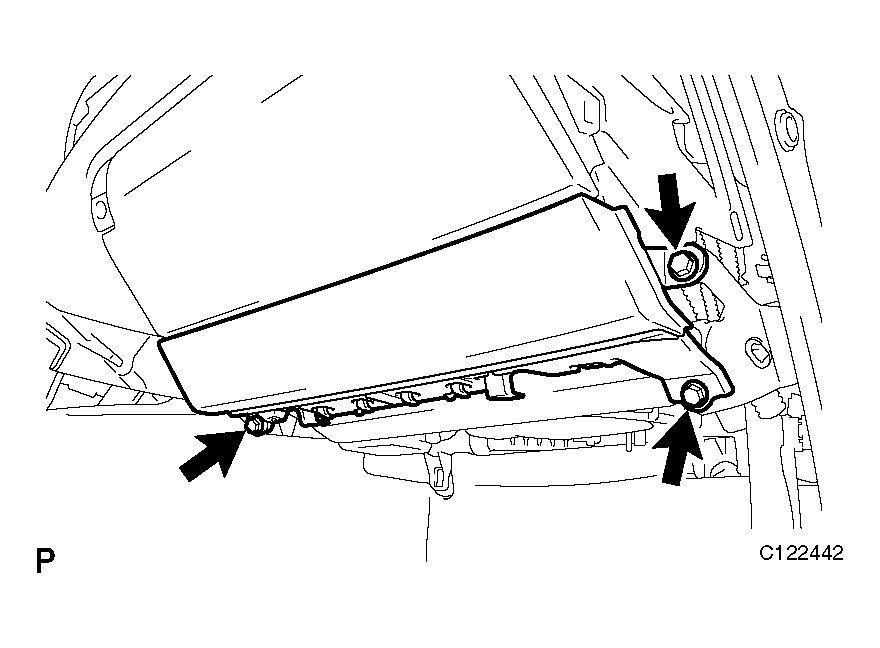

    Fig 1: Identifying Front Passenger Side Knee Airbag Assembly
    G04048837Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
