Rear Seat Assembly: Removal

REMOVE REAR SEAT CUSHION ASSEMBLY

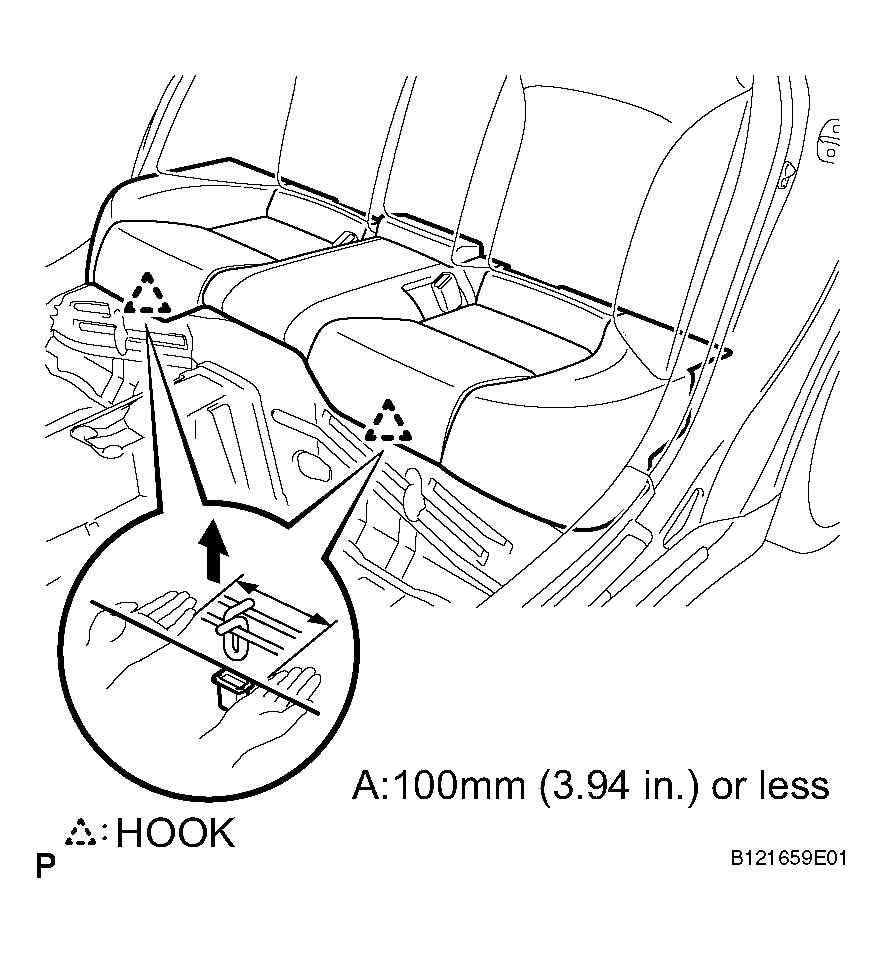

1. Detach the 2 front hooks of the seat cushion from the vehicle body.
  NOTE: Follow the instructions below carefully as the cushion frame deforms easily.
  1. Choose a hook to detach first. Place your hands near the hook as shown in the illustration. Then lift the seat cushion to detach the hook.
  2. Repeat for the other hook.
2. Detach the 2 rear hooks of the seat cushion from the seatback.
3. Remove the seat cushion.
Fig 1: Removing Rear Hooks Of Seat Cushion From Seatback
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR SEAT HEADREST ASSEMBLY
REMOVE REAR CENTER SEAT HEADREST ASSEMBLY
REMOVE REAR SEATBACK ASSEMBLY
1. Using a screwdriver, detach the claws to open the cap of the 3 rear seat shoulder belt guides.

  Fig 2: Detaching Claws To Open Cap Of 3 Rear Seat Shoulder Belt Guides
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a screwdriver, detach the claw to open the cap of the 3 rear seat shoulder belt guides.

  Fig 3: Detaching Claw To Open Cap Of 3 Rear Seat Shoulder Belt Guides
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

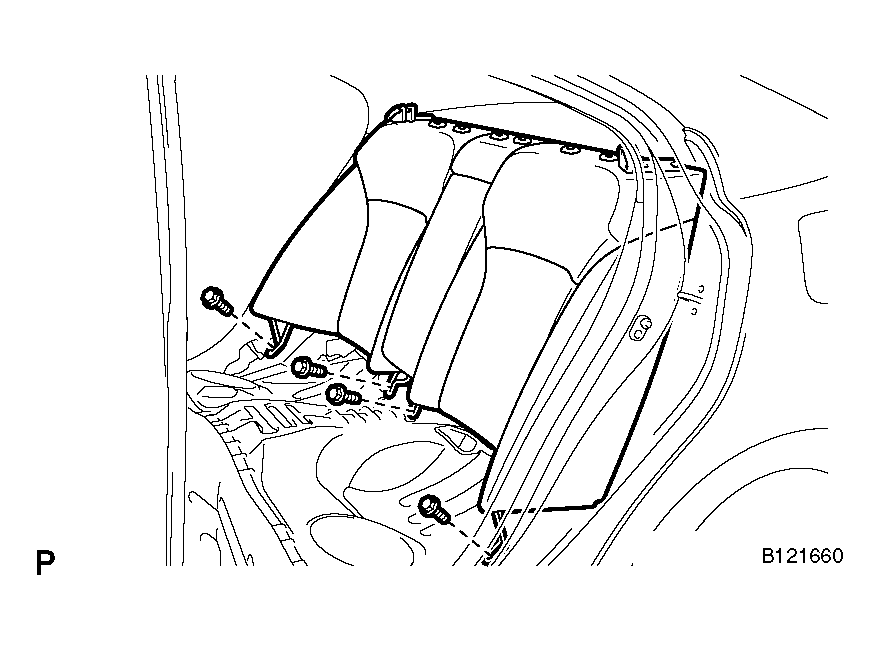

3. Remove the 4 bolts and rear seatback assembly.
Fig 4: Identifying Bolts And Rear Seatback Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
