Exhaust (4GR-FSE): Removal

CAUTION:
  • Wear protective gloves when removing the exhaust pipe.
  • The exhaust pipe is extremely hot immediately after the engine has stopped.
  • Confirm that the exhaust pipe has cooled down before removing it.
  1. REMOVE REAR NO. 1 FLOOR PANEL BRACE
    1. Remove the 4 bolts and rear No. 1 floor panel brace.
      2. Fig 1: Locating Rear No. 1 Floor Panel Brace
      G00437579Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE FRONT CENTER FLOOR BRACE
    1. Remove the 4 bolts and front center floor brace .
      2. Fig 2: Locating Front Center Floor Brace
      G00437580Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. DISCONNECT HEATED OXYGEN SENSOR (for 2WD)
    1. Remove the grommets of the heated oxygen sensors (BANK 1, BANK 2).
      2. Fig 3: Locating Heated Oxygen Sensor Grommets
      G00437581Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using the SST, remove a oxygen sensors (BANK 1, BANK 2). SST: 09224-00010
      3. Fig 4: Removing Oxygen Sensors
      G00437582Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. DISCONNECT HEATED OXYGEN SENSOR (for 4WD)
    1. Remove the grommets of the heated oxygen sensors (BANK 1, BANK 2) and 2 clips.

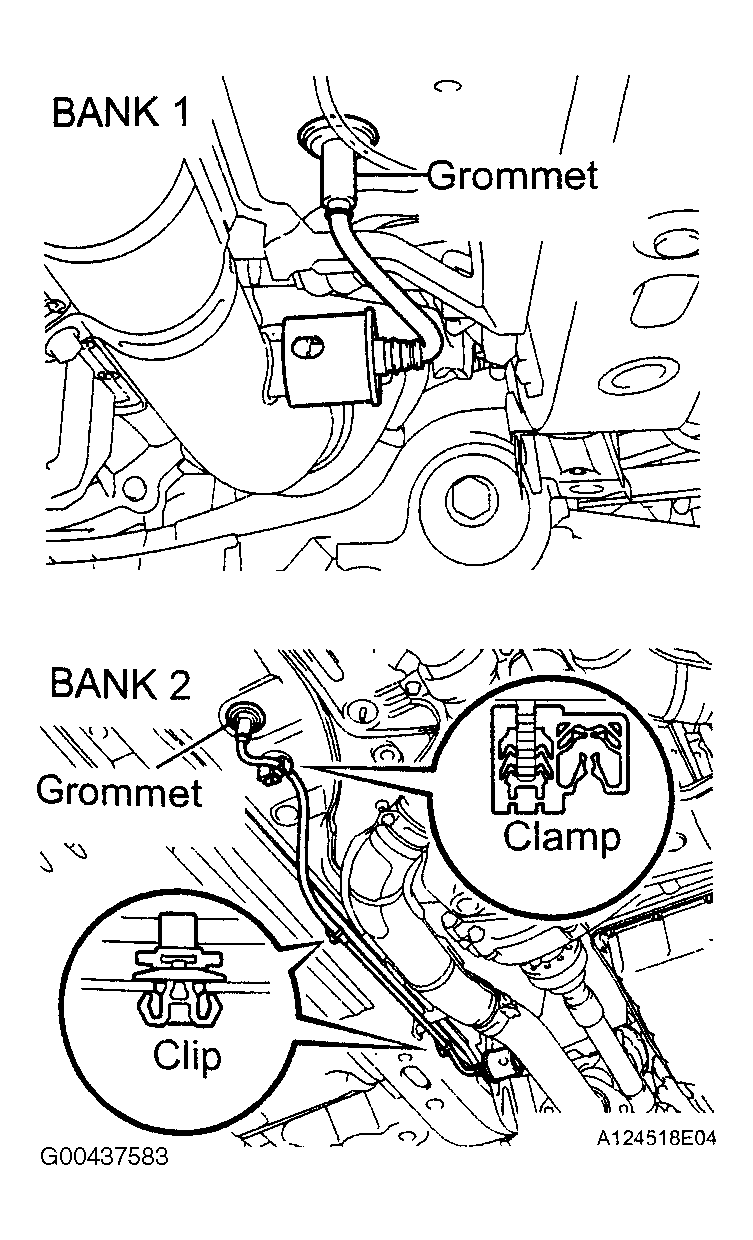

      2. Fig 5: Locating Heated Oxygen Sensors (4WD)
      G00437583Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using the SST, remove the heated oxygen sensors (BANK 1, BANK 2). SST: 09224-00010

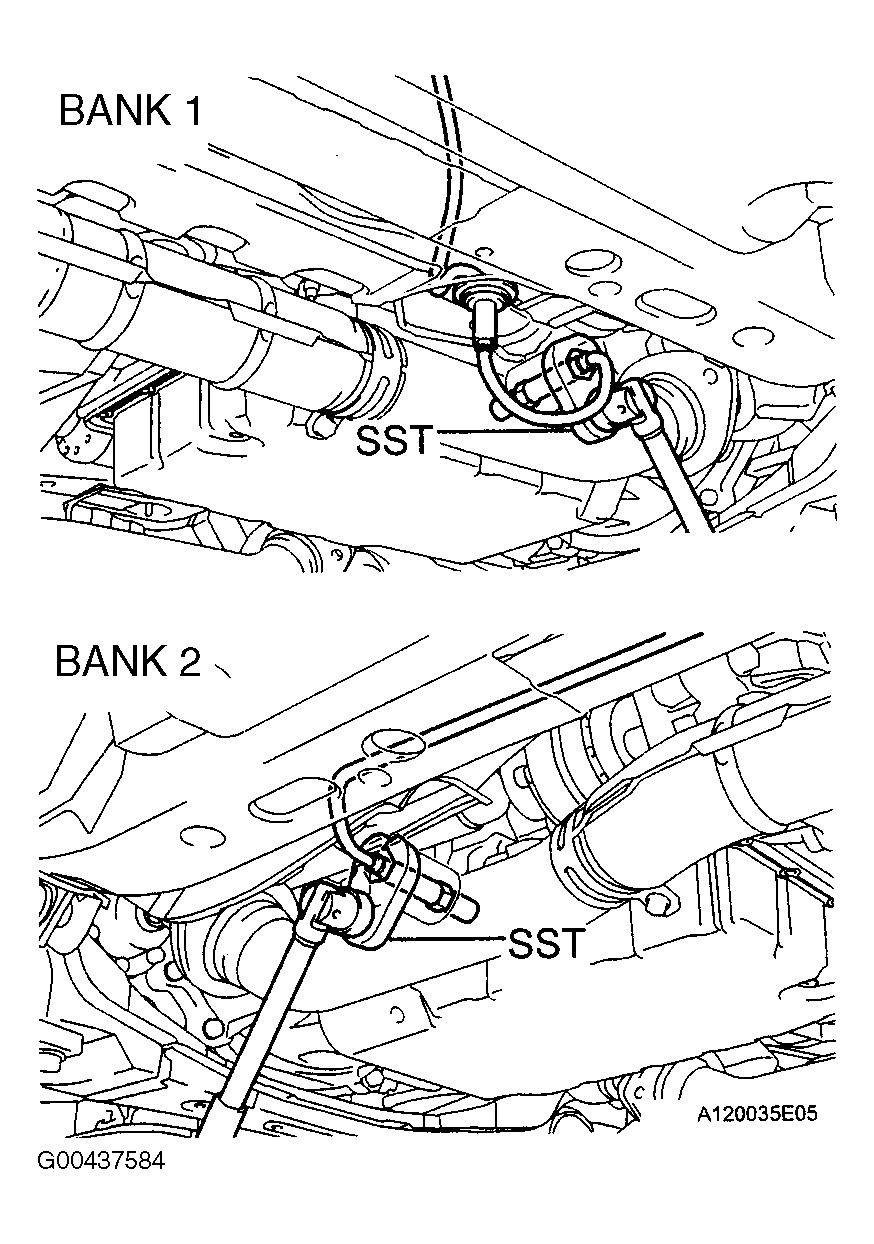

      3. Fig 6: Removing Heated Oxygen Sensors (4WD)
      G00437584Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE FRONT EXHAUST PIPE ASSEMBLY
    1. Remove the 4 bolts and 4 nuts.

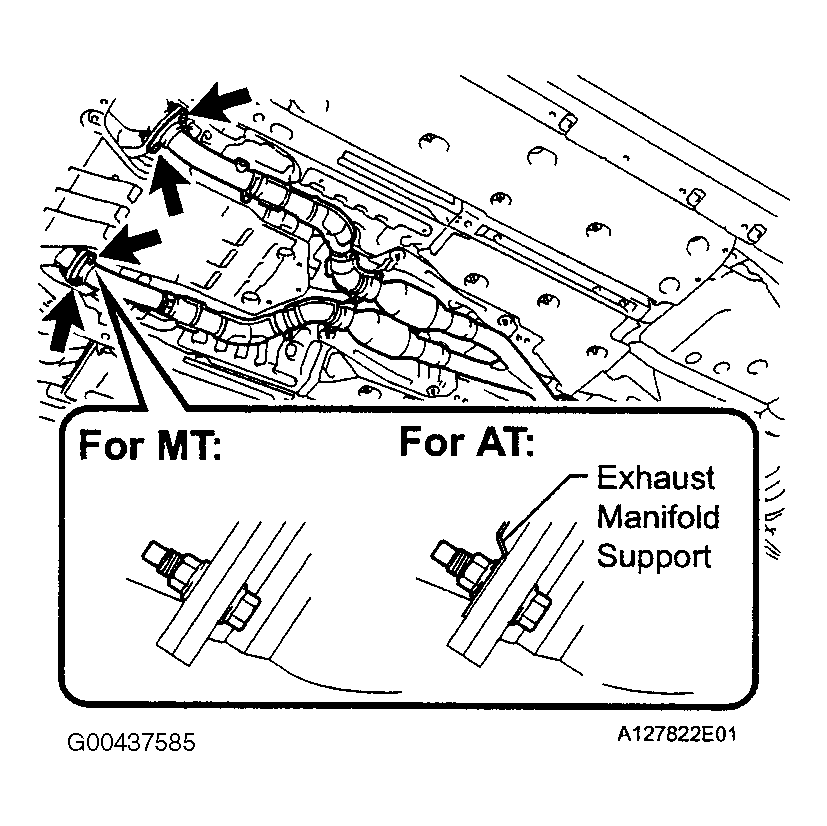

      2. Fig 7: Locating Exhaust Pipe Bolts
      G00437585Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts and 2 compression springs from the tail exhaust pipe assembly.
      3. Fig 8: Locating Exhaust Pipe Compression Springs
      G00437586Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the front exhaust pipe assembly and 3 gaskets.
  6. REMOVE TAIL EXHAUST PIPE ASSEMBLY
    1. Disconnect the 6 exhaust pipe supports to remove the tail exhaust pipe assembly.
      2. Fig 9: Locating Tail Exhaust Pipe Assembly
      G00437587Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE EXHAUST PIPE DAMPER
    1. Remove the 2 bolts and exhaust pipe damper.
      2. Fig 10: Locating Exhaust Pipe Damper
      G00437588Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE TAIL EXHAUST PIPE BAFFLE SUB-ASSEMBLY
    1. Using a plastic hammer, uniformly tap off the exhaust pipe baffle sub-assembies.
      2. Fig 11: Removing Tail Exhaust Pipe Baffle
      G00437589Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
